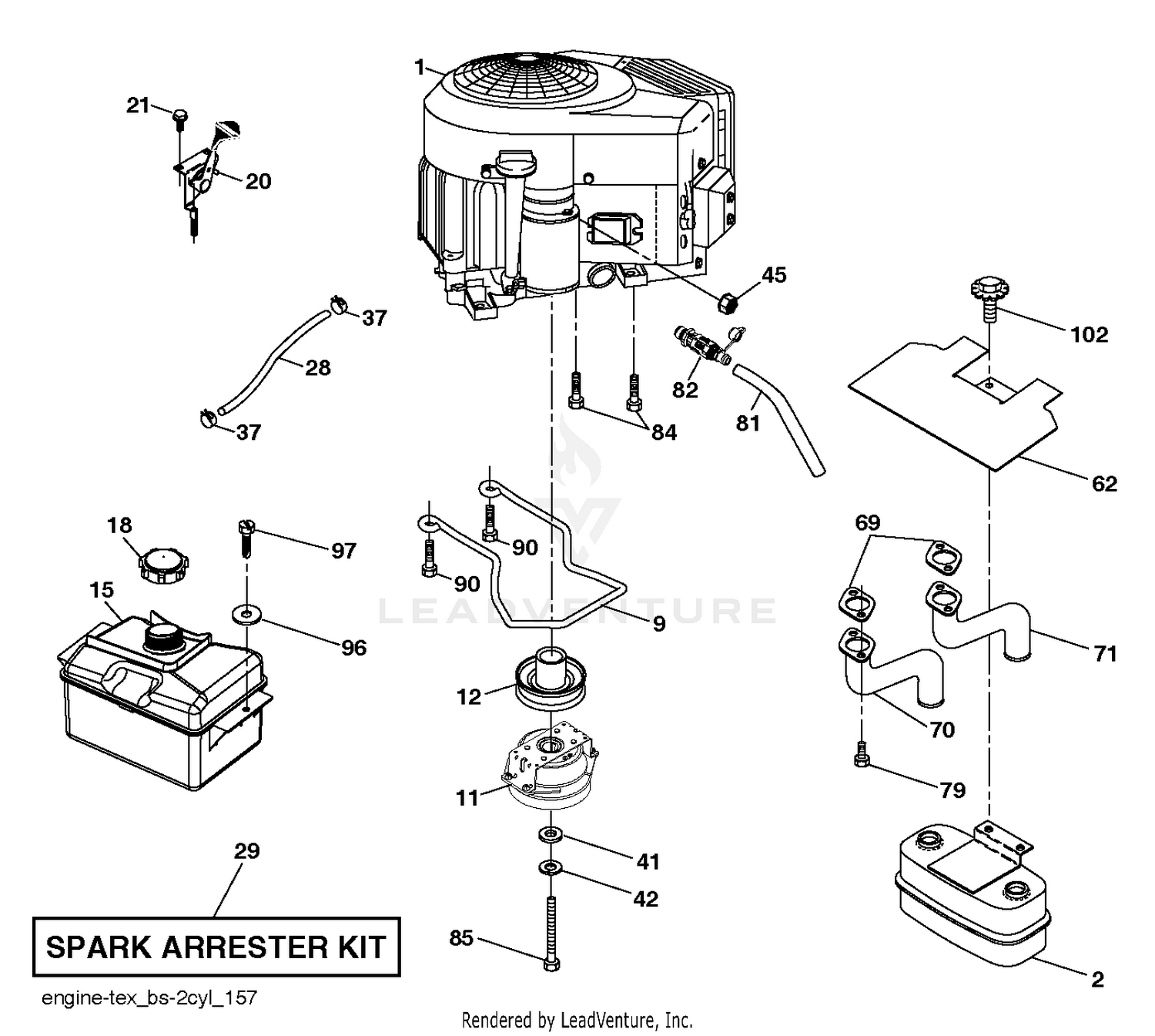

| Ref | Part Number | Description |
|---|
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 589818701. Price: $44.99 |
| 9 |
596501502 |
Keepers This part replaces 501832602. Price: $9.99 |
| 11 |
587241601 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 Price: $229.99 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 15 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA Price: $99.99 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 20 |
587242504 |
THROTTLE CABLE This part replaces 587242501. Price: $32.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 23 |
808128 |
Flywheel Price: Call Us |
| 28 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK Price: $22.99 |
| 73 |
494439 |
Screen-Rotating Price: Call Us |
| 78 |
805447 |
Screw Price: Call Us |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 332 |
806028 |
Nut-Hex. Price: Call Us |
| 333 |
492341 |
Armature-Magneto Price: Call Us |
| 334 |
805407 |
Screw-HH Price: Call Us |
| 353 |
92791 |
Washer-Lock Price: Call Us |
| 354 |
90576 |
Nut Price: Call Us |
| 356 |
493792 |
Wire-Stop Price: Call Us |
| 363 |
19203 |
Puller-Flywheel Price: Call Us |
| 474 |
393295 |
Alternator Price: Call Us |
| 501 |
394890 |
Regulator Price: Call Us |
| 507 |
398525 |
Insulator Price: Call Us |
| 520 |
93722 |
Terminal Price: Call Us |
| 526 |
805448 |
Screw Price: Call Us |
| 529 |
805641 |
Grommet Price: Call Us |
| 726 |
808162 |
Flywheel Ring Gear (Includes Hardware) Price: Call Us |
| 729 |
280470 |
Clip-Wire Price: Call Us |
| 851 |
493880 |
Terminal-Spark Plug Price: Call Us |
| 877 |
393537 |
Connector-Wire, Tri Circuit Price: Call Us |
