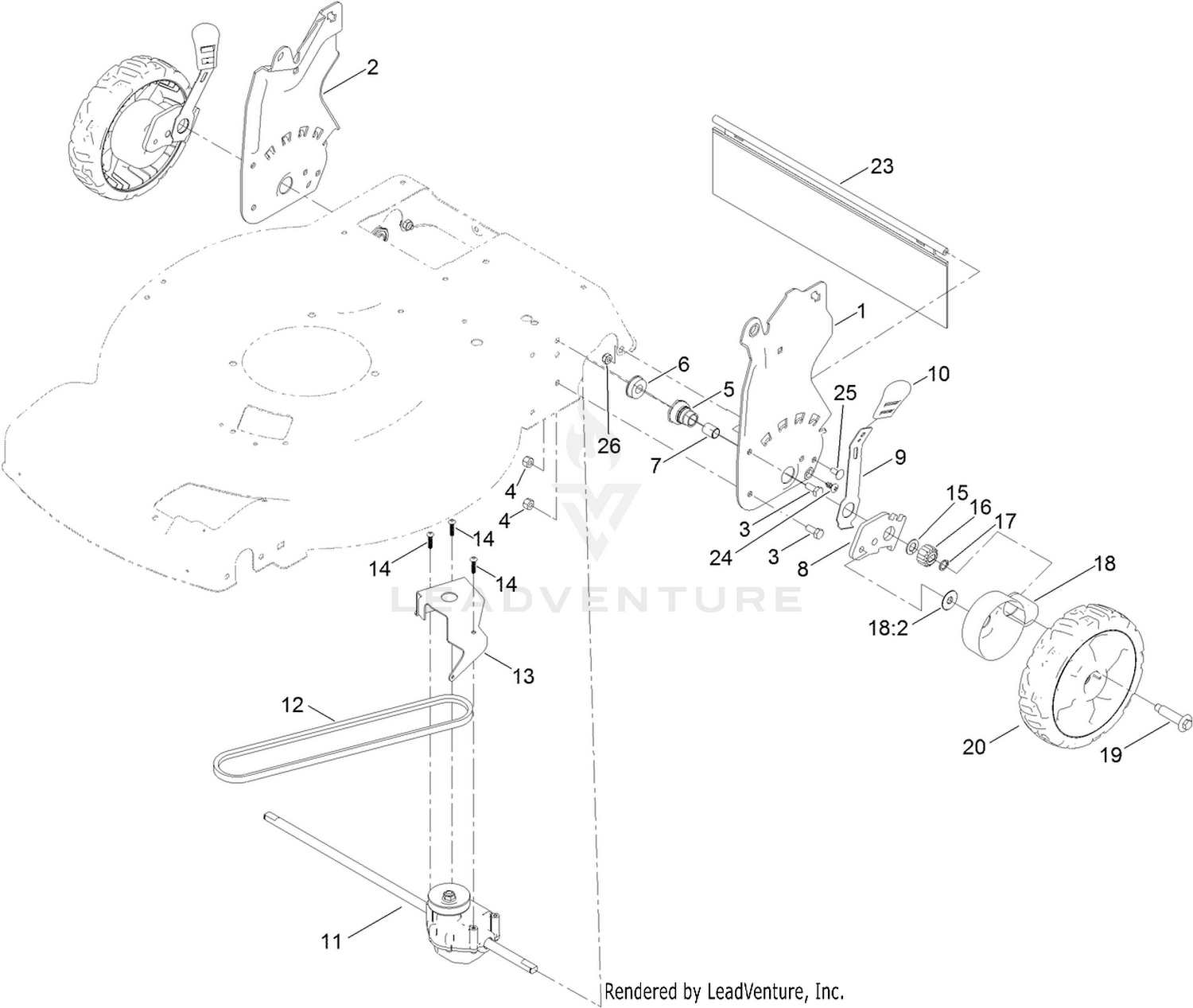

| Ref | Part Number | Description |
|---|
| 1 |
131-9693-03 |
PLATE-HOC, LH Price: $20.99 |
| 2 |
131-9694-03 |
PLATE-HOC, RH Price: $20.99 |
| 3 |
137-3052 |
SCREW-HH Price: $0.39 |
| 4 |
119-4038 |
NUT-HEX Price: $0.31 |
| 5 |
108-9779 |
RETAINER-BUSHING, HOC Price: $12.99 |
| 6 |
104-8699 |
BEARING-BALL Price: $4.39 |
| 7 |
108-9782 |
BUSHING-SLEEVE Price: $3.29 |
| 8 |
136-9090 |
ARM-PIVOT, REAR Price: $11.99 |
| 9 |
108-9780 |
ARM-SPRING Price: $9.99 |
| 10 |
110-0549 |
KNOB-HOC Price: $0.99 |
| 11 |
121-9178 |
TRANSMISSION ASM Price: $111.99 |
| 12 |
115-4669 |
BELT-V Price: $18.99 |
| 13 |
114-7977-03 |
BRACKET-TRANSMISSION Price: $12.99 |
| 14 |
120-9676 |
SCREW-PLASTITE Price: Call Us |
| 15 |
110-7191 |
WASHER-THRUST Price: $1.79 |
| 16 |
131-5399 |
GEAR-PINION, 15T Price: $4.79 |
| 17 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 18 |
136-9057 |
GEAR COVER ASM Price: $5.69 |
| 19 |
614650 |
BOLT-SHOULDER Price: $3.99 |
| 20 |
130-6714 |
WHEEL GEAR ASM, 8IN Price: $31.99 |
| 23 |
139-6604 |
SHIELD-TRAILING This part replaces 120-7012. Price: $15.99 |
| 24 |
139-1692 |
SCREW-THD Price: $0.39 |
| 25 |
100-1445 |
BOLT-CARR Price: $0.39 |
