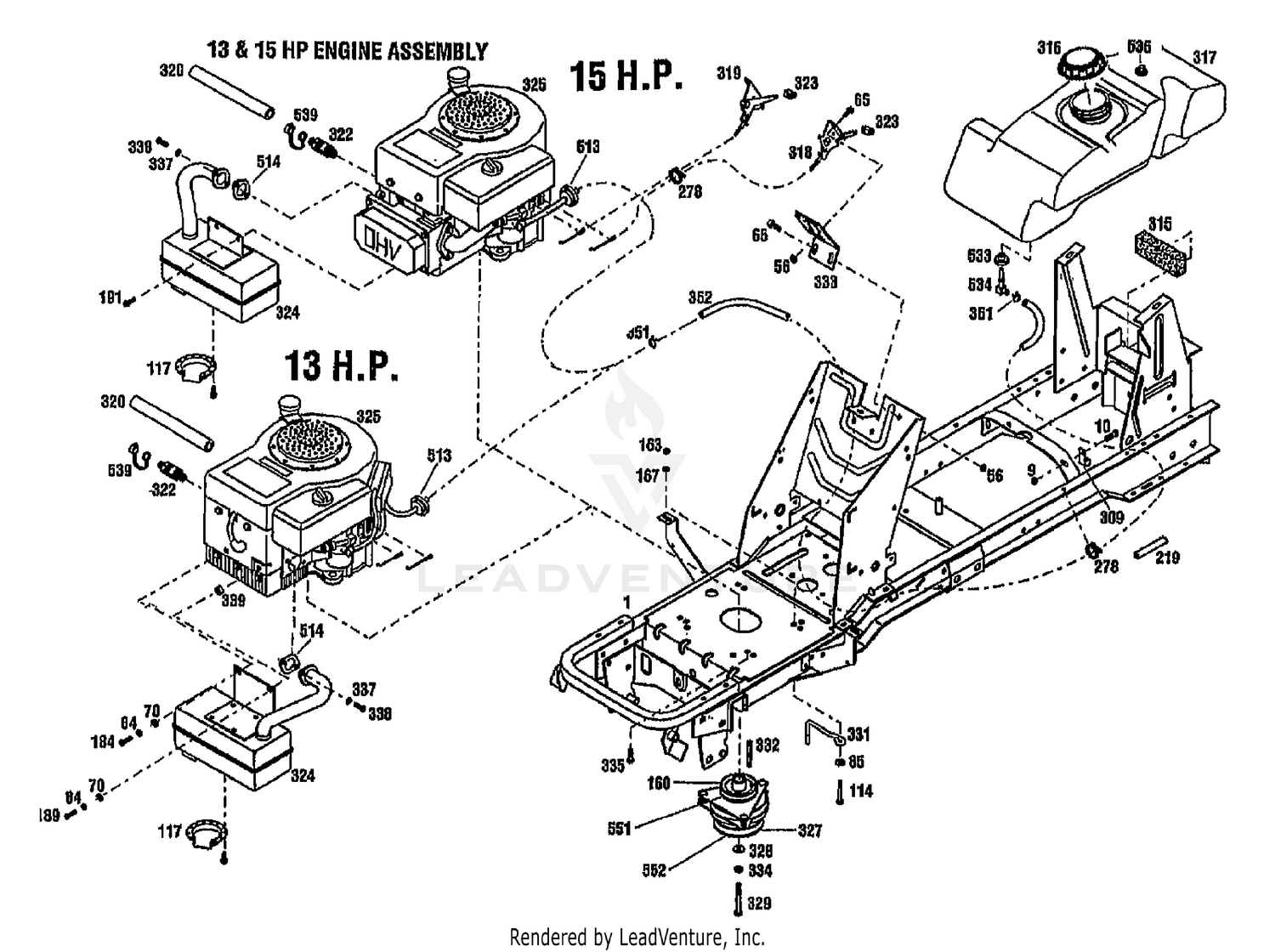

| Ref | Part Number | Description |
|---|
| 1 |
1772924001 |
FRAME BLACK Not Available This part replaces 1765435001. Price: |
| 9 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 10 |
1100044 |
SCR-HHC 5/16-18X.75 GR 5 ZP Price: $3.76 |
| 56 |
1186389 |
NUT-HF/LK 1/4-20 ZP Price: $3.05 |
| 65 |
1186309 |
SCREW-FLANGE Not Available Price: |
| 70 |
736-3020 |
Flat Washer .271 ID x .630 OD This part replaces 1107381. Price: $5.94 |
| 84 |
936-0329 |
Lock Washer This part replaces 1100241. Price: $3.90 |
| 85 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 1107383. Price: $3.90 |
| 114 |
710-1007 |
TT Sems Screw 3/8-16 x 1.5 This part replaces 1768194. Price: $5.71 |
| 117 |
751-0564B |
Deflector, Muffler This part replaces 1758940. Price: $12.14 |
| 160 |
1766201 |
PULLEY-ENGINE Price: Call Us |
| 163 |
712-3017 |
HEX NUT 3/8-16 GR5 This part replaces 1186231. Price: $3.90 |
| 167 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 1100243. Price: $3.33 |
| 184 |
710-0206 |
Hex Screw, 1/4-20 x 7/8 This part replaces 1111600. Price: $3.94 |
| 189 |
710-0106 |
HEX SCREW 1/4-20 x 1.25 This part replaces 1100806. Price: $3.66 |
| 191 |
1754128 |
SCR-FLANGE 1/4-20X3/4 GR5 {13086} Not Available Price: |
| 219 |
1752694 |
TRIM Not Available Price: |
| 309 |
1747738 |
CLIP-J Not Available Price: |
| 315 |
1766341 |
PAD-FUEL T Not Available Price: |
| 316 |
1766188 |
FUEL CAP Not Available Price: |
| 317 |
1765404 |
TANK-FUEL Price: Call Us |
| 318 |
746-3035 |
THROTTLE CABLE 22.0 x .70 EXT Not Available This part replaces 1767983. Price: |
| 319 |
1767982 |
CONTROL-CHOKE Not Available Price: |
| 320 |
751-3141-14 |
Oil Drain, Extension Hose This part replaces 1769006. Price: $10.40 |
| 322 |
951-10517A |
Oil Drain This part replaces 1768865. Price: $22.67 |
| 323 |
1766121 |
KNOB-CONTO Not Available Price: |
| 324 |
1766297 |
MUFFLER Not Available Price: |
| 324 |
1766298 |
MUFFLER-B&S SINGL Not Available Price: |
| 324 |
736-0171 |
Lock Washer, 7/16 This part replaces 1100244. Price: $3.86 |
| 327 |
917-3497 |
PTO CLUTCH ASSEMBLY This part replaces 1755341. Price: $587.56 |
| 328 |
1744455 |
WASHER-SPE Not Available Price: |
| 329 |
710-3157A |
Screw, 7/16-20 x 3.25 This part replaces 1767165. Price: $9.67 |
| 331 |
1754787 |
CLUTCH-RETAINER Not Available Price: |
| 332 |
1748146 |
SQUARE KEY .25 Not Available Price: |
| 333 |
1766119001 |
BRACKET-MOUNTING CONT Not Available Price: |
| 334 |
N/A |
UNKNOWN |
| 335 |
1762042 |
SCREW-HH Not Available Price: |
| 337 |
936-0119 |
LOCK WASHER 5/16 This part replaces 1185140. Price: $4.29 |
| 338 |
710-1177 |
SCREW 5/16-18 x .750 Not Available This part replaces 1747993. Price: |
| 339 |
1755340 |
SPACER Not Available Price: |
| 351 |
726-0205 |
Hose Clamp This part replaces 1750687. Price: $3.71 |
| 352 |
1767879 |
FUEL HOSE Not Available Price: |
| 513 |
BS-298090S |
Fuel Filter This part replaces 1727491. Price: $5.76 |
| 533 |
935-0149 |
BUSHING This part replaces 1738433. Price: $2.43 |
| 534 |
951-0171 |
Fuel Shut-Off Valve with Screen This part replaces 1751477. Price: $18.13 |
| 535 |
737-0296 |
Vent, 3/8 Dia. This part replaces 1768804. Price: $10.94 |
| 539 |
1766326 |
OIL DRAIN CAP Not Available Price: |
| 551 |
1724194 |
BEARING-UPPER CLUTCH Not Available Price: |
| 552 |
1754156 |
BALL BEARI Not Available Price: |
