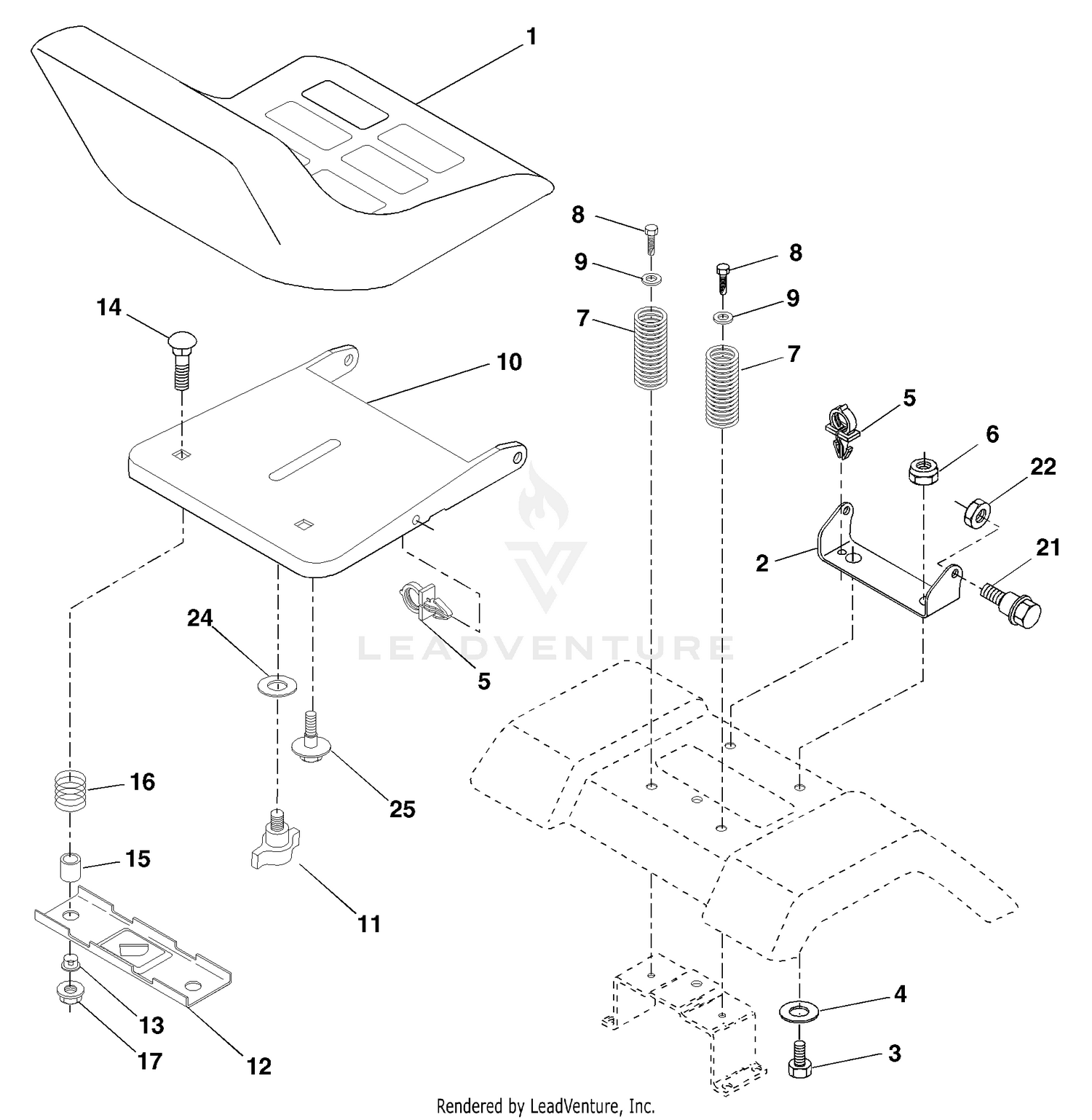

| Ref | Part Number | Description |
|---|
| 1 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532140839. Price: $149.99 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 |
66-6390 |
DECAL-CAUTION Price: $27.63 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
21-2660-01 |
PLATE-SIDE This part replaces 21-2660. Price: $299.86 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 9 |
72-3690 |
DISCONTINUED Price: Call Us |
| 10 |
3217-6 |
NUT-HEX Price: $1.19 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532174894. Price: $17.99 |
| 11 |
106-5190 |
BATTERY This part replaces 55-7290. Price: $170.85 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 12 |
24-6390 |
STUD-HOLDDOWN, BATTERY Price: $19.83 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 13 |
32103-2 |
NUT-WING Price: $0.68 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
3290-144 |
SCREW-SHWH Price: $0.47 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 16 |
27-7290 |
DECAL-PTO Price: $17.38 |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 17 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
28-1280 |
DISCONTINUED Price: Call Us |
| 20 |
24-6420-03 |
HOLDDOWN-BATTERY This part replaces 24-6420. Price: $55.90 |
| 21 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 23 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 24 |
2412-39 |
CLAMP-R Price: $1.70 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 26 |
37-9650 |
TRIM-BOX, TOOL Price: $19.76 |
| 27 |
67-1710 |
DECAL-WARNING Price: $7.83 |
| 28 |
38-4550-03 |
COVER-INSTRUMENTS This part replaces 38-4550. Price: $448.71 |
| 29 |
92-7802 |
DECAL-INSTR., START Price: $22.12 |
| 30 |
92-7800 |
BATTERY COVER ASM Price: $65.49 |
| 31 |
39-8020 |
TRIM-COVER, INSTRUMENT Price: $15.23 |
| 32 |
43-4300 |
TRIM-FRAME, REAR Price: $13.54 |
| 33 |
323-7 |
SCREW-HH Price: $0.65 |
| 34 |
2412-74 |
R-CLAMP Price: $2.37 |
| 35 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 36 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 37 |
32128-13 |
NUT-HF Price: $1.79 |
| 38 |
53-4420 |
DECAL-GAS Price: $10.56 |
| 39 |
27-7310 |
DECAL-REFUELING Price: $27.52 |
| 40 |
93-3183 |
TOOL BOX ASM Price: $240.67 |
| 41 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 42 |
68-8610-01 |
EXTENSION-FENDER This part replaces 68-8610. Price: $186.20 |
| 43 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 44 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 45 |
21-2770 |
PAD-FLOOR PLATE, RH Price: $96.81 |
| 46 |
21-2760 |
PAD-PLATE FLOOR, LH Price: $96.42 |
| 47 |
88-0070-01 |
PLATE-FLOOR This part replaces 88-0070. Price: $169.68 |
| 48 |
98-3883 |
CLAMP-WIRE Price: $0.81 |
| 49 |
93-3185 |
COVER ASM This part replaces 93-3184. Price: $144.25 |
| 51 |
18-2770 |
CABLE-GROUND Price: $47.33 |
| 52 |
92-7801 |
SHIELD-COVER, BATTERY Price: $12.83 |
| 53 |
3290-144 |
SCREW-SHWH Price: $0.47 |
