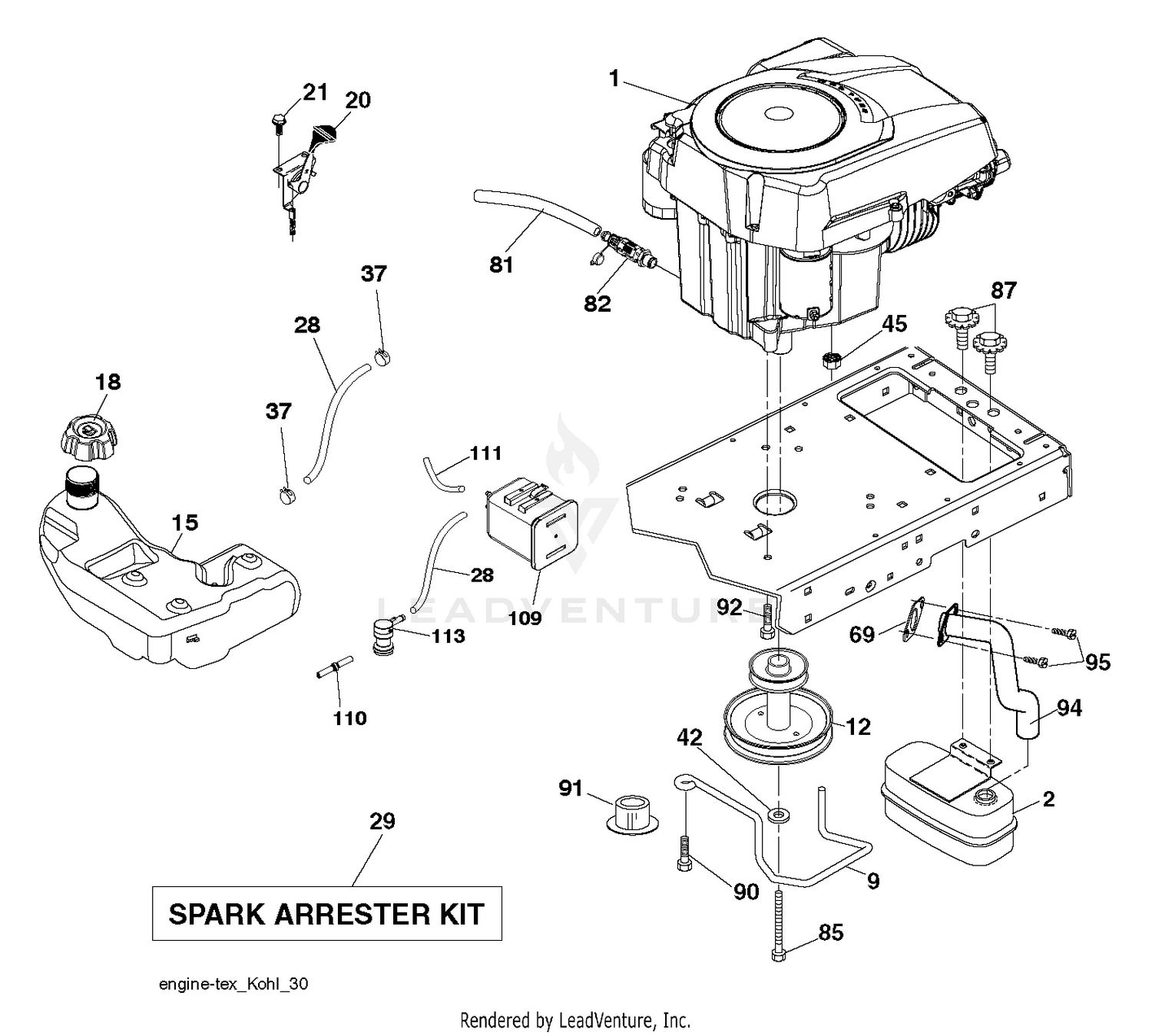

| Ref | Part Number | Description |
|---|
| 1 |
353-512 |
PLUG Price: $15.26 |
| 2 |
21-8620-03 |
DISCONTINUED This part replaces 21-8620. Price: Call Us |
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99 |
| 3 |
233-21 |
KNOB Price: $12.99 |
| 4 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 5 |
38-3400 |
GUARD-RUBBER Price: $8.02 |
| 7 |
21-8640 |
LATCH-LEVER, VALVE Price: $33.47 |
| 8 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 9 |
32121-73 |
PIN-ROLL Price: $0.22 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 11 |
21-9010 |
LEVER-VALVE, PIVOT MOUNT Price: $28.78 |
| 12 |
340-99 |
FITTING-HYD, 90 DEG Price: $32.27 |
| 12 |
532405472 |
RP_PULLEY ENGINE Price: $34.99 |
| 13 |
121-9070 |
VALVE ASM This part replaces 43-1710. Price: $458.43 |
| 14 |
321-24 |
SCREW-HH This part replaces 321-23. Price: $2.31 |
| 15 |
532141517 |
Price: Call Us |
| 15 |
63-8990 |
HOSE-HYD Price: $57.67 |
| 16 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 17 |
63-9260 |
MANIFOLD VALVE ASM Price: $136.31 |
| 18 |
340-112 |
FITTING-ELBOW, 90 Price: $31.81 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 19 |
92-7833 |
HOSE ASM Price: $59.90 |
| 20 |
304-75 |
CONNECTOR-HOSE Price: $8.29 |
| 20 |
532401508 |
CONTROL.TH/CK.COBRA.KO Price: $24.99 |
| 21 |
100-6587 |
HYDRAULIC CYLINDER ASM This part replaces 62-4250. Price: $1,163.83 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
92-7834 |
HOSE-HYD Price: $11.20 |
| 23 |
304-73 |
FITTING-STRAIGHT Price: $12.59 |
| 24 |
340-110 |
FITTING-SWIVEL, 90 DEG Price: $49.98 |
| 25 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 26 |
283-17 |
PIN-CLEVIS Price: $4.89 |
| 27 |
111332 |
SWITCH This part replaces 21-8590. Price: $10.99 |
| 28 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
237-22 |
O-RING Price: $2.43 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
237-30 |
O-RING Price: $2.50 |
| 31 |
237-42 |
O-RING Price: $2.78 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 69 |
532185909 |
GASKET.EXHAUST.KOHLER Price: $7.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 94 |
583955301 |
TUBE.EXHAUST.KOHLER.COURAGE This part replaces 532188654. Price: $27.99 |
| 95 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 109 |
532414114 |
CANNISTER, CARBON Price: $54.99 |
| 110 |
532414118 |
VALVE.ASM.ANTI-SLOSH Price: $19.99 |
| 111 |
532420718 |
PURGE.LINE.36"REAR.CALIFORNIA Price: $6.99 |
| 113 |
597791601 |
VALVES This part replaces 532414127. Price: $9.99 |
