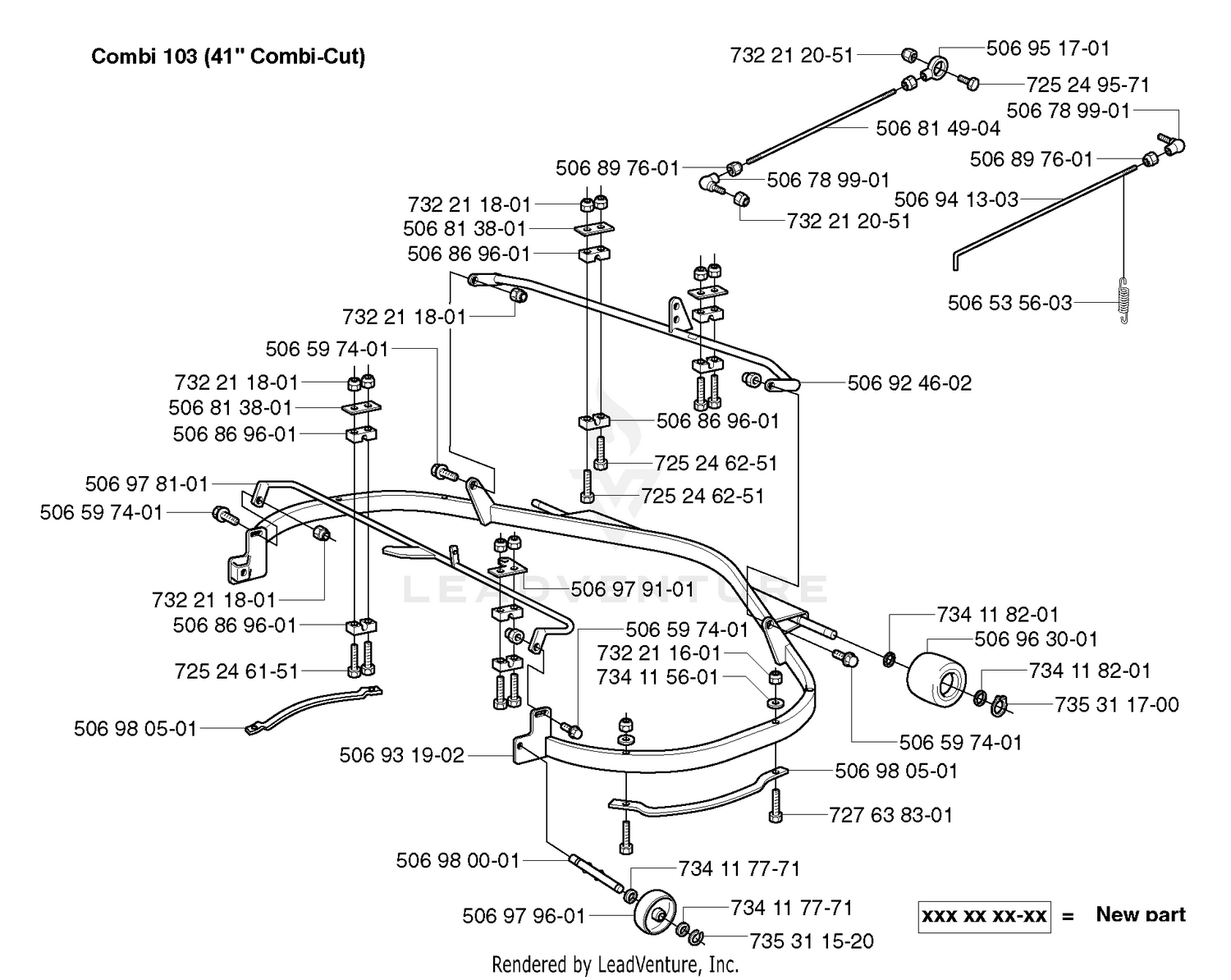

Deck Frame (41" Combi-Cut)
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 506535603 | 506535603 | SPRING Price: $4.99 |
| 506597401 | 506597401 | BOLT Price: $5.99 |
| 506789901 | 506789901 | LINK Price: $89.99 |
| 506813801 | 506813801 | PLATE Price: $5.99 |
| 506814904 | 506814904 | ROD Price: $12.14 |
| 506869601 | 506869601 | BEARING Price: $8.99 |
| 506897601 | 506897601 | NUT Price: $3.99 |
| 506924602 | 506924602 | PIPE Price: $77.53 |
| 506931902 | 506931902 | PROTECTION BAR Price: $297.99 |
| 506941303 | 506941303 | Rod Price: $21.55 |
| 506951701 | 506951701 | LINK Price: $39.99 |
| 506963001 | 506963001 | DECK ROLLER, FRONT Price: $54.99 |
| 506978101 | 506978101 | PIPE Price: $169.99 |
| 506979101 | 506979101 | Washer Price: $5.40 |
| 506979601 | 506979601 | WHEEL Price: $19.99 |
| 506980001 | 506980001 | SHAFT Price: $17.99 |
| 506980501 | 535476401 | RAIL This part replaces 506980501. Price: $27.99 |
| 725246151 | 725246151 | BOLT Price: $4.99 |
| 725246251 | 725246251 | SCREW Price: $4.99 |
| 725249571 | 725249571 | SCREW Price: $6.99 |
| 727638301 | 727638301 | Bolt Price: $1.61 |
| 732211601 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 732211801 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 732212051 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 734115601 | 734181251 | WASHER This part replaces 734115601. Price: $0.99 |
| 734117771 | 734117771 | BUSHING Price: $3.99 |
| 734118201 | 734118201 | WASHER Price: $4.99 |
| 735311520 | 735311520 | RETAINING RING Price: $2.99 |
