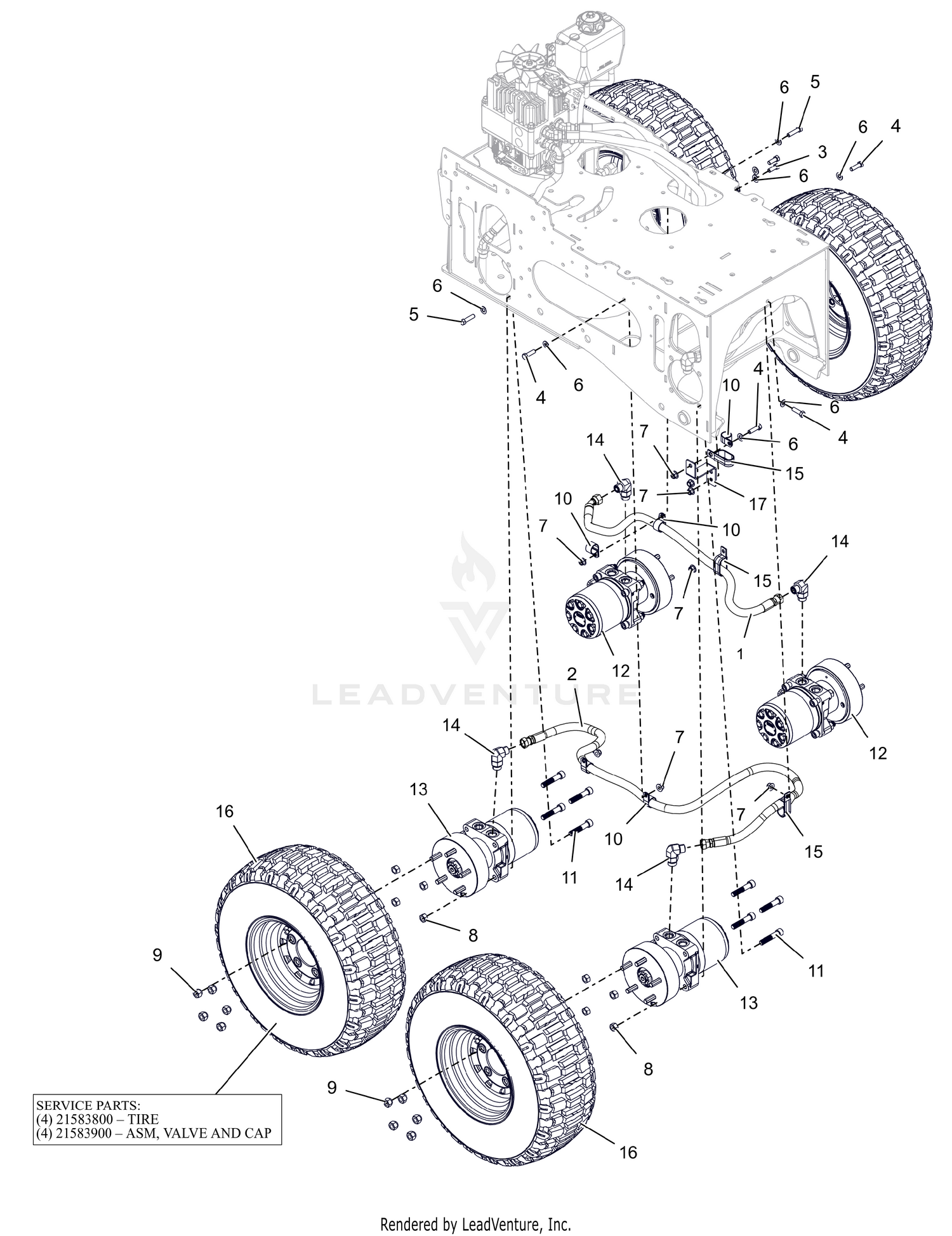

| Ref | Part Number | Description |
|---|
| 1 |
09455900 |
ASM- HOSE LF MTR B/LR MTR A Price: $103.95 |
| 2 |
09464300 |
ASM- HOSE RR MTR B/RF MTR A Price: $103.95 |
| 3 |
05901711 |
BLT,HEX .38-16X1.00 G5 ZCC Price: $1.45 |
| 4 |
05901724 |
BLT, HEX .38-16X1.25 G5 ZCC Price: $1.45 |
| 5 |
05901928 |
BLT, HEX .38-16X1.50 G5 ZCC Price: $1.45 |
| 6 |
06401013 |
WSHR,FLT .406X.812X.065 ZCC Price: $0.95 |
| 7 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC Price: $1.45 |
| 8 |
06500827 |
NUT,LK-CTR .50-13 GA ZCC Price: $3.95 |
| 9 |
06500926 |
NUT, WHEEL .50-20 ZCC Price: $1.45 |
| 10 |
06917900 |
CLAMP, COUSHIONED STEEL REV Price: $13.45 |
| 11 |
07002005 |
SCREW- SOCKET HEAD CAP Price: $5.45 |
| 12 |
09455300 |
MOTOR- WHEEL W/BRAKE - LH Price: $846.95 |
| 13 |
09455400 |
MOTOR- WHEEL W/BRAKE - RH Price: $846.95 |
| 14 |
09465100 |
FITTING- HYD ELB 90-10-8 C5OLO Price: $31.45 |
| 15 |
09465300 |
CLAMP- P-STYLE DUAL / 1.00 ID Price: $4.45 |
| 16 |
09495200 |
ASSM TIRE\WHEEL 22X9-10 K502 Price: $219.95 |
