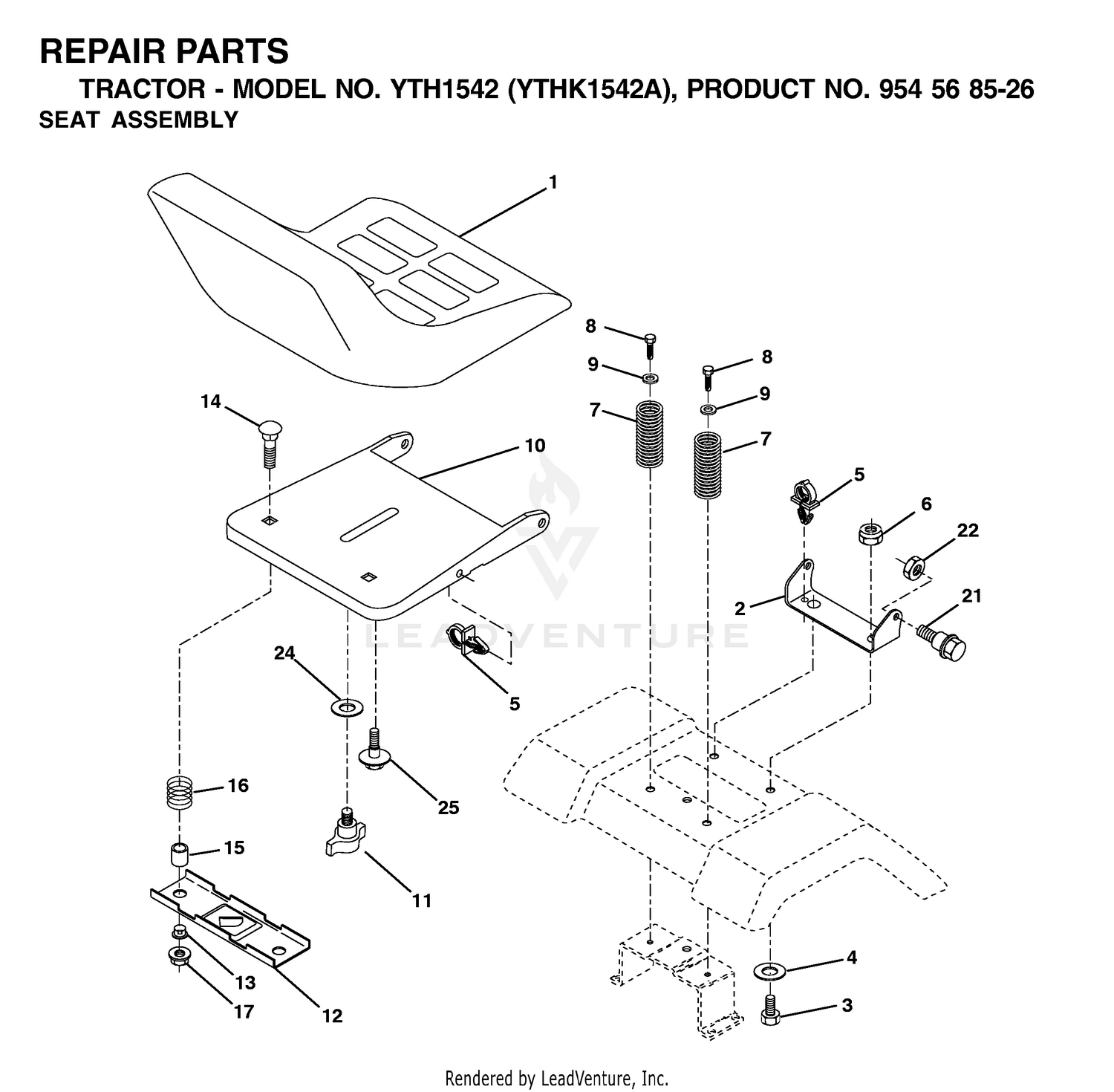

| Ref | Part Number | Description |
|---|
| 1 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532140838. Price: $149.99 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 2 |
93-7977 |
SEAL Price: $74.14 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 3 |
93-7978 |
ROD-PULL Price: $171.95 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 4 |
93-7983 |
PIN-CLEVIS Price: $3.19 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 5 |
93-7980 |
LINK Price: $13.85 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 6 |
93-7979 |
PIN-HITCH Price: $1.70 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
93-7986 |
DISC-STATIONARY Price: $26.25 |
| 8 |
104-4278 |
DISC-ROTATING Price: $55.70 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 9 |
93-7976 |
RING-RETAINING Price: $12.48 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532174894. Price: $17.99 |
| 10 |
93-7984 |
GASKET Price: $20.21 |
| 11 |
104-4280 |
ACTUATOR-ROTATING Price: $332.95 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 12 |
93-7987 |
SPRING-EXTENSION Price: $9.47 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 13 |
93-7985 |
BALL Price: $9.39 |
| 14 |
353-990 |
PLUG ASM Price: $10.01 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
