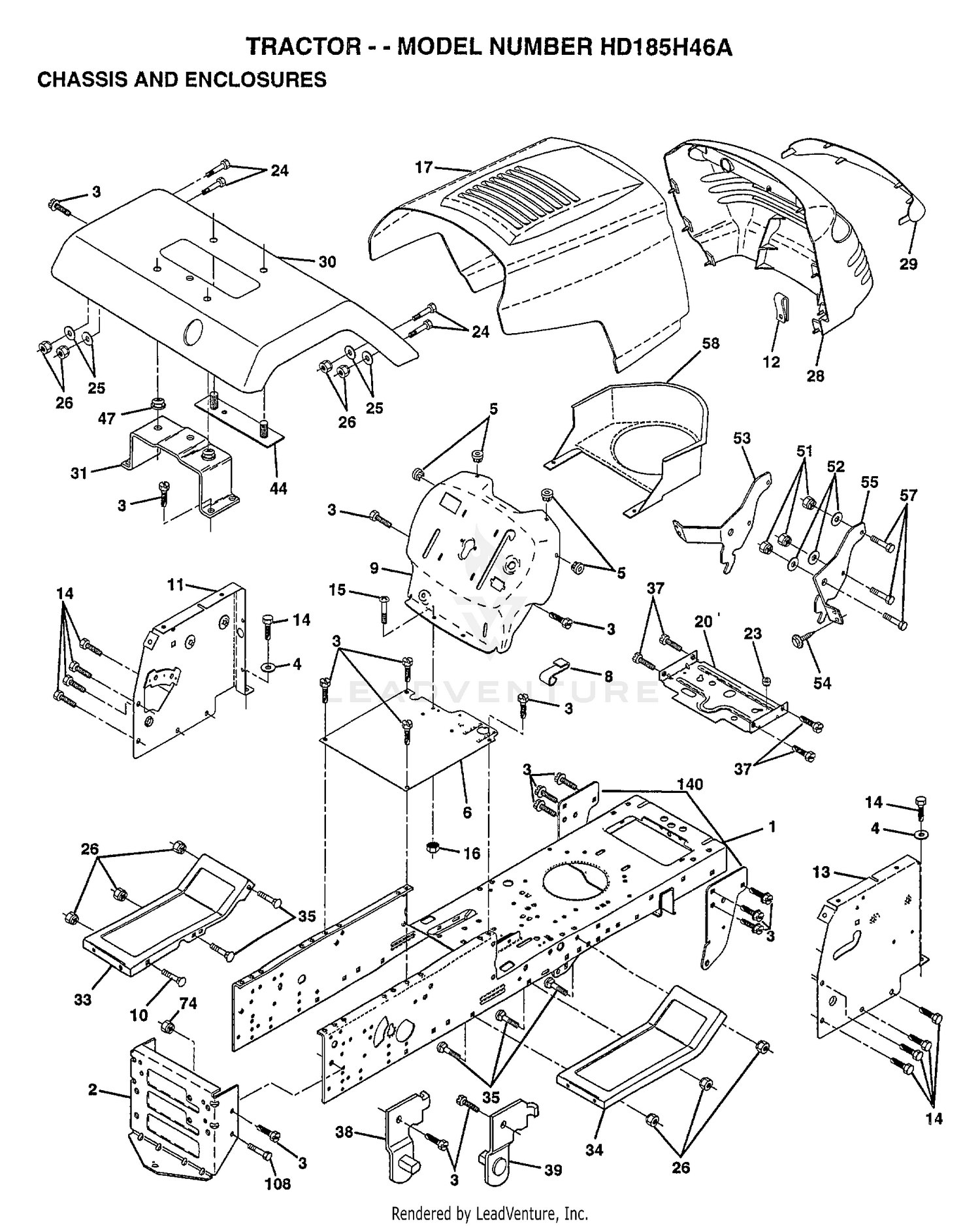

| Ref | Part Number | Description |
|---|
| 1 |
155051 |
CHASSIS ASM Price: Call Us |
| 2 |
140356 |
SUB= 145009 Price: Call Us |
| 3 |
17490612 |
SCREW Price: Call Us |
| 4 |
19131216 |
WASHER Price: Call Us |
| 5 |
155272 |
BUMPER-HOOD/DASH Price: Call Us |
| 5 |
98-9468 |
NOZZLE HOLDER ASM This part replaces 105-3740. Price: $341.86 |
| 6 |
155923 |
SADDLE Price: Call Us |
| 9 |
147633X011 |
DASH SILKSCREEN Price: Call Us |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 10 |
98-9468 |
NOZZLE HOLDER ASM Price: $341.86 |
| 11 |
156682 |
PANEL ASM DASH LH Price: Call Us |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 13 |
157230 |
PANEL DASH RH Price: Call Us |
| 14 |
17490608 |
SCREW LT Price: Call Us |
| 15 |
74180512 |
SCREW Price: Call Us |
| 16 |
73510500 |
NUT Price: Call Us |
| 17 |
139394X428 |
SUB= 159639X428 Price: Call Us |
| 20 |
99-8301 |
NUT Price: $8.64 |
| 23 |
124028X |
SUB= 532124028 Price: Call Us |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 26 |
73800600 |
NUT Price: Call Us |
| 28 |
157373 |
GRILLE-MS428 Price: Call Us |
| 29 |
140273 |
LENS GRILLE Price: Call Us |
| 30 |
99-8302 |
WASHER-ADJUSTING Price: $7.16 |
| 31 |
137113 |
BRKT.ASM.FENDER Price: Call Us |
| 33 |
145244X428 |
FOOTREST PNT LH Price: Call Us |
| 34 |
145243X428 |
FOOTREST.RH.LT/GT Price: Call Us |
| 35 |
72110606 |
BOLT Price: Call Us |
| 37 |
17490508 |
SCREW LT Price: Call Us |
| 38 |
139886 |
BRACKET ASM LH Price: Call Us |
| 39 |
139887 |
BRACKET ASM RH Price: Call Us |
| 40 |
99-8303 |
SPRING-NOZZLE Price: $11.49 |
| 44 |
140675 |
STRAP ASM FENDER Price: Call Us |
| 47 |
105531X |
NUT-PUSH YT Price: Call Us |
| 50 |
99-8304 |
SPACER-DISTANCE Price: $29.26 |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
17030814 |
SUB= 91817030814 Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 58 |
140547 |
DUCT.AIR.B&S.18HP Price: Call Us |
| 60 |
99-8305 |
ROD-PUSH Price: $60.67 |
| 70 |
99-8306 |
NUT-NOZZLE Price: $34.65 |
| 74 |
73680600 |
SUB= 73690600 Price: Call Us |
| 80 |
99-8307 |
WASHER-PLAIN Price: $8.84 |
| 90 |
99-8308 |
PIECE-NOZZLE Price: $90.57 |
| 100 |
99-8309 |
ADJUSTING WASHER ASM Price: $56.19 |
| 108 |
74760612 |
SUB= 74780612 Price: Call Us |
| 110 |
99-8310 |
WASHER-ADJUST (0.10MM) Price: $2.74 |
| 110 |
99-8311 |
WASHER-ADJUST (0.20MM) Price: $3.56 |
| 110 |
99-8312 |
WASHER-ADJUST (0.30MM) Price: $2.74 |
| 110 |
99-8313 |
WASHER-ADJUST (0.40MM) Price: $2.74 |
| 110 |
99-8314 |
WASHER-ADJUST (0.50MM) Price: $1.91 |
| 110 |
99-8315 |
WASHER-ADJUST (0.52MM) Price: $1.91 |
| 110 |
99-8316 |
WASHER-ADJUST (0.54MM) Price: $1.91 |
| 110 |
99-8317 |
WASHER-ADJUST (0.56MM) Price: $1.91 |
| 110 |
99-8318 |
WASHER-ADJUST (0.58MM) Price: $1.91 |
| 110 |
99-8319 |
WASHER-ADJUST (0.80MM) Price: $1.91 |
| 120 |
98-7676 |
GASKET Price: $2.73 |
