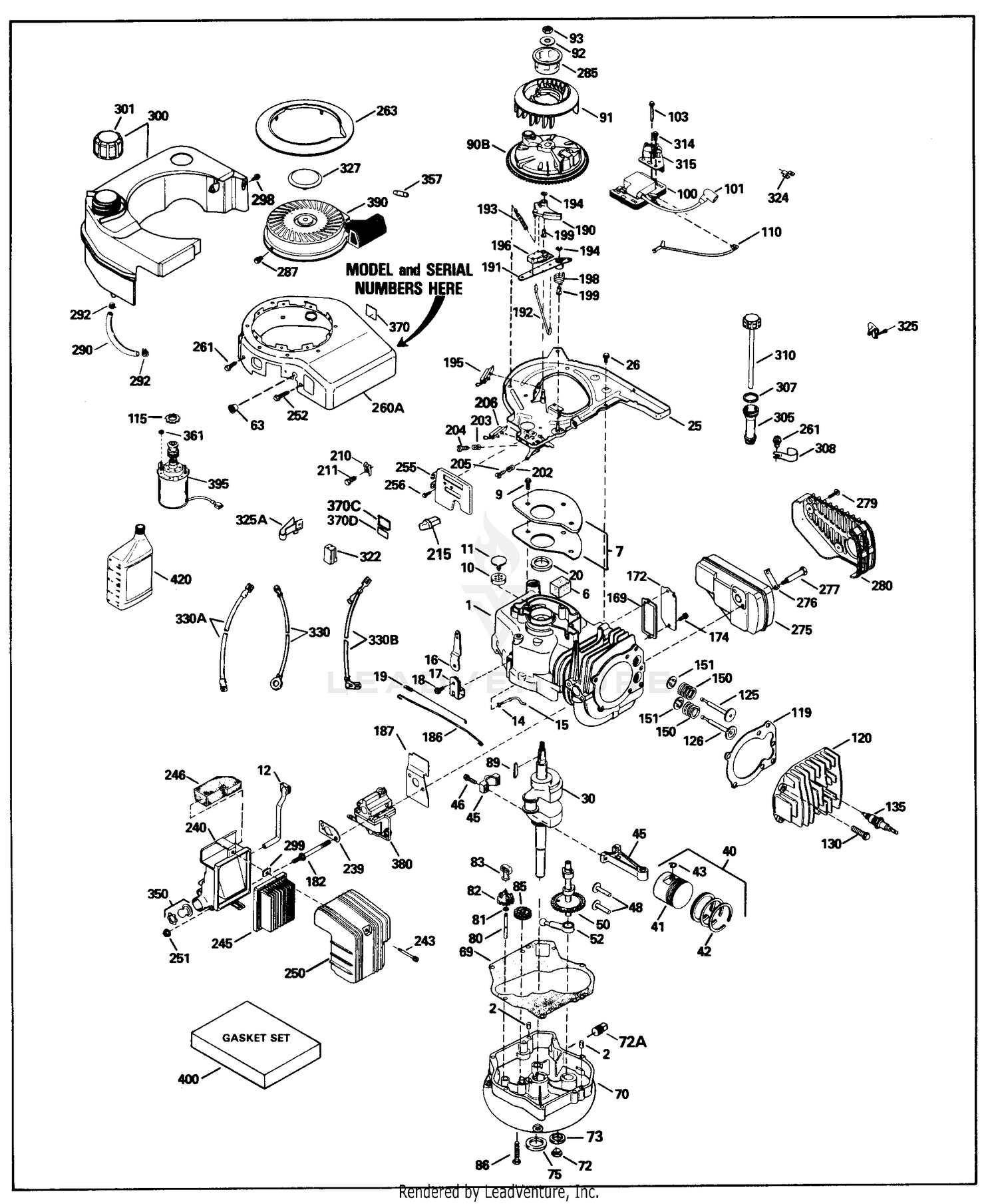

| Ref | Part Number | Description |
|---|
| 1 |
36177 |
CYLINDER This part replaces 36069. Price: $110.17 |
| 2 |
27652 |
PIN Price: $1.58 |
| 6 |
36059 |
ELEMENT Price: $1.22 |
| 7 |
36005A |
COV & GASKET Price: $5.21 |
| 9 |
650965 |
SCREW This part replaces 650836. Price: $1.22 |
| 10 |
36002 |
VALVE BODY Price: $1.22 |
| 11 |
36003A |
VALVE This part replaces 36003. Price: $2.62 |
| 12 |
36001 |
TUBE Price: $3.89 |
| 14 |
28277 |
WASHER Price: $1.26 |
| 15 |
36006 |
GOVERNOR ROD Price: $2.62 |
| 16 |
36008 |
GOV LEVER Price: $1.22 |
| 17 |
31335 |
CLAMP Price: $1.26 |
| 18 |
651018 |
SCREW This part replaces 650548. Price: $1.18 |
| 19 |
36103 |
GOV SPRING Price: $2.62 |
| 20 |
36010 |
OIL SEAL Price: $6.48 |
| 25 |
36091A |
BAFFLE ASSY Price: $38.76 |
| 26 |
650802 |
SCREW Price: $1.25 |
| 30 |
37327A |
CRANK & CAM This part replaces 36068A. Price: $122.43 |
| 40 |
36075 |
PISTON ASSY 020 Price: Call Us |
| 40 |
40004 |
PISTON ASSY STD This part replaces 36073. Price: $53.08 |
| 40 |
40045 |
PISTON ASSY 010 This part replaces 36074. Price: $55.17 |
| 41 |
36075 |
PISTON ASSY 020 This part replaces 36072. Price: Call Us |
| 41 |
40004 |
PISTON ASSY STD This part replaces 36070. Price: $53.08 |
| 41 |
40045 |
PISTON ASSY 010 This part replaces 36071. Price: $55.17 |
| 42 |
36078 |
RING SET 020 Price: Call Us |
| 42 |
40006 |
RING SET STD This part replaces 36076. Price: $30.58 |
| 42 |
40045 |
PISTON ASSY 010 This part replaces 36077. Price: $55.17 |
| 43 |
20381 |
RET RING Price: $1.26 |
| 45 |
36023A |
CONN ROD This part replaces 36023. Price: $21.26 |
| 46 |
650923 |
SCREW Price: $1.15 |
| 48 |
36030 |
VALVE LIFTER Price: $3.89 |
| 50 |
36031A |
CAMSHAFT This part replaces 36031. Price: $33.64 |
| 52 |
29914 |
OIL PUMP Price: $6.54 |
| 69 |
36032A |
GASKET This part replaces 36032. Price: $6.09 |
| 70 |
37271 |
MTG FLANGE This part replaces 36033A. Price: $75.49 |
| 72 |
36083 |
DRAIN PLUG Price: $4.95 |
| 75 |
36010 |
OIL SEAL Price: $6.48 |
| 80 |
30574A |
GOV SHAFT Price: $5.00 |
| 81 |
651080 |
WASHER This part replaces 30590A. Price: $1.24 |
| 82 |
30591 |
GEAR Price: $9.93 |
| 83 |
36057 |
GOV SPOOL Price: $1.26 |
| 85 |
36034 |
GEAR Price: $1.26 |
| 86 |
650924 |
SCREW Price: Call Us |
| 89 |
611154 |
KEY Price: $0.88 |
| 91 |
611156 |
FLYWHEEL FAN Price: $3.89 |
| 92 |
650815 |
WASHER Price: $1.25 |
| 93 |
650816 |
NUT Price: $2.95 |
| 100 |
34443D |
LAMINATION This part replaces 34443A. Price: $35.95 |
| 101 |
610118 |
PLUG COVER Price: $4.45 |
| 103 |
651007 |
SCREW This part replaces 650814. Price: $1.17 |
| 110 |
36230 |
GROUND WIRE Price: $1.26 |
| 119 |
36061 |
GASKET Price: $6.85 |
| 120 |
36187 |
CYL HEAD This part replaces 36037A. Price: $34.85 |
| 125 |
29313C |
EXH VALVE STD Price: $6.23 |
| 125 |
29315C |
EX/INT VALVE OS Price: Call Us |
| 126 |
29314C |
INT VALVE ST This part replaces 29314B. Price: $4.05 |
| 126 |
29315C |
EX/INT VALVE OS Price: Call Us |
| 130 |
6021A |
SCREW Price: $1.26 |
| 135 |
35395 |
SPARK PLUG Price: $2.47 |
| 150 |
31672 |
VALVE SPRING Price: $1.26 |
| 151 |
31673 |
VALVE CAP Price: $1.23 |
| 169 |
27234A |
GASKET Price: $3.95 |
| 172 |
32755 |
VALVE COVER Price: $3.79 |
| 174 |
650128 |
SCREW Price: $3.60 |
| 182 |
650925A |
STUD This part replaces 650925. Price: $5.00 |
| 186 |
36009 |
GOV LINK Price: $1.26 |
| 187 |
37136 |
BAFFLE This part replaces 36035. Price: $7.63 |
| 202 |
36482 |
COMP SPRING This part replaces 33802. Price: $2.80 |
| 203 |
31342 |
COMP SPRING Price: $3.95 |
| 204 |
651029 |
SCREW This part replaces 650549. Price: $1.22 |
| 205 |
651019 |
SCREW This part replaces 650777. Price: $1.22 |
| 206 |
610973 |
TERMINAL Price: $2.60 |
| 210 |
27793 |
CLIP Price: $1.26 |
| 211 |
650837 |
SCREW Price: $1.20 |
| 239 |
36048 |
GASKET Price: $2.27 |
| 240 |
36044B |
CLEANER BODY This part replaces 36044A. Price: Call Us |
| 243 |
650899 |
SCREW-NLA Price: Call Us |
| 245 |
36046 |
AIR CLEANER Price: $7.05 |
| 250 |
36047 |
CLEANER COV Price: $3.89 |
| 251 |
650928 |
NUT Price: $1.22 |
| 252 |
650929 |
SCREW Price: $1.22 |
| 255 |
36104 |
PLATE Price: $10.22 |
| 256 |
650983 |
SCREW Price: $1.22 |
| 261 |
650737 |
SCREW Price: $1.25 |
| 263 |
36080 |
RING Price: $6.54 |
| 275 |
36107A |
MUFFLER This part replaces 36065. Price: $20.19 |
| 276 |
36043 |
LOCK PLATE Price: $1.22 |
| 277 |
650927 |
SCREW Price: Call Us |
| 279 |
650956 |
SCREW Price: $1.17 |
| 280 |
36090 |
SHIELD Price: $36.56 |
| 285 |
34449A |
STARTER CUP This part replaces 34449. Price: $7.54 |
| 287 |
650926 |
SCREW Price: $0.88 |
| 290 |
29774 |
FUEL LINE This part replaces 34357. Price: $2.78 |
| 292 |
26460 |
CLAMP Price: $1.19 |
| 298 |
28763 |
SCREW Price: $1.16 |
| 299 |
650900 |
NUT Price: Call Us |
| 300 |
36066 |
FUEL TANK Price: $23.80 |
| 301 |
37845 |
FUEL CAP This part replaces 35355. Price: $6.33 |
| 305 |
36063 |
FILLER TUBE Price: $1.26 |
| 307 |
35499 |
O RING Price: $0.88 |
| 308 |
36040 |
CLIP Price: $1.22 |
| 310 |
36064 |
DIPSTICK Price: $3.89 |
| 325 |
34246 |
CLIP Price: $1.22 |
| 327 |
35392 |
STARTER PLUG Price: $1.22 |
| 350 |
36045A |
PRIMER This part replaces 36045. Price: $4.99 |
| 370 |
36261 |
DECAL Price: Call Us |
| 370D |
36260 |
DECAL Price: Call Us |
| 380 |
632671C |
CARBURETOR This part replaces 632614. Price: $78.00 |
| 390 |
590785 |
STARTER This part replaces 590686. Price: $33.49 |
| 400 |
36062D |
GASKET SET This part replaces 36062A. Price: $31.61 |
| 420 |
730225A |
OIL SAE 30 This part replaces 730225. Price: $3.38 |
