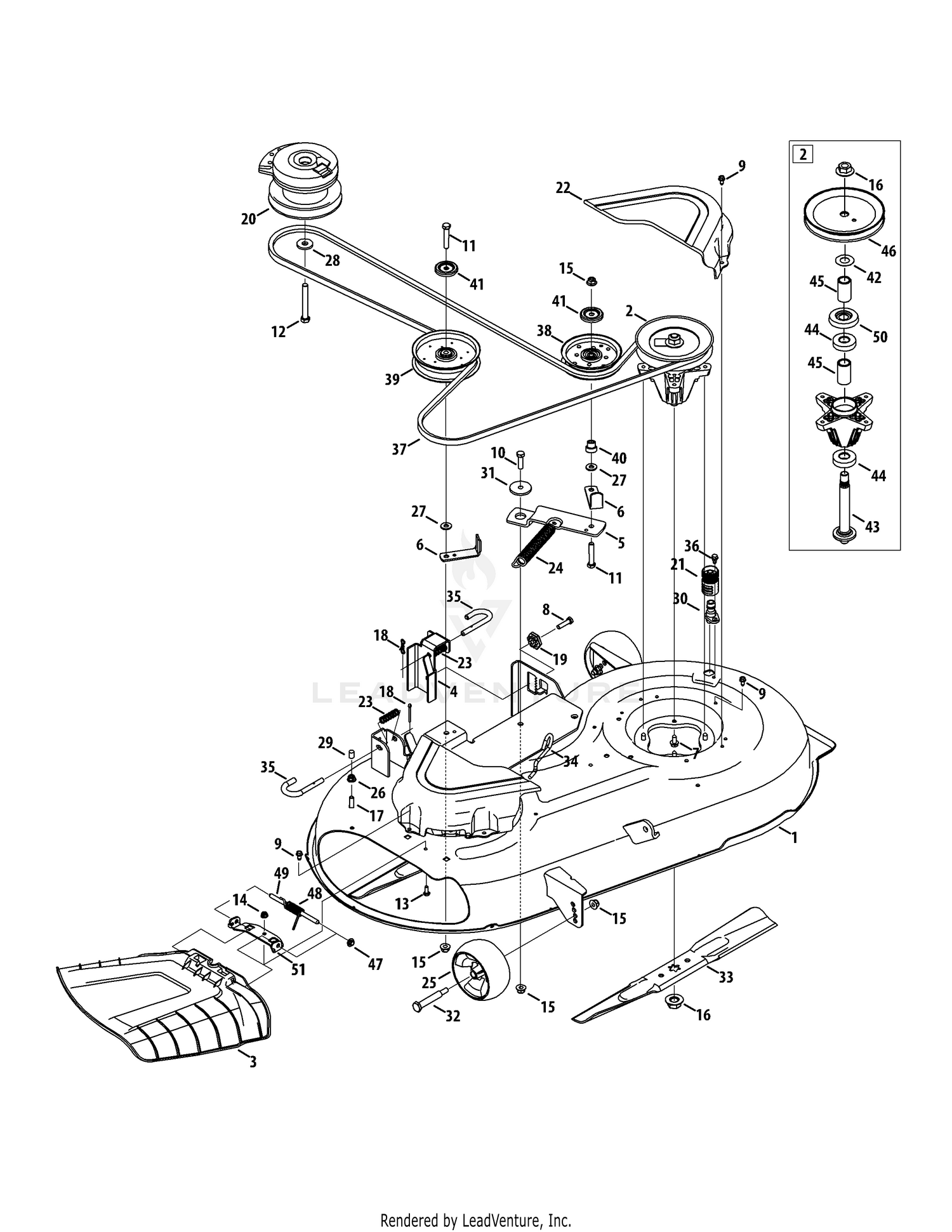

| Ref | Part Number | Description |
|---|
| 2 |
490-130-F002 |
GENUINE FACTORY PARTS® 30" & 42" SPINDLE ASSEMBLY. WITH HARDWARE : 618-04822A Price: $112.61 |
| 2 |
918-04822B |
Spindle Assembly Price: $112.61 |
| 3 |
631-04354C |
CHUTE ASSEMBLY This part replaces 631-04354B. Price: $38.48 |
| 4 |
603-05215A-0637 |
DECK HANGER BRACKET (LH) This part replaces 603-05215-0637. Price: $58.09 |
| 5 |
703-08336E |
IDLER PIVOT BRACKET This part replaces 703-08336C-0637. Price: $27.95 |
| 6 |
703-09583-0637 |
Bracket Belt Guard Price: $12.21 |
| 7 |
710-1260A |
Hex Washer Screw, 5/16-18 x .750 Price: $3.34 |
| 8 |
710-3120 |
Hex Cap Screw, 3/8-16 x 1.50 Price: $3.64 |
| 9 |
710-1652 |
Hex Washer Screw, 1/4-20 x .625 Price: $3.86 |
| 10 |
710-3005 |
Hex Cap Screw, 3/8-16 x 1.25 Price: $3.61 |
| 11 |
710-3144 |
Hex Cap Screw, 3/8-16 x 2.00 Price: $4.02 |
| 12 |
710-3157A |
Screw, 7/16-20 x 3.25 Price: $9.67 |
| 13 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 14 |
712-04064 |
Nut, Flange Lock, 1/4-20, Nylon Price: $3.64 |
| 15 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 16 |
712-0417A |
HEX NUT Price: $6.50 |
| 17 |
710-0376 |
Hex Cap Screw, 5/16-18 x 1.00 Price: $3.66 |
| 18 |
714-0162 |
Cotter Pin, 5/32 x 1.25 Price: $4.29 |
| 19 |
917-05298 |
Deck Adjustment Gear Price: $11.65 |
| 20 |
917-05121 |
Electric PTO Clutch Price: $419.22 |
| 21 |
921-04041 |
Water Nozzle Adapter Price: $20.19 |
| 22 |
731-08698B |
BELT COVER This part replaces 731-08698. Price: $18.53 |
| 23 |
932-3127 |
Compression Spring, .66 x 1.9 Price: $3.82 |
| 24 |
732-04960 |
Extension Spring, .94 Dia. x 7.57 Price: $13.05 |
| 25 |
734-04155 |
Deck Ball Wheel, 5.0 Price: $19.04 |
| 26 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 27 |
736-0262 |
Flat Washer, .385 x .870 x .092 Price: $3.66 |
| 28 |
736-0322 |
Flat Washer, .450 x 1.25 x .164 Price: $8.42 |
| 29 |
720-05010 |
Cap, .290 x .500 Price: $3.70 |
| 30 |
731-07487 |
Deck Wash Nozzle Price: $3.86 |
| 31 |
738-04162C |
Shoulder Spacer, .884 x .190 Price: $12.76 |
| 32 |
938-3056 |
Shoulder Screw, .5 x 2.5 x 3/8-16 Price: $8.53 |
| 34 |
747-05608A |
DECK SPRING HOOK This part replaces 747-05608. Price: $2.94 |
| 35 |
747-06292 |
Deck Hanger Rod Price: $10.24 |
| 36 |
738-04502 |
Shoulder Screw, 1/4-20 x 0.50 Price: $3.75 |
| 37 |
954-04033A |
V-Belt Price: $46.63 |
| 38 |
756-05042 |
Idler Pulley, 4.25 Dia. Price: $25.54 |
| 39 |
756-04511B |
Idler Pulley, 5.00 Dia. Price: $49.33 |
| 40 |
748-05029A |
Shoulder Spacer Price: $4.19 |
| 41 |
783-08389 |
Pulley Cap Price: $5.23 |
| 42 |
736-0351 |
Washer, Flat, .760 ID x 1.5 OD This part replaces 936-0351. Price: $3.93 |
| 43 |
738-1186A |
Spindle Shaft Price: $45.83 |
| 44 |
741P0919B |
BALL BEARING This part replaces 941-0919B. Price: $18.90 |
| 45 |
750-04936 |
Spacer, .792 x 1.060 x 1.860 Price: $5.94 |
| 46 |
756-05111 |
Deck Pulley Price: $25.79 |
| 47 |
726-04009A |
PUSH CAP This part replaces 726-04009. Price: $6.21 |
| 48 |
732-05261 |
Spring, Torsion, .440 ID x 1.75 Price: $5.18 |
| 49 |
747-06290B |
Hinge Pin Price: $3.66 |
| 50 |
783-08435 |
Bearing Shield Price: $6.28 |
