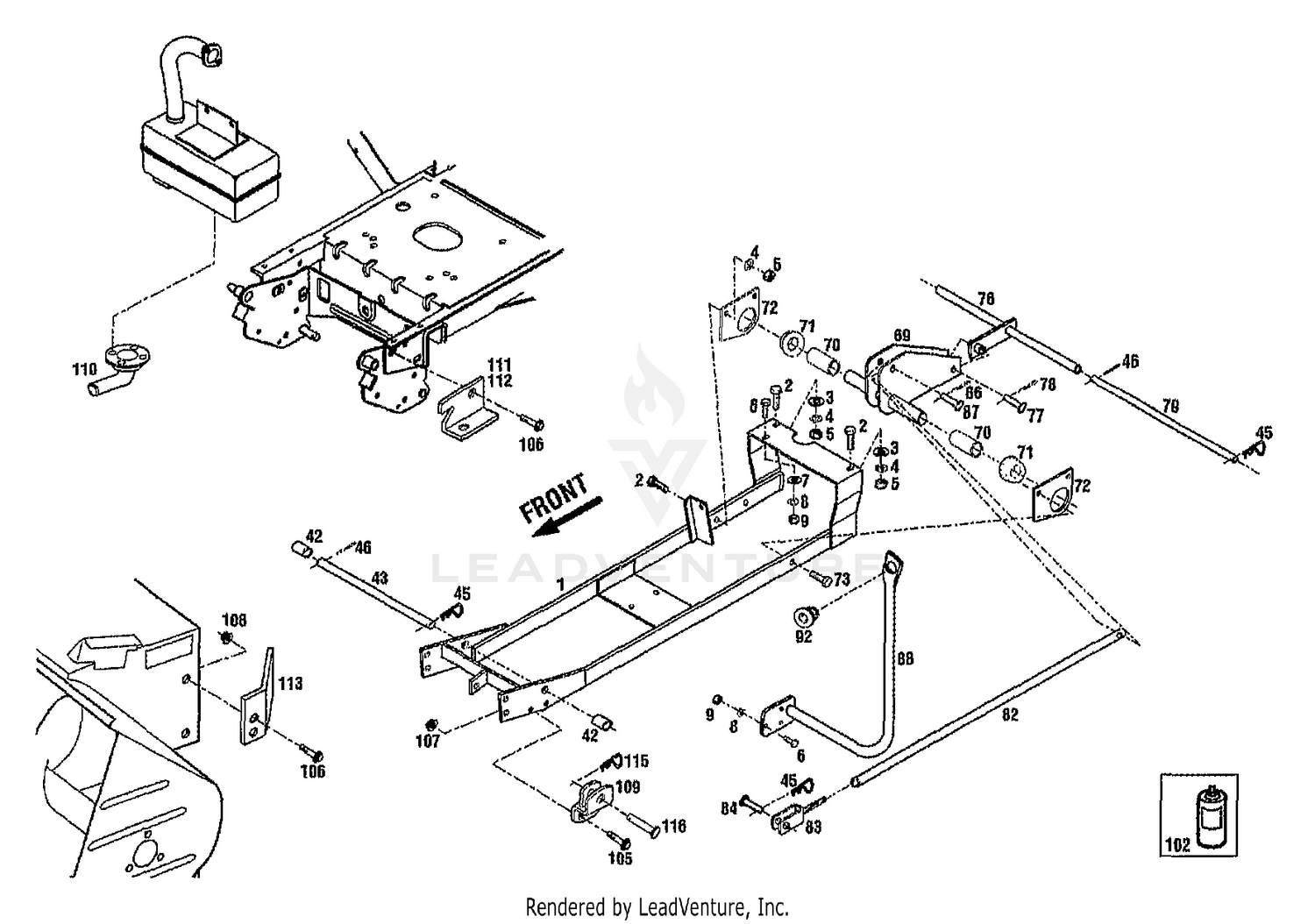

| Ref | Part Number | Description |
|---|
| 1 |
1774073 |
SUBFRAME ASSY Price: Call Us |
| 2 |
710-0514 |
SCREW 3/8-16 x 1 GR5 This part replaces 1100046. Price: $3.78 |
| 3 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 1107383. Price: $3.90 |
| 4 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 1100243. Price: $3.33 |
| 5 |
712-3017 |
HEX NUT 3/8-16 GR5 This part replaces 1186231. Price: $3.90 |
| 6 |
710-0376 |
Hex Screw, 5/16-18 x 1.00 This part replaces 1100045. Price: $3.66 |
| 7 |
736-0275 |
FLAT WASHER This part replaces 1107382. Price: $5.99 |
| 8 |
936-0119 |
LOCK WASHER 5/16 This part replaces 1100242. Price: $4.29 |
| 9 |
712-3010 |
HEX NUT 5/16-18 This part replaces 1186230. Price: $3.89 |
| 42 |
1825497 |
SPACER Not Available Price: |
| 43 |
1825498 |
SUPPORT ROD (14078 Not Available Price: |
| 45 |
1723478 |
HITCH PIN Not Available Price: |
| 46 |
915-0246 |
Pin, Spring, 3/16 x 1.25 Not Available This part replaces 1185232. Price: |
| 69 |
1825499 |
LIFT ROD W Not Available Price: |
| 70 |
1825500 |
TUBE-TORQU Not Available Price: |
| 71 |
1825501 |
BEARING-1 Not Available Price: |
| 72 |
1825502 |
PLATE-END Not Available Price: |
| 73 |
N/A |
UNKNOWN |
| 76 |
1825503 |
ASSM-LIFT (14078) Price: Call Us |
| 77 |
1706419 |
CLEVIS PIN Not Available Price: |
| 78 |
714-0115 |
Pin, Cotter, 1/8 x 1.00 This part replaces 1100350. Price: $3.48 |
| 79 |
1825504 |
ROD-LIFT (14078) Price: Call Us |
| 82 |
1825505 |
LIFT SHAFT Not Available Price: |
| 83 |
1825506 |
TURNBUCKLE Not Available Price: |
| 84 |
1713553 |
CLEVIS PIN Not Available Price: |
| 86 |
714-0115 |
Pin, Cotter, 1/8 x 1.00 This part replaces 1100350. Price: $3.48 |
| 87 |
1720869 |
CLEVIS PIN Not Available Price: |
| 88 |
1825507 |
HANDLE-SUPPORT Price: Call Us |
| 92 |
1825463 |
GROMMET Not Available Price: |
| 102 |
788-0637A |
PAINT-POWDER BLACK This part replaces 1735222. Price: $26.65 |
| 105 |
710-04043 |
SCREW 5/16-18 This part replaces 1186329. Price: $3.96 |
| 106 |
1186345 |
SCREW Not Available Price: |
| 107 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 108 |
1186393 |
NUT-HFLK 3/8-16 ZP Price: $2.63 |
| 109 |
1774019 |
ASSM-SUPT BRKT 1774015 Price: Call Us |
| 110 |
751-0564B |
Deflector, Muffler This part replaces 1774016. Price: $12.14 |
| 111 |
1774059 |
BRACKET-SPRING (RH) Not Available Price: |
| 112 |
1774060 |
BRACKET-SPRING (LH) Not Available Price: |
| 113 |
1774061 |
SHIELD-EXHAUST Not Available Price: |
| 115 |
1723478 |
HITCH PIN Not Available Price: |
