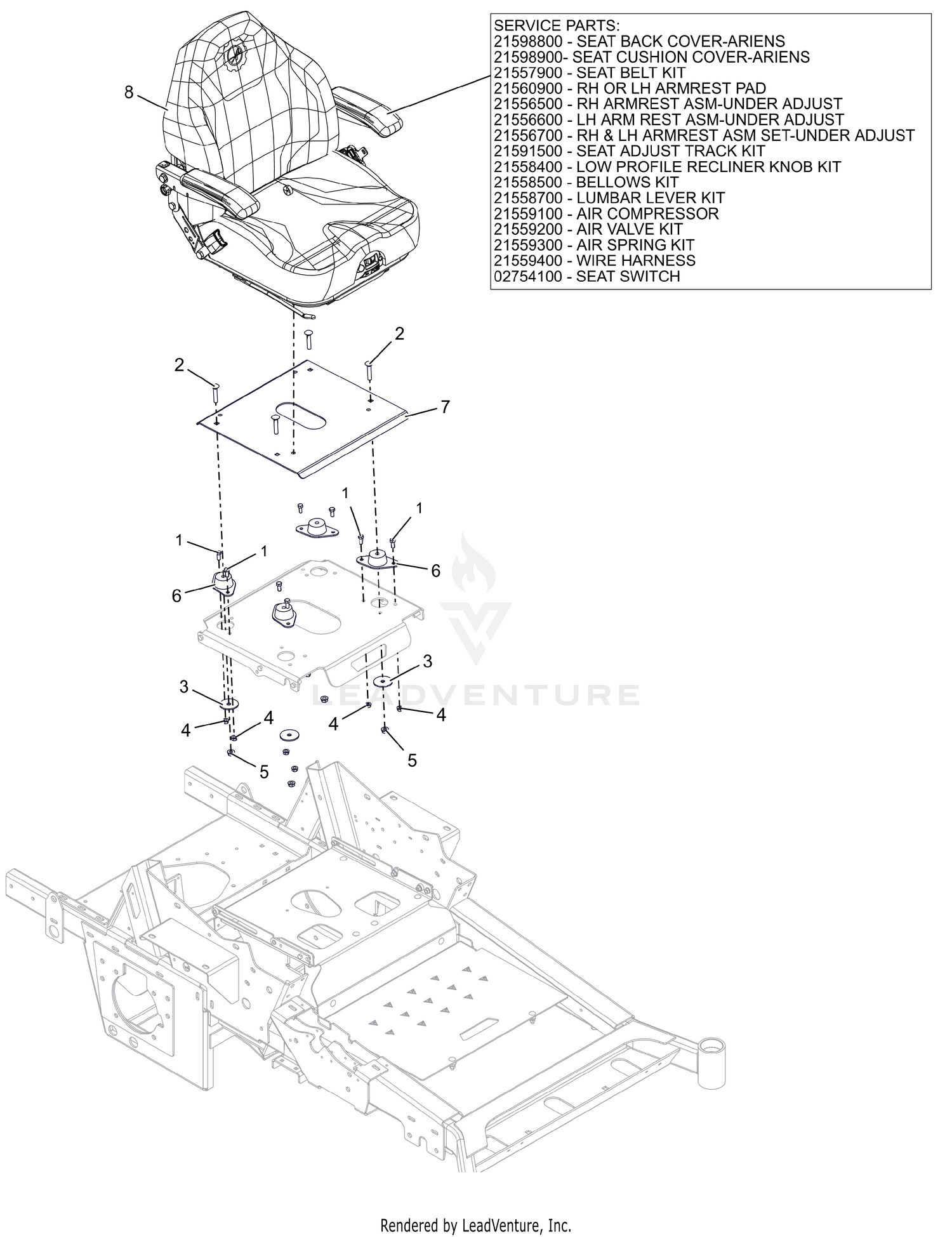

Seat and Seat Mount
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 05901704 | BLT,HEX .31-18X.75 G5 ZCC Price: $1.45 |
| 2 | 06200314 | BLT, RHSN .38-16X2.00 G5 ZCC Price: $3.45 |
| 3 | 06401221 | WSHR-FL-STL 0.406X2X0.125 ZCC Price: $3.45 |
| 4 | 06500840 | NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 5 | 06500901 | NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 6 | 07500237 | MOUNT, FAIL-SAFE COMPRESSION Price: Call Us |
| 7 | 09675359 | PLATE, SEAT MOUNTING (ORANGE) Price: Call Us |
| 8 | 30318800 | SEAT, HIGH BACK AIR SUSPENSION-ARIENS Price: Call Us |
