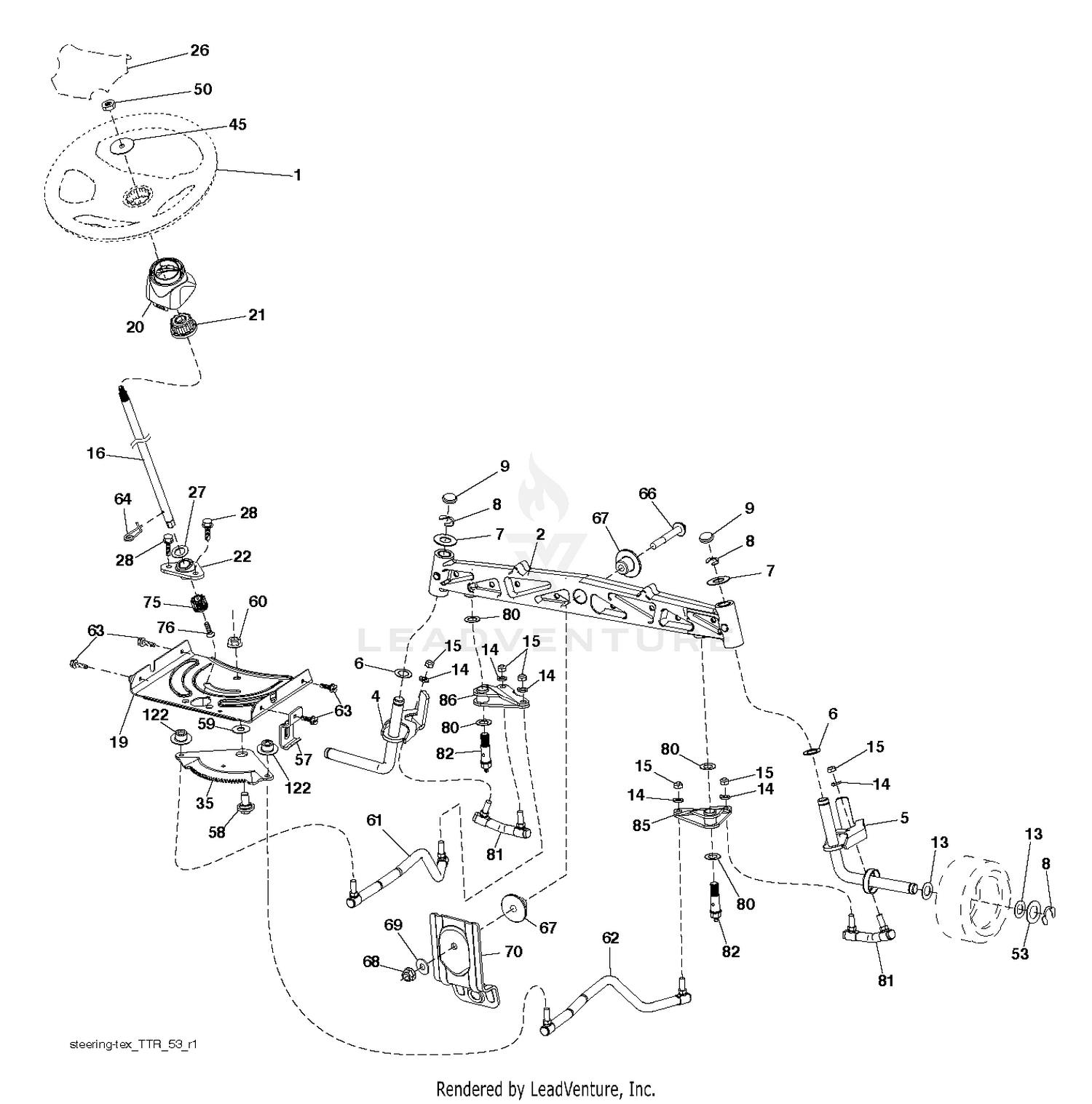

| Ref | Part Number | Description |
|---|
| 1 |
26-7970 |
CAUTION DECAL (BLADE) Price: $14.83 |
| 1 |
532424551 |
WHEEL.STEERING.MLT.BR.YEL/OVRM Price: $64.99 |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 2 |
583512701 |
SUBASM.AXLE.CAST.NZTR. This part replaces 532436870. Price: $149.99 |
| 3 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 4 |
3218-3 |
NUT-JAM Price: $0.25 |
| 4 |
583512801 |
WELDMENT.SPINDLE.LH.15.NZTR This part replaces 532436873. Price: $32.99 |
| 5 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 5 |
583512901 |
WELDMENT.SPINDLE.RH.15.NZTR This part replaces 532436874. Price: $32.99 |
| 6 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 7 |
28-9060 |
PLATE-IDLER Price: $137.75 |
| 7 |
532121748 |
WASHER Price: $1.99 |
| 8 |
5-1077 |
KEY-SQUARE Price: $6.18 |
| 8 |
812000029 |
RING CLIP Price: $1.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $1.99 |
| 9 |
99-1297 |
IDLER ARM ASM This part replaces 27-8580. Price: $133.94 |
| 10 |
3296-5 |
NUT-HEX Price: $3.09 |
| 11 |
27-1080 |
DISCONTINUED X-REF Price: Call Us |
| 12 |
3211-6 |
SCREW-HH Price: $3.87 |
| 13 |
27-1160 |
V-BELT Price: $51.80 |
| 13 |
532121749 |
WASHER Price: $1.99 |
| 14 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 14 |
539990118 |
SLW 3/8 STD This part replaces 810040600. Price: $1.99 |
| 15 |
32146-20 |
NUT-HEX Price: $3.23 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $1.99 |
| 16 |
587016002 |
SHAFT.STEER.2HIGH.SPLND.PLATED Price: $11.99 |
| 16 |
74150 |
Washer Price: Call Us |
| 17 |
27-0970-03 |
PULLEY ASM This part replaces 27-0970. Price: $51.99 |
| 18 |
253-139 |
SEAL-OIL Price: $12.45 |
| 19 |
27-0960 |
BEARING ASM Price: $58.99 |
| 19 |
532194729 |
PLATE.STEER.DDL.NLT/NG Price: $12.99 |
| 20 |
27-5970 |
SPACER-SET, MATCHED Price: $57.99 |
| 20 |
532424740 |
BOOT.STRNG.PREDATOR.YT/GT.428 Price: $2.99 |
| 21 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 21 |
586840201 |
ADAPTER.WHEEL.STEER.SPLND.ALUM Price: $2.99 |
| 22 |
27-7680-03 |
RING-DECK SUPPORT This part replaces 27-7680. Price: $70.99 |
| 22 |
585029901 |
BEARING.SUBASM.SHAFT.STEER.LOW Price: $4.99 |
| 23 |
61-4160 |
HOUSING-SPINDLE This part replaces 27-0880. Price: $131.00 |
| 24 |
32128-21 |
NUT-HF Price: $0.39 |
| 25 |
27-0920 |
SHAFT Price: $158.07 |
| 26 |
27-0990-03 |
BLADE-18 INCH This part replaces 27-0990. Price: $18.94 |
| 26 |
532424553 |
CAP.WHL.STRNG.MULTI.BRND.YEL Price: $5.99 |
| 27 |
72-9361 |
CUP-SCALP, ANTI This part replaces 27-1000. Price: $39.78 |
| 27 |
819211616 |
WASHER LT Price: $3.99 |
| 28 |
3253-27 |
WASHER-LOCK Price: $2.24 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 29 |
44-2200 |
SCREW-BLADE This part replaces 3213-22. Price: $4.04 |
| 30 |
27-0950 |
SPACER Price: $29.99 |
| 31 |
68-7280 |
DECAL - BLD BOLT TORQUE This part replaces 26-7960. Price: $11.26 |
| 32 |
42-4650 |
DISCONTINUED Price: Call Us |
| 33 |
40-6400 |
SHAFT-ROLLER Price: $38.99 |
| 34 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 35 |
29-4820 |
ROLLER Price: $14.88 |
| 35 |
583551401 |
GEAR.SECTOR.TEX.NZTR (3 2) This part replaces 532440770. Price: $22.99 |
| 45 |
587016401 |
WASHER.3/8ID.2-3/8OD.12GA.PLTD Price: $1.99 |
| 50 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $2.99 |
| 57 |
532197246 |
BRKT.UPSTOP.GT/LT.TEX Price: $8.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $4.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $3.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
583513301 |
SUBASM.LINK.DRAG.LH.NZTR This part replaces 532436884. Price: $24.99 |
| 62 |
583513401 |
SUBASM.LINK.DRAG.RH.NZTR This part replaces 532436885. Price: $24.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $2.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $2.99 |
| 67 |
532194737 |
BUSHING.PM.FRONT AXLE Price: $3.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $2.99 |
| 70 |
585338801 |
BRACKET.FRT.DECK.SUSP.RR.MT431 Price: $5.99 |
| 75 |
580683702 |
PINION.ZINC PLATED This part replaces 580683701. Price: $2.99 |
| 76 |
580683601 |
SCREW HEAD SOCKET LRVB Price: $1.99 |
| 80 |
532001370 |
THRUST WASHER Price: $2.99 |
| 81 |
583513501 |
SUBASM.LINK.CROSS.RH.NZTR This part replaces 532436887. Price: $11.99 |
| 82 |
532442147 |
SUBASM;PIVOT;BOLT;NZTR Price: $3.99 |
| 85 |
583561101 |
SUBASM.PIVOT.RH.NZTR This part replaces 532441873. Price: $24.99 |
| 86 |
583561001 |
SUBASM.PIVOT.LH.NZTR This part replaces 532441872. Price: $24.99 |
