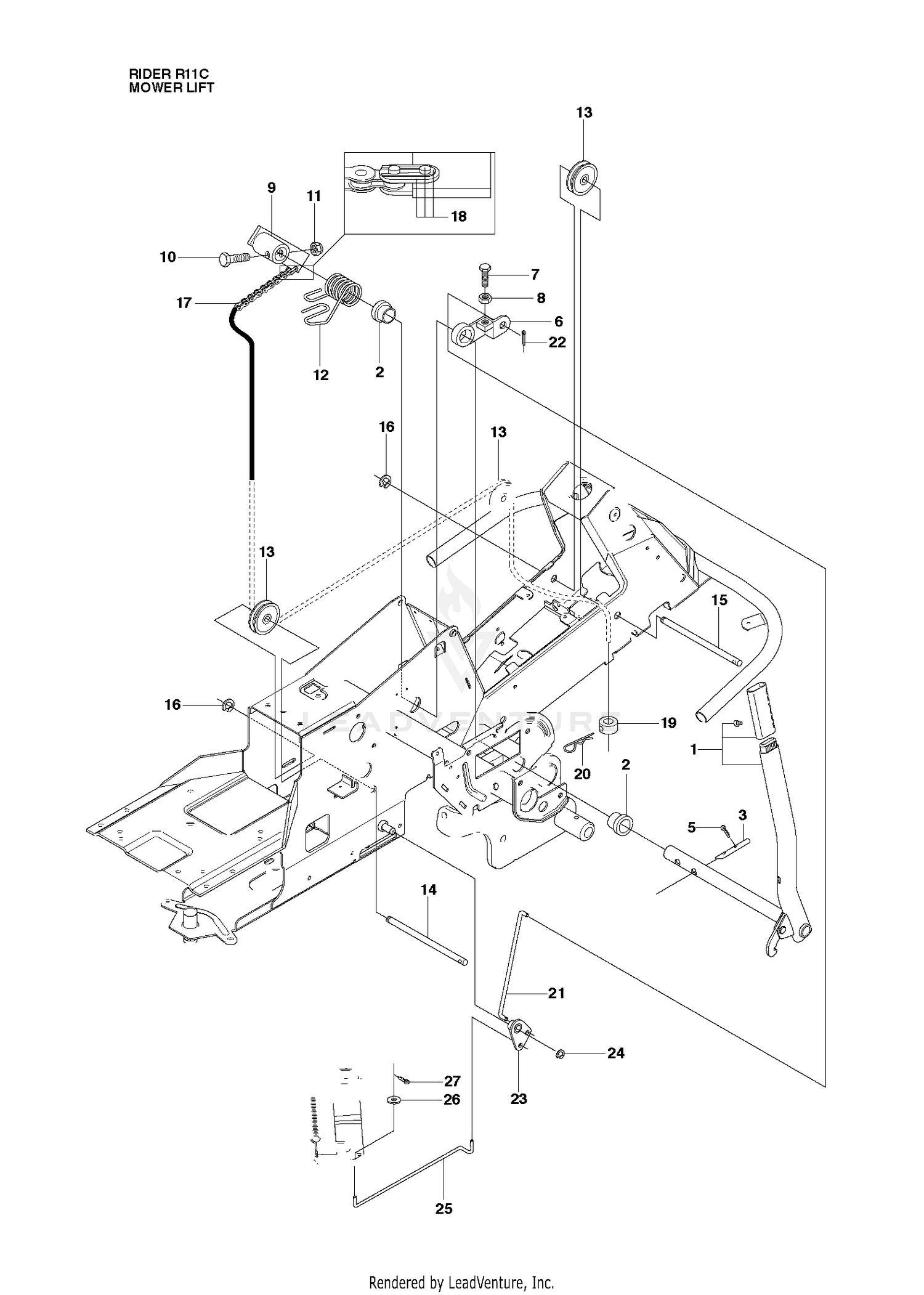

MOWER LIFT / DECK LIFT
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 4-2390 | WASHER-FLAT Price: $0.62 |
| 1 | 501018602 | LIFTING LEVER ASSY This part replaces 501018601. Price: $54.99 |
| 2 | 21-0400-01 | SPRING-COMPRESSION Price: $20.88 |
| 2 | 584871301 | BEARING FLANGE This part replaces 506556501. Price: $4.99 |
| 3 | 48-9590 | WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 3 | 525406601 | PIN Price: $7.99 |
| 4 | 43-0090 | SCREW-HH Price: $8.05 |
| 5 | 33113-020 | SCREW-HH This part replaces 48-7630. Price: $0.26 |
| 5 | 721618301 | Split Pin Price: $1.99 |
| 6 | 48-8020 | WASHER-SPRING Price: $1.19 |
| 6 | 506784301 | LEVER CLUTCH Price: $29.99 |
| 7 | 48-9590 | WASHER-LOCK Price: $0.25 |
| 7 | 725249751 | SCREW Price: $4.99 |
| 8 | 56-2140 | SCREW-HH Price: $4.17 |
| 8 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 9 | 544433601 | LIFTING ARM Price: $22.99 |
| 9 | 63-7400 | WASHER-REBOUND Price: $1.70 |
| 10 | 63-7790 | SCREW-CAP Price: $1.46 |
| 10 | 725254251 | Screw Price: $4.99 |
| 11 | 63-8150 | KEY-SQUARE Price: $9.44 |
| 12 | 506916801 | SPRING Price: $7.99 |
| 12 | 80-6990 | WASHER-HARDENED Price: $3.06 |
| 13 | 506905601 | PULLEY Price: $14.99 |
| 13 | 81-1690 | CLAMP-CABLE Price: $2.24 |
| 14 | 104-1713-03 | MOUNT-ENGINE, RH REAR Price: $78.67 |
| 14 | 506905701 | SHAFT Price: $18.26 |
| 15 | 104-1715 | HUB-CLUTCH Price: $177.49 |
| 15 | 506905702 | SHAFT Price: $19.99 |
| 16 | 105-3698 | SPACER Price: $65.71 |
| 16 | 735311820 | Lock Ring Price: $1.99 |
| 17 | 107-9061 | ELECTRIC CLUTCH / BRAKE ASM Price: $1,140.58 |
| 17 | 506554607 | CHAIN Price: $37.99 |
| 18 | 108-6561-03 | MOUNT-MUFFLER Price: $183.52 |
| 18 | 506554701 | LINK Price: $4.99 |
| 19 | 110-9682-03 | BRACKET-THROTTLE Price: $28.22 |
| 19 | 544934201 | Price: Call Us |
| 20 | 110-9696 | BOLT-HH Price: $18.93 |
| 20 | 506966601 | RETAINER Price: $3.99 |
| 21 | 115-0600 | MOUNT-ENGINE Price: $29.39 |
| 21 | 544456901 | CONNECTION ROD Price: $8.99 |
| 22 | 117-0836-03 | MOUNT-ENGINE, RH FRONT Price: $82.72 |
| 22 | 721618301 | Split Pin Price: $1.99 |
| 23 | 120-6568-03 | STOP-CLUTCH Price: $32.96 |
| 23 | 544378601 | LINK Price: $7.99 |
| 24 | 125-9249 | SPACER-COUPLER, RUBBER Price: $2.15 |
| 24 | 735311420 | RETAINING RING Price: $2.99 |
| 25 | 323-14 | SCREW-HH Price: $1.34 |
| 25 | 544448801 | CONNECTION ROD Price: $8.99 |
| 26 | 323-44 | SCREW-HH Price: $3.69 |
| 26 | 734116441 | SPACER Price: $3.99 |
| 27 | 3212-5 | SCREW-HH Price: $2.46 |
| 27 | 721618301 | Split Pin Price: $1.99 |
| 28 | 3234-5 | SCREW-HHF Price: $0.42 |
| 29 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 30 | 3253-6 | WASHER-LOCK Price: $0.39 |
| 31 | 3255-9 | WASHER-LOCK Price: $0.28 |
| 32 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 33 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 34 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 35 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 36 | 32105-13 | SCREW-HWH Price: $1.59 |
| 37 | 32128-21 | NUT-HF Price: $0.39 |
| 38 | 32128-25 | NUT-HF Price: $3.19 |
| 39 | 701197 | E-RING Price: $2.99 |
| 40 | 33113-050 | SCREW-HH Price: $0.62 |
