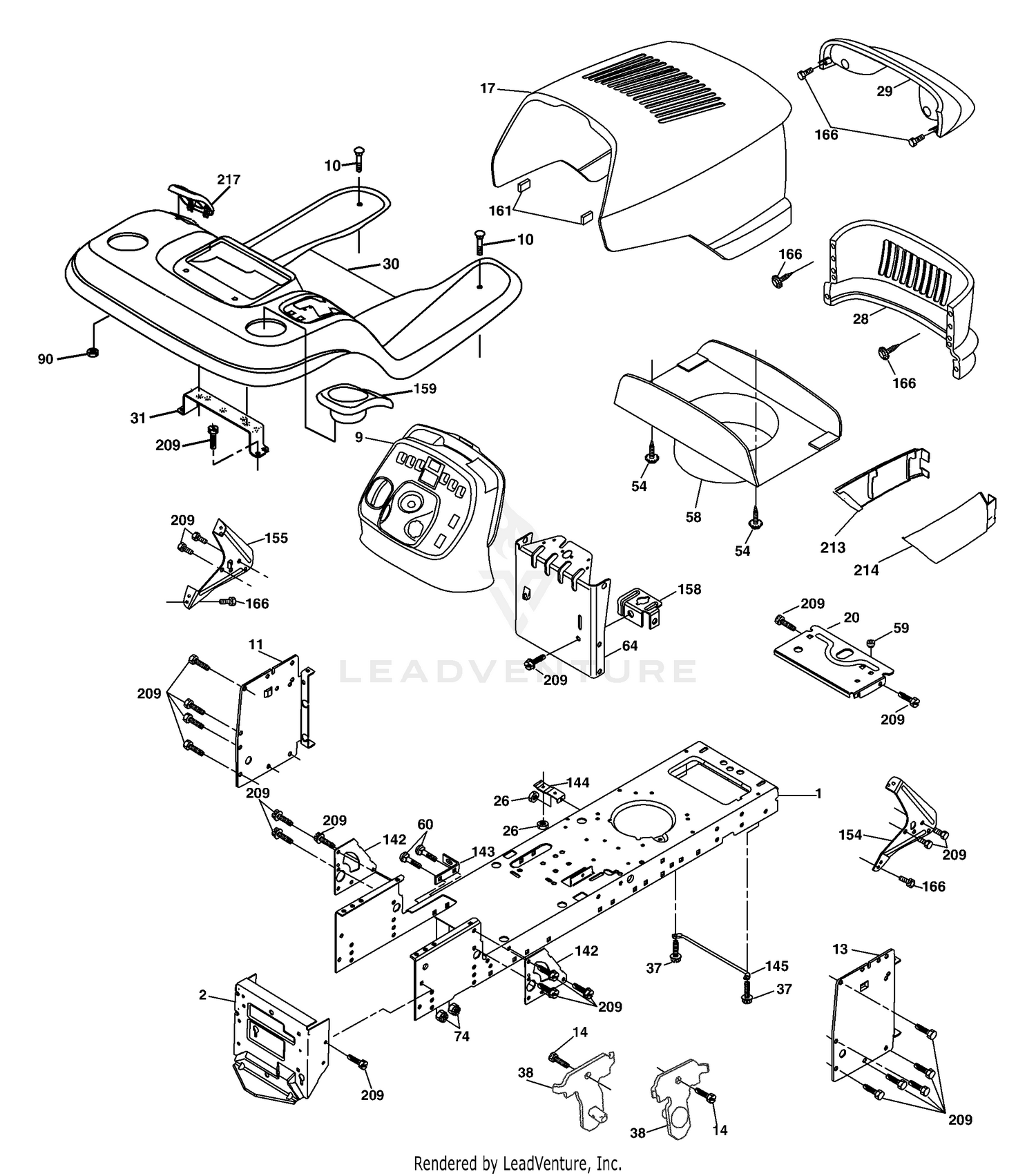

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 2 |
176554 |
Drawbar Price: Call Us |
| 3 |
17060612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 9 |
187934X428 |
Dash Price: Call Us |
| 010 |
105-4579 |
GAUGE-OIL Price: $58.87 |
| 10 |
72140608 |
Bolt 3/8-16 x 1 Price: Call Us |
| 11 |
167203 |
Panel Dash Lh Price: Call Us |
| 13 |
178298 |
Panel Dash Rh Price: Call Us |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 17 |
175260X428 |
Hood Price: Call Us |
| 020 |
110-3720 |
PLUG-GAUGE, OIL This part replaces 100-9169. Price: $18.99 |
| 20 |
162026 |
Plate Battery Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 unc Price: Call Us |
| 28 |
175289X428 |
Grille Price: Call Us |
| 29 |
179761 |
Light Asm. Bar Price: Call Us |
| 30 |
179131X428 |
Fender Price: Call Us |
| 31 |
139976 |
Bracket Fender Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket, Asm. Pivot Mower Rear Price: Call Us |
| 54 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 58 |
175351 |
Duct Hood Price: Call Us |
| 59 |
187495 |
Bushing Snap Price: Call Us |
| 60 |
72140606 |
Bolt Rd Hd Sqnk 3/8-16 unc x 3/4 Price: Call Us |
| 64 |
174997 |
Dash Lower Price: Call Us |
| 74 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 90 |
124346X |
Nut Self-Thd Wsh-Hd 1/4 Zinc Price: Call Us |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 143 |
186689 |
Bracket Swaybar Chassis Price: Call Us |
| 144 |
175582 |
Bracket Footrest Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 154 |
161897 |
Bracket Dash Rh Price: Call Us |
| 155 |
161900 |
Bracket Dash Lh Price: Call Us |
| 158 |
162037 |
Bracket Parking Brake Price: Call Us |
| 159 |
179950X428 |
Cupholder Price: Call Us |
| 161 |
164655 |
Extrusion Bumper Price: Call Us |
| 166 |
171875 |
Screw Hw Hd Hi-Lo #13-16 x 3/4 Price: Call Us |
| 209 |
17000612 |
Screw Hexwsh Thdrol 3/8-16 x 3/4 Price: Call Us |
| 213 |
169848X428 |
Skirt Grille LH Price: Call Us |
| 214 |
169847X428 |
Skirt Grille RH Price: Call Us |
