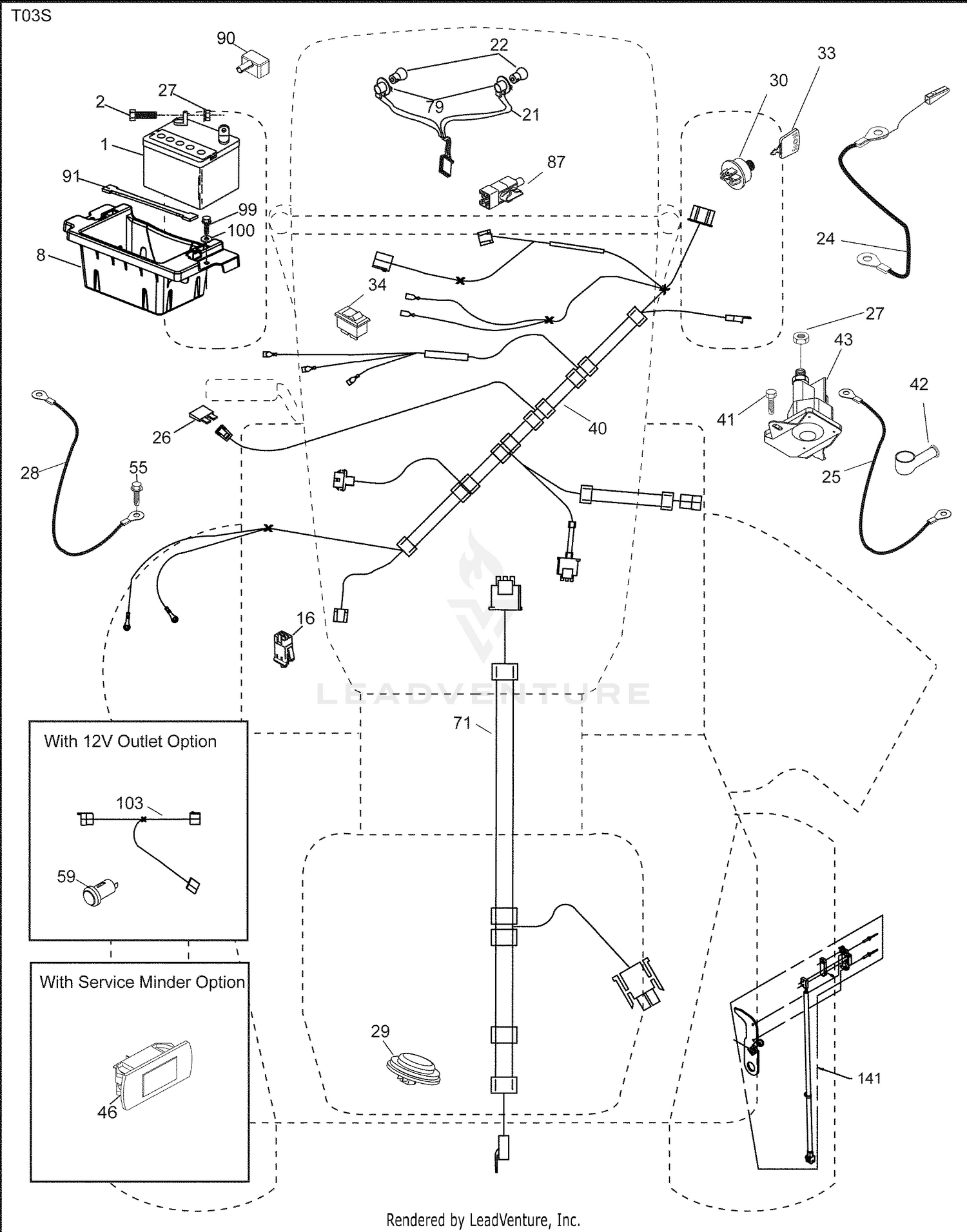

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 1 |
80-4860 |
PIN-CLEVIS Price: $6.13 |
| 2 |
75-3580 |
PLATE-SEAT Price: $213.06 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
75-3530 |
SPRING-COMPRESSION Price: $31.98 |
| 4 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 5 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 6 |
3285-19 |
PIN-GROOVE This part replaces 75-3540. Price: $1.79 |
| 7 |
75-3550 |
BUMPER-SEAT Price: $18.48 |
| 8 |
532414126 |
TRAY.ASM.BATTERY.FRT.TEX.CARB Price: $32.99 |
| 8 |
76-2940 |
BUMPER Price: $9.73 |
| 9 |
76-1920 |
SLEEVE-BEARING Price: $22.50 |
| 10 |
66-8610 |
DISCONTINUED Price: Call Us |
| 11 |
66-8560 |
NUT-PUSH Price: $5.97 |
| 12 |
76-1910 |
DISCONTINUED Price: Call Us |
| 13 |
82-9060 |
DISCONTINUED Price: Call Us |
| 14 |
76-1940 |
SPRING-EXTENSION Price: $66.03 |
| 15 |
66-9290 |
SPACER-SUSPENSION Price: $3.60 |
| 16 |
108-6703 |
ADJUSTER-SEAT This part replaces 66-8530. Price: $183.47 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
66-8520 |
BUMPER-DOWNSTOP Price: $37.56 |
| 18 |
76-1960 |
KNOB KIT This part replaces 77-2870. Price: $357.33 |
| 19 |
106-1031 |
TENSION ADJUSTER KNOB ASM This part replaces 76-1930. Price: $68.93 |
| 20 |
3256-46 |
WASHER-FLAT Price: $5.77 |
| 21 |
32128-26 |
NUT-FLANGE Price: $5.89 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 22 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
75-3480 |
FRAME-UPPER Price: $323.32 |
| 24 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 This part replaces 532412895. Price: $7.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 26 |
75-3510 |
BOLT-SHOULDER Price: $14.55 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 27 |
93-3164 |
CAP Price: $11.64 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 28 |
93-3163 |
SPRING Price: $26.01 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 29 |
93-3165 |
BRACKET Price: $37.47 |
| 30 |
322-6 |
SCREW-HH Price: $0.45 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 31 |
3253-33 |
WASHER-LOCK Price: $1.19 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT This part replaces 532411933. Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
532401098 |
HARNESS IGN. DASH Price: $69.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 87 |
532197802 |
SWITCH.INTRLCK.CLUTCH. Price: $14.99 |
| 90 |
532400724 |
COVER.TERMINAL.BATTERY Price: $3.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
