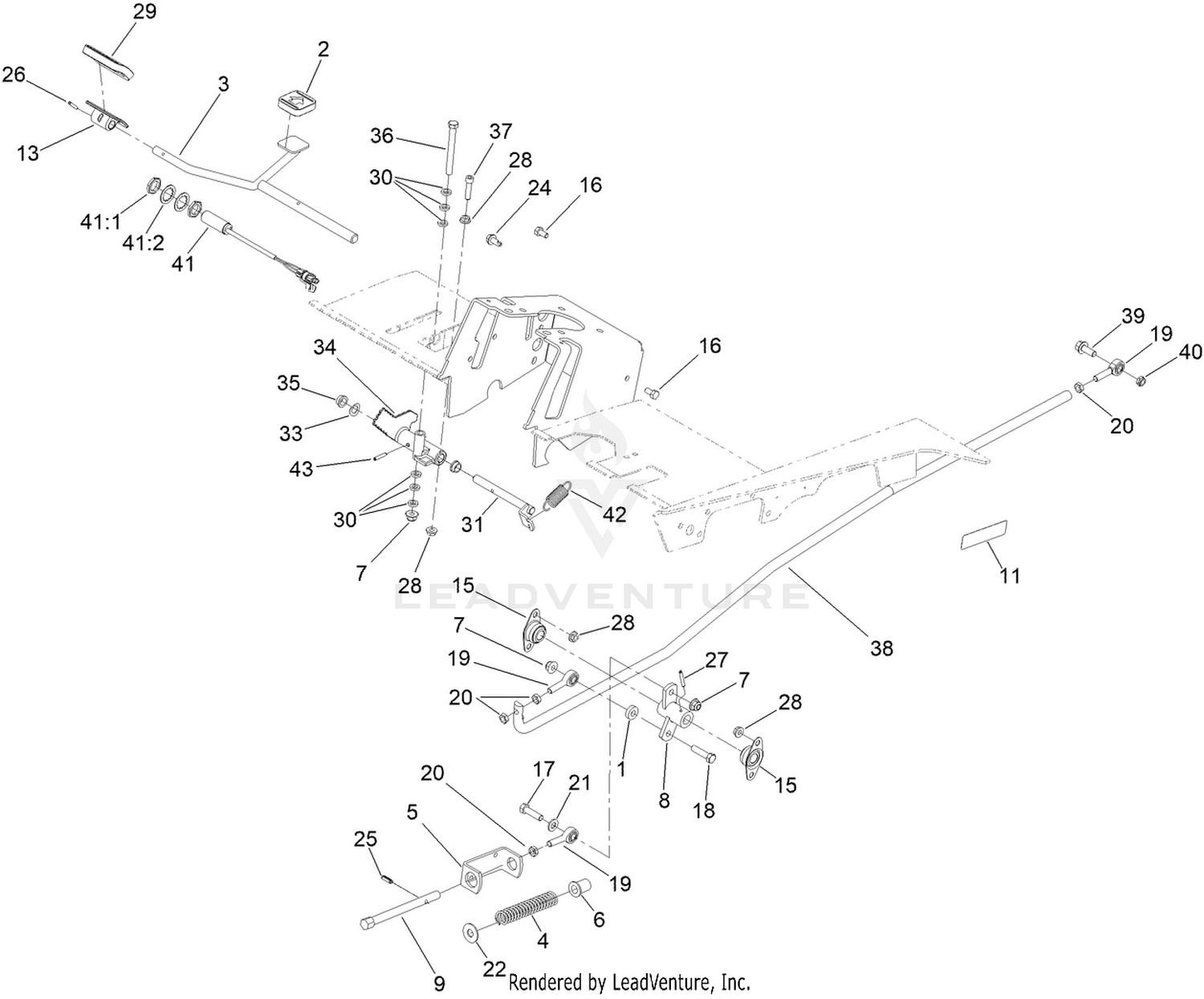

| Ref | Part Number | Description |
|---|
| 1 |
5-0652 |
SPACER Price: $5.35 |
| 2 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 3 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 4 |
84-9100 |
SPRING Price: $11.99 |
| 5 |
92-7608-03 |
BRACKET-SPRING Price: $16.86 |
| 6 |
92-7610 |
RETAINER-SPRING Price: $26.52 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 8 |
115-4380-0P |
PIVOT ASM-TRACTION HUB Price: $84.12 |
| 9 |
115-4383 |
SHAFT-SPRING Price: $38.84 |
| 11 |
133-8062 |
DECAL-ARRESTOR, SPARK Price: $2.39 |
| 13 |
117-9507 |
PEDAL-ACCELERATOR Price: $12.86 |
| 15 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 16 |
322-2 |
SCREW-HH Price: $0.69 |
| 17 |
323-29 |
SCREW-HH Price: $0.42 |
| 18 |
323-8 |
SCREW-HH Price: $1.20 |
| 19 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 20 |
3220-3 |
NUT-HJ Price: $0.28 |
| 21 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 22 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 24 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 25 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 26 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 27 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 28 |
32128-20 |
NUT-HF Price: $0.99 |
| 29 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 30 |
104662 |
SPACER Price: $5.84 |
| 31 |
106-3731 |
ROD-PIVOT Price: $36.19 |
| 33 |
110-8982 |
WASHER-SPRING Price: $2.71 |
| 34 |
145-5294 |
STOP-MOW Price: $141.97 |
| 35 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 36 |
323-15 |
SCREW-HH Price: $1.53 |
| 37 |
3274-18 |
SCREW-HSH Price: $8.88 |
| 38 |
130-1634-0P |
ROD-TRACTION Price: $249.70 |
| 39 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 40 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 41 |
115-5300 |
PROXIMITY SWITCH ASM Price: $137.95 |
| 42 |
92-7305 |
SPRING-EXTENSION Price: $9.99 |
