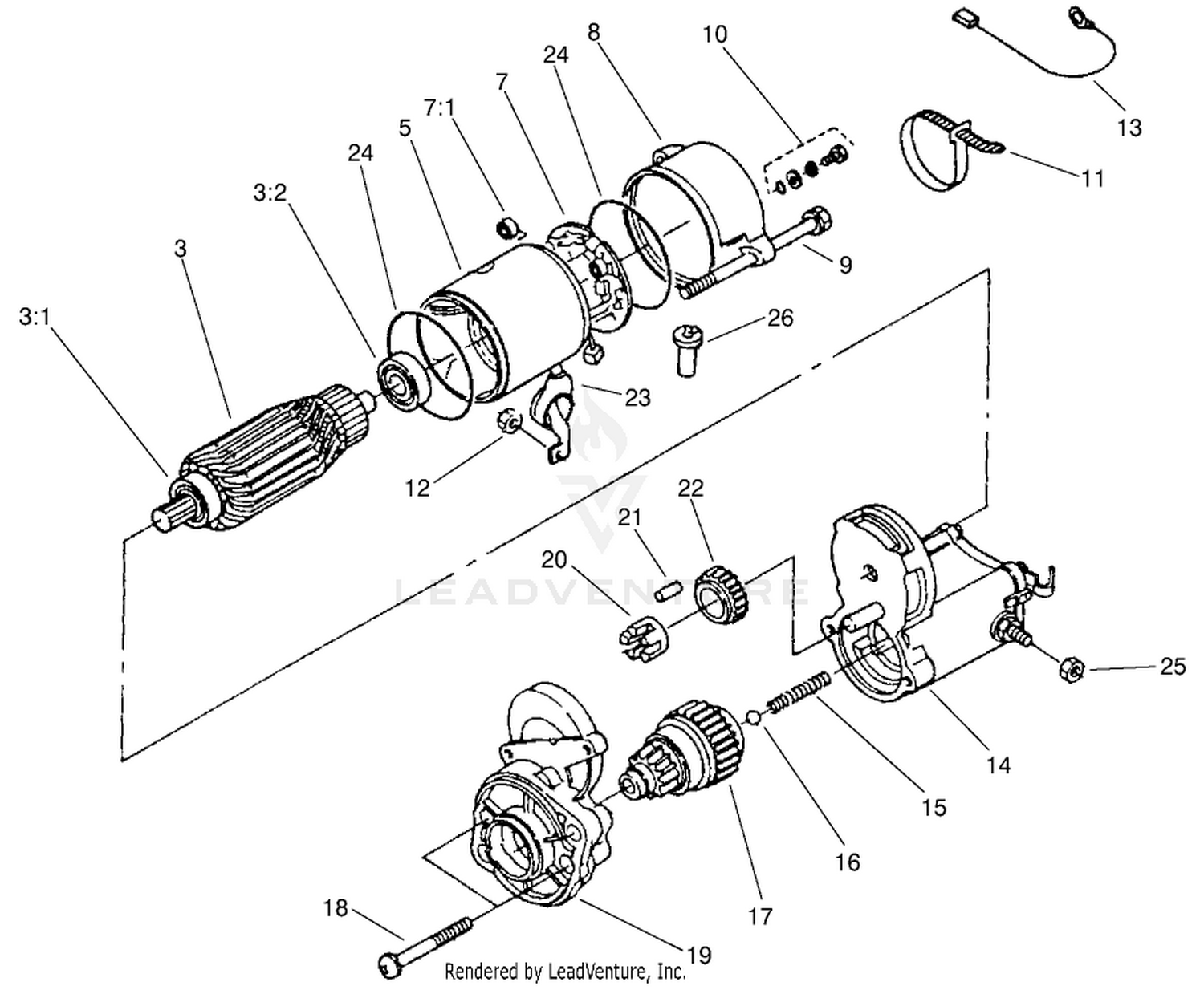

| Ref | Part Number | Description |
|---|
| 3 |
98-7742 |
ARMATURE ASM Price: $819.15 |
| 5 |
98-7741 |
YOKE ASM Price: $305.27 |
| 7 |
98-7749 |
BRUSH HOLDER ASM Price: $91.05 |
| 8 |
99-8370 |
FRAME-END Price: $79.75 |
| 9 |
100-9240 |
BOLT This part replaces 98-9549. Price: $7.23 |
| 10 |
98-7758 |
BOLT ASM Price: $4.90 |
| 11 |
250-4 |
TIE-CABLE This part replaces 98-9712. Price: $0.61 |
| 12 |
99-8371 |
NUT-HEX Price: $3.75 |
| 13 |
98-9711 |
CORD-SOLENOID, STOP Price: $12.05 |
| 14 |
99-8372 |
MAGNETIC SWITCH ASM Price: $528.24 |
| 15 |
98-7754 |
SPRING Price: $4.70 |
| 16 |
98-7755 |
BALL Price: $0.42 |
| 17 |
99-8373 |
CLUTCH-RUNNING, OVER Price: $691.80 |
| 18 |
98-7756 |
BOLT Price: $2.64 |
| 19 |
99-8374 |
FRAME-END, DRIVE Price: $73.04 |
| 20 |
98-7752 |
RETAINER Price: $4.35 |
| 21 |
98-7753 |
ROLLER Price: $1.00 |
| 22 |
98-7751 |
GEAR Price: $43.51 |
| 23 |
99-8375 |
COVER Price: $24.86 |
| 24 |
98-7757 |
O-RING Price: $24.98 |
| 25 |
99-8376 |
NUT-HEX Price: $7.28 |
