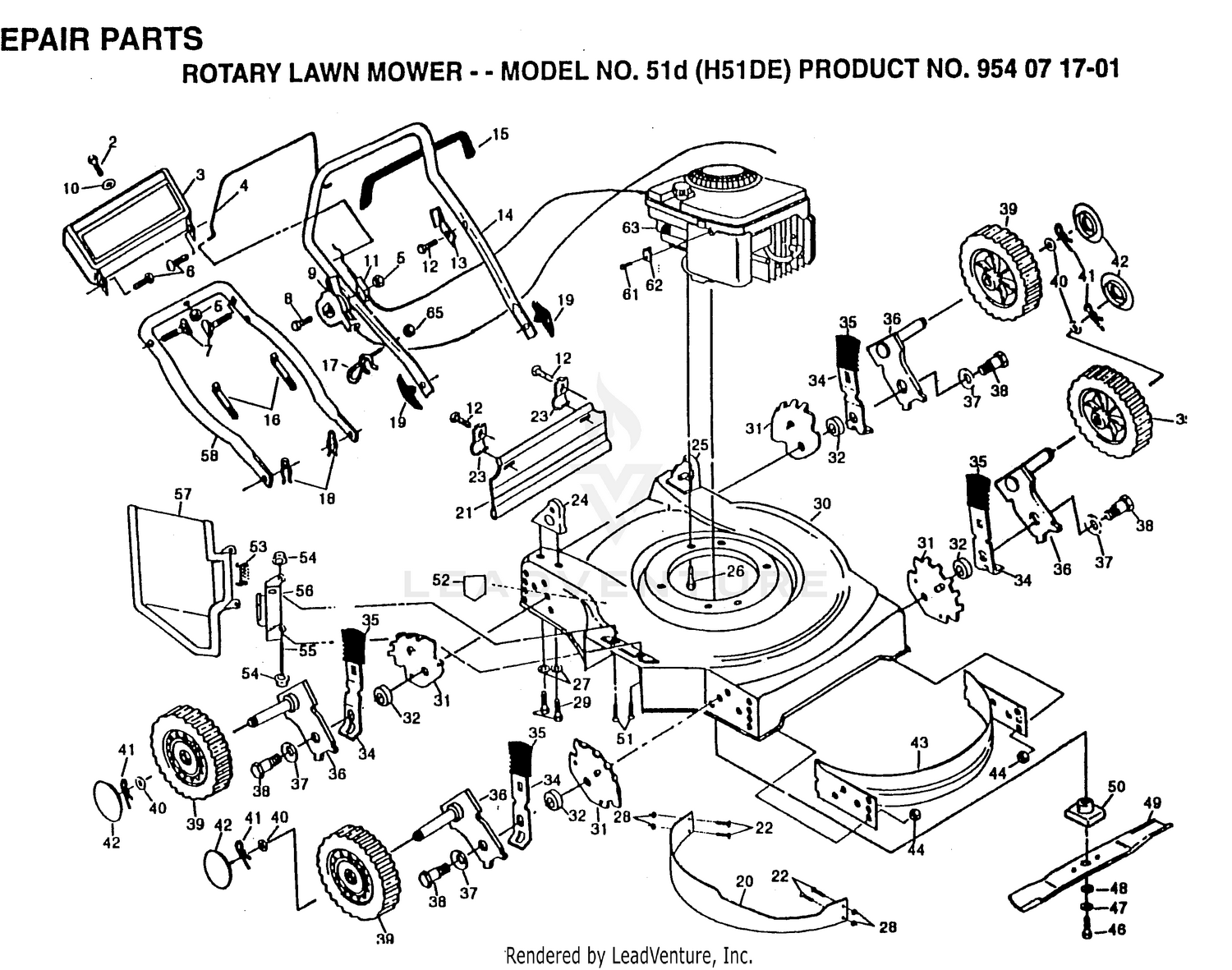

| Ref | Part Number | Description |
|---|
| 2 |
874760424 |
Bolt, Hex 1/4-20 x 1-1/2 This part replaces 532085436. Price: $2.42 |
| 3 |
532800547 |
TRIM PLATE Price: $7.15 |
| 4 |
532850735 |
CONTROL BAR/BLACK Price: $4.69 |
| 5 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 6 |
532036953 |
SCREW Price: $3.15 |
| 7 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532131959. Price: $9.99 |
| 8 |
532158755 |
SCREW.PAN.HEAD This part replaces 532144929. Price: $4.99 |
| 9 |
532700417 |
THROTTLE CONTROL Price: $17.99 |
| 10 |
532085723 |
WASHER PM Price: $2.99 |
| 11 |
532130861 |
CABLE.MZR.51.RT.SP./PU. Price: $10.99 |
| 12 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 13 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $4.99 |
| 14 |
532166268 |
UPPER HANDLE This part replaces 532125295. Price: $20.88 |
| 15 |
585161003 |
GRIP.HANDLE.FOAM.438MM This part replaces 532850724. Price: $4.99 |
| 16 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 17 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532132001. Price: $7.99 |
| 18 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 19 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532136376. Price: $9.99 |
| 21 |
532413160 |
SKIRT.REAR.22RD/SD.FO/VE This part replaces 532140543. Price: $11.99 |
| 23 |
532192301 |
BRACKET.SKIRT.BZP This part replaces 532125207. Price: $4.99 |
| 24 |
532192983 |
KIT HANDLE BRACKET LH/RH This part replaces 532140465. Price: $27.99 |
| 25 |
532192983 |
KIT HANDLE BRACKET LH/RH This part replaces 532140466. Price: $27.99 |
| 26 |
532150406 |
BOLT 3/8-16X1-1/8 This part replaces 532850998. Price: $4.99 |
| 27 |
532059289 |
STEEL WASHER Price: $3.99 |
| 28 |
532069180 |
LOCKNUT Price: $2.99 |
| 29 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532055187. Price: $4.99 |
| 31 |
532410807 |
BRACKET.ADJ.WHEEL.5POS.ADS This part replaces 532139901. Price: $3.99 |
| 32 |
532401629 |
SPACER.HEIGHT.ADJUSTER This part replaces 532084920. Price: $3.99 |
| 34 |
532401621 |
SPRING.SELECTOR.5POS.BZP This part replaces 532141730. Price: $4.99 |
| 35 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 36 |
532187930 |
KIT.ARM.ASM.AXLE.W/NUT.5 POS This part replaces 532125172. Price: $11.99 |
| 37 |
532062335 |
WASHER.BELLEVILLE (3 2 LB) Price: $7.99 |
| 38 |
532174719 |
BOLT SHOULDER 3/8 -16X1 This part replaces 532142748. Price: $7.99 |
| 39 |
532086984 |
PACKAGE.WHEEL.8 X 2 RADIAL Price: $14.99 |
| 40 |
596040101 |
Washers This part replaces 532052160. Price: $2.99 |
| 41 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 42 |
532850844 |
HUBCAP Price: $3.08 |
| 43 |
532700839 |
FRONT BAFFLE This part replaces 532138348. Price: $2.56 |
| 44 |
596322601 |
Nuts This part replaces 532751592. Price: $2.99 |
| 47 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 48 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 49 |
532145106 |
BLADE.20.MULCH.(50DK,6020MD) Price: $17.99 |
| 50 |
581547901 |
ADAPTOR.BLADE.7/8 This part replaces 532850977. Price: $14.99 |
| 51 |
817600406 |
SCREW 1/4X20 This part replaces 532851856. Price: $2.99 |
| 52 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $3.99 |
| 53 |
532411832 |
SPRING.SIDE.DISCHARGE This part replaces 532851855. Price: $4.99 |
| 54 |
532083731 |
PUSH-ON SPEED NUT Price: $3.99 |
| 55 |
532147286 |
ROD.HINGE.COMBI-C This part replaces 532851854. Price: $6.99 |
| 56 |
532147775 |
BRACKET.HINGE ASM.W/FIN This part replaces 532125175. Price: $3.99 |
| 58 |
532157081 |
HANDLE.LOWER.BLACK This part replaces 532125293. Price: $54.99 |
| 61 |
532083816 |
SCREW.HEX.HEAD.WASHER.10-16 Price: $4.99 |
| 65 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
