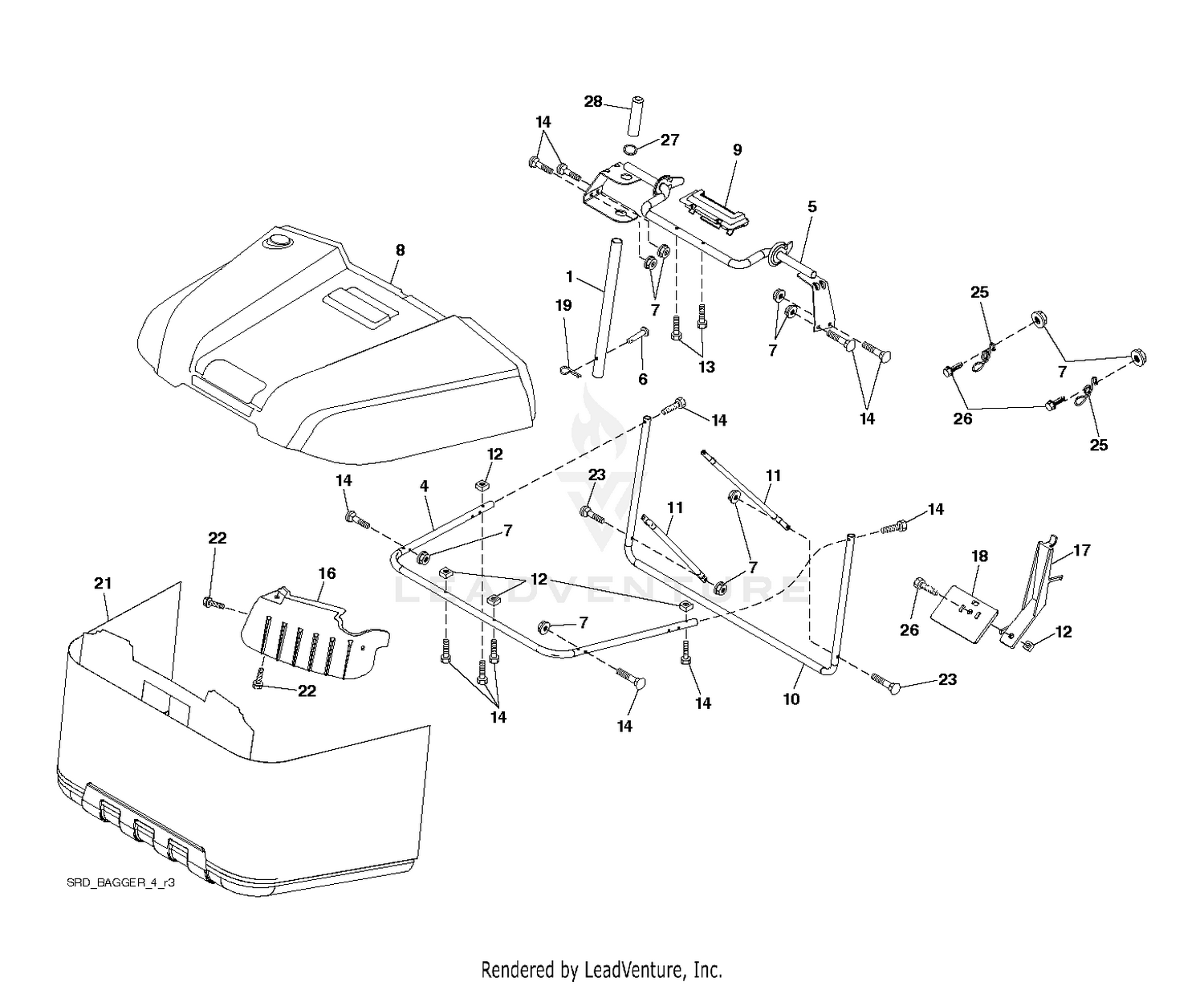

| Ref | Part Number | Description |
|---|
| 1 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 1 |
532428610 |
TUBE.PNT.HDL.BAGGER. Price: $11.99 |
| 2 |
32128-32 |
NUT-HHF Price: $2.69 |
| 3 |
74-2710 |
CLAMP-HOSE Price: $21.71 |
| 4 |
532439612 |
Price: $47.99 |
| 4 |
74-2730 |
TUBE Price: $5.97 |
| 5 |
532417632 |
Price: $95.99 |
| 5 |
93-9928 |
CLAMP-HOSE Price: $19.29 |
| 6 |
322-3 |
SCREW-HH Price: $0.79 |
| 6 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 7 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 7 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 873900400. Price: $2.69 |
| 8 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 8 |
532425954 |
Price: $88.99 |
| 9 |
532417629 |
Price: $36.05 |
| 9 |
69-9300 |
PAD-BUMPER Price: $8.68 |
| 10 |
32108-103 |
SCREW-FH Price: $0.68 |
| 10 |
532417190 |
Price: $42.99 |
| 11 |
532417188 |
Price: $14.99 |
| 11 |
93-9941-01 |
ARM-OUTER LIFT, RH Price: $1,714.96 |
| 11 |
93-9942-01 |
ARM-OUTER LIFT, LH Price: $1,714.96 |
| 12 |
532421793 |
Price: $2.99 |
| 12 |
71-2600 |
TUBE-ANTISWAY Price: $63.76 |
| 13 |
532421780 |
Price: $2.99 |
| 13 |
69-9240 |
ROLLER-CAM Price: $42.48 |
| 14 |
256-76 |
BUSHING Price: $4.07 |
| 14 |
532421800 |
Price: $2.99 |
| 15 |
32121-34 |
PIN-ROLL Price: $1.31 |
| 16 |
532421566 |
Price: $9.99 |
| 16 |
69-9250 |
PIN-ROLLER Price: $59.77 |
| 17 |
3219-7 |
NUT-HEX Price: $1.53 |
| 17 |
532421749 |
Price: $8.99 |
| 18 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 18 |
532421750 |
Price: $8.99 |
| 19 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $1.99 |
| 20 |
98-3311-01 |
ARM-ANTI SWAY, LH Price: $273.32 |
| 20 |
98-3312-01 |
ARM-ANTI SWAY, RH Price: $311.03 |
| 21 |
532429983 |
Price: $51.99 |
| 21 |
82-7900 |
ARM-SHAFT Price: $194.77 |
| 22 |
3220-7 |
NUT-JAM Price: $4.09 |
| 22 |
532142432 |
SCREW.HI-LO.CONSOLE Price: $3.99 |
| 23 |
2411-40 |
END-ROD Price: $195.97 |
| 23 |
872040410 |
BOLT Price: $3.99 |
| 24 |
3253-9 |
WASHER-LOCK Price: $1.02 |
| 25 |
532421614 |
Price: $2.99 |
| 25 |
98-1452 |
WASHER-THRUST Price: $0.94 |
| 26 |
32151-10 |
RING-RETAINING Price: $0.81 |
| 26 |
874760412 |
Bolt Hex Hd 1/4-20 unc x 3/4 This part replaces 817490412. Price: $3.99 |
| 27 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 27 |
532421262 |
Price: $2.99 |
| 28 |
71-2620 |
SHAFT-ELBOW, LIFT ARM Price: $222.47 |
| 29 |
321-15 |
SCREW-HH Price: $0.61 |
| 30 |
94-6772-01 |
RETAINER Price: $17.47 |
| 31 |
93-9912 |
GROMMET Price: $14.93 |
| 32 |
93-9925-01 |
ARM-LIFT, RH Price: $2,514.65 |
| 32 |
93-9926-01 |
ARM-LIFT, LH Price: $2,514.68 |
