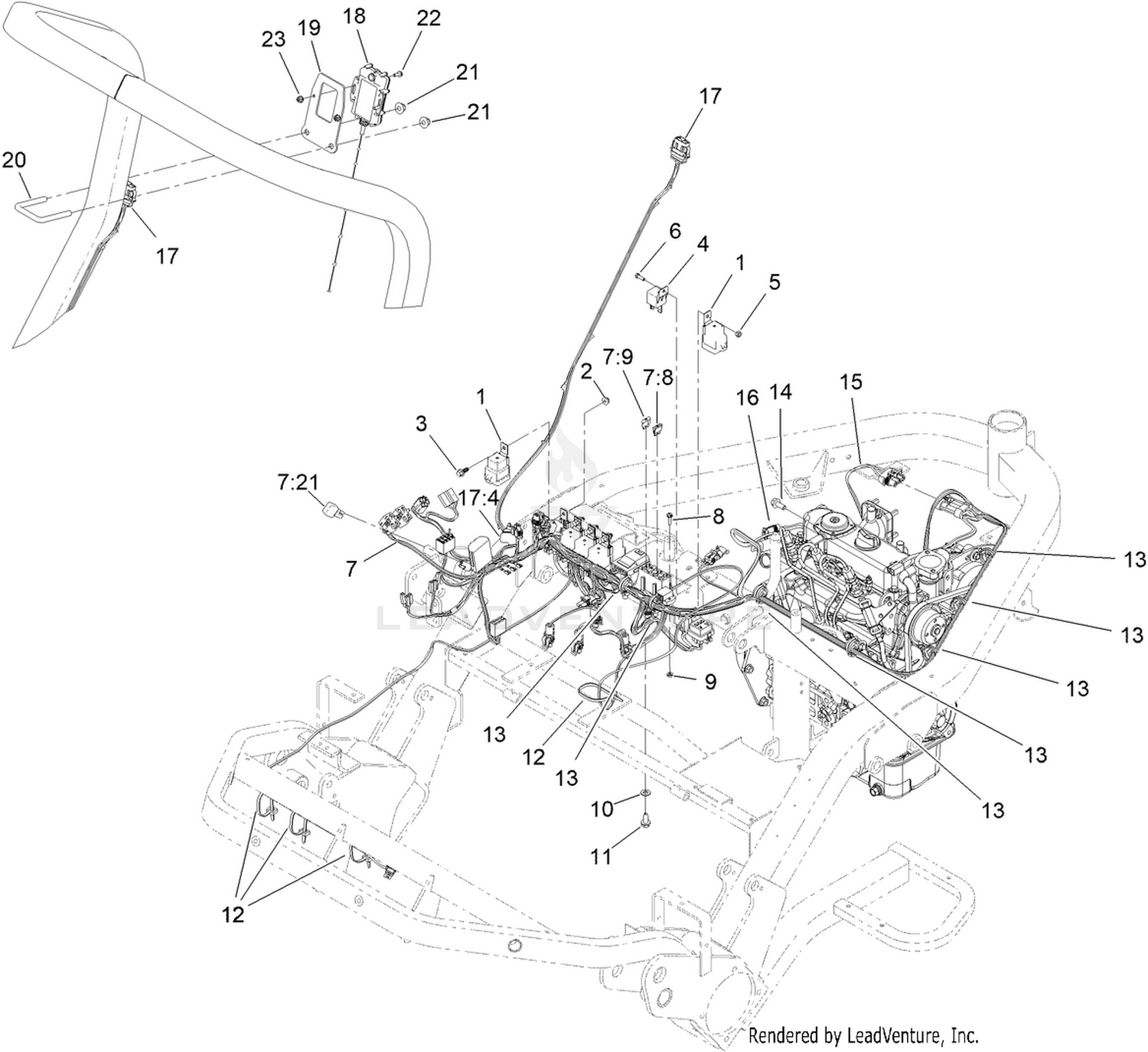

Electrical Harness Assembly
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 99-7430 | RELAY-MINI Price: $22.99 |
| 2 | 104-7201 | NUT-HF Price: $0.69 |
| 3 | 99-6810 | SCREW-HHF Price: $3.09 |
| 4 | 99-7435 | RELAY Price: $32.43 |
| 5 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 6 | 3290-134 | SCREW Price: $0.27 |
| 7 | 122-1392 | HARNESS-WIRE Price: $1,093.48 |
| 8 | 32105-13 | SCREW-HWH Price: $1.59 |
| 9 | 32149-7 | NUT-KEPS Price: $0.27 |
| 10 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 11 | 32104-32 | SCREW-HWH Price: $1.99 |
| 12 | 3290-378 | TIE-CABLE Price: $0.79 |
| 13 | 32180-030 | CLIP-TIE Price: $4.19 |
| 14 | 33104-020 | SCREW-HHF Price: $2.07 |
| 15 | 99-3441 | HARNESS-WIRE, FUSIBLE LINK Price: $146.90 |
| 16 | 120-6325 | HARNESS-WIRE, GROUND Price: $24.62 |
| 17 | 122-2161 | HARNESS-WIRE Price: $126.49 |
| 18 | 122-3876 | GATEWAY-TELEMATICS LITE Price: $439.99 |
| 19 | 161-4731 | BRACKET- TELEMATIC Price: Call Us |
| 20 | 104-9082 | U-BOLT Price: $9.50 |
| 21 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 22 | 137-3030 | SCREW-HWH Price: $0.43 |
