| Ref | Part Number | Description |
|---|
| 1 |
32151-41 |
RING-SNAP Price: $0.41 |
| 4 |
93-3614 |
COVER ASM Price: $222.48 |
| 5 |
354-46 |
RING-SEAL Price: $16.74 |
| 6 |
104-7712 |
LOAD PLATE ASM This part replaces 74-3810. Price: $229.38 |
| 7 |
93-3615 |
DRIVE SHAFT AND GEAR ASM Price: $436.97 |
| 8 |
93-3616 |
IDLER SHAFT AND GEAR ASM Price: $273.11 |
| 9 |
354-50 |
SCREW-HSH Price: $3.60 |
| 10 |
354-51 |
WASHER Price: $0.47 |
| 11 |
353-599 |
PIN-DOWEL Price: $2.65 |
| 12 |
92-8795 |
BODY ASM Price: $497.61 |
| 13 |
92-8796 |
DISCONTINUED Price: Call Us |
| 502255201 |
502255201 |
Spool Price: $28.43 |
| 502255301 |
502255301 |
BUTTON Price: $5.99 |
| 502255601 |
502255601 |
SPRING Price: $3.99 |
| 502260101 |
502260101 |
Retainer Price: $8.22 |
| 502260301 |
502260301 |
Base Plate Price: $24.60 |
| 502260401 |
502260403 |
HOUSING This part replaces 502260401. Price: $27.99 |
| 502260801 |
578447801 |

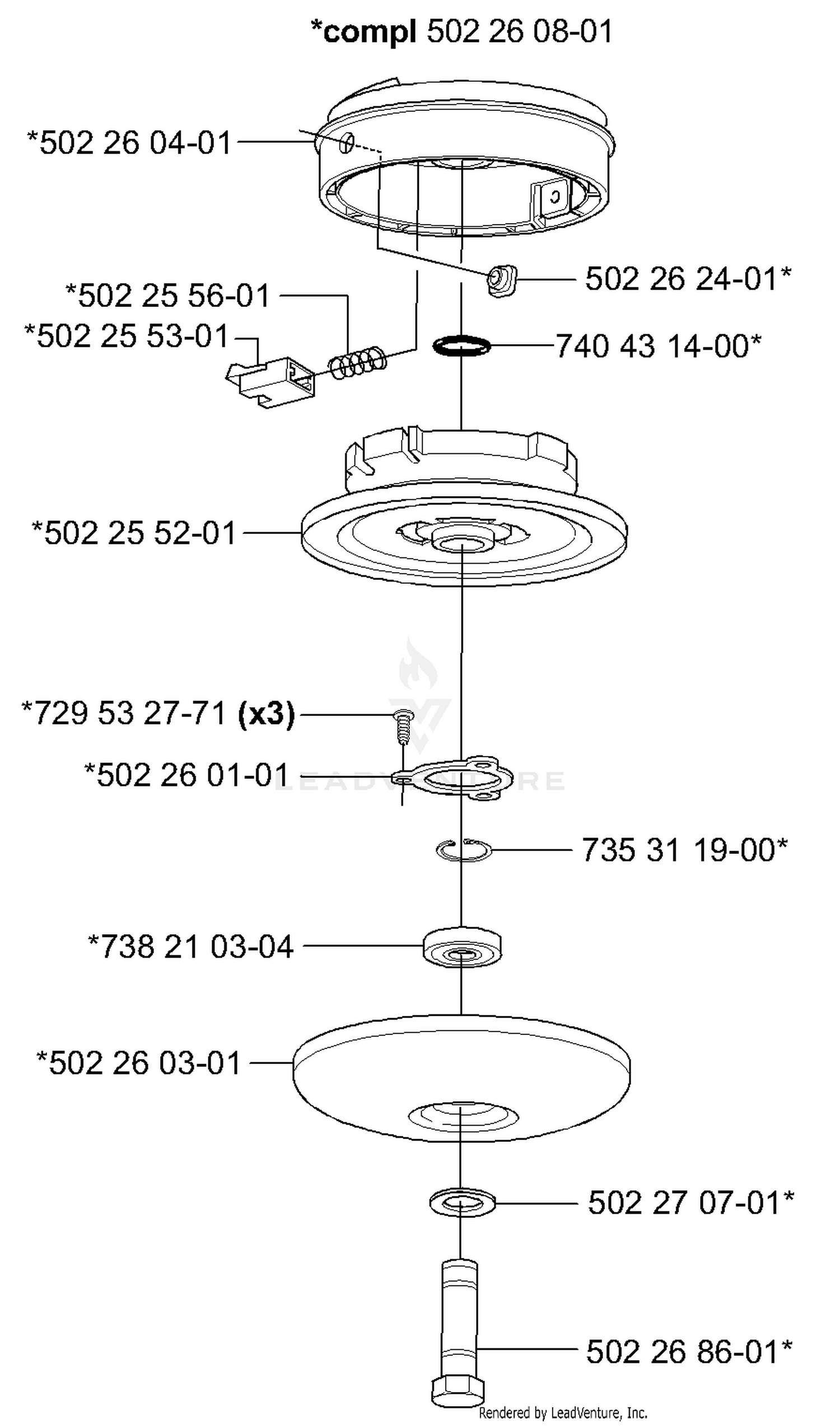

TRIMER HEAD TRIMMY SII M12 L This part replaces 502260801. Price: $48.25 |
| 502262401 |
502262401 |
EYELET Price: $6.99 |
| 502268601 |
502268601 |
ADAPTER Price: $24.99 |
| 502270701 |
502270701 |
WASHER Price: $2.99 |
| 729532771 |
729532771 |
Screw Price: $2.99 |
| 738210304 |
738210304 |
Ball Bearing 6003-2rs1 Price: $30.09 |
| 740431400 |
740431400 |
Washer Price: $1.99 |
