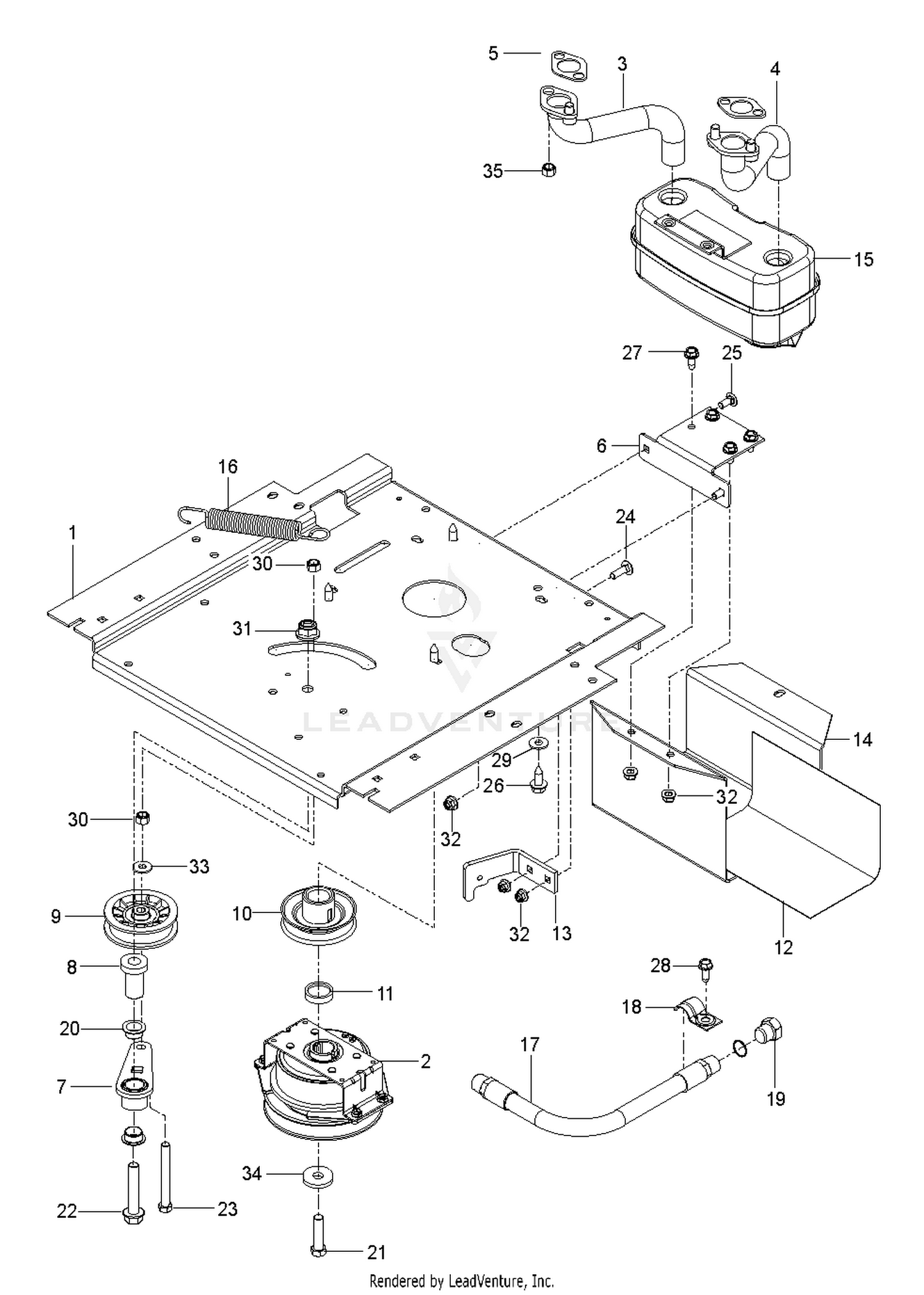

| Ref | Part Number | Description |
|---|
| 000000000 |
| |
Engine, Kawasaki FX691V 23 HP. For engine replacement parts, see a Kawasaki dealer. Price: Call Us 000000000 |
| 1 |
593898602 |
PLATE ENGINE; RZ, 23IN BLACK Price: $149.99 |
| 2 |
587241601 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 Price: $229.99 |
| 3 |
583955701 |
TUBE.EXHAUST.RH.FR961/FR730 Price: $24.99 |
| 4 |
583955601 |
TUBE.EXHAUST.LH.FR961/FR730 Price: $24.99 |
| 5 |
532178151 |
GASKET Price: $4.99 |
| 6 |
581886702 |
BRACKET MUFFLER MS431BLK Price: $19.99 |
| 7 |
583593901 |
ARM.IDLER This part replaces 532448145. Price: $11.99 |
| 8 |
582538902 |
SPINDLE.IDLER Price: $4.99 |
| 9 |
531350601 |
PULLEY IDLER, BACKSIDE 3 INCH This part replaces 539110311. Price: $19.99 |
| 10 |
587537401 |
PULLEY.ENGINE Price: $22.99 |
| 12 |
539132859 |
HEAT SHIELD Price: $22.99 |
| 13 |
587633302 |
CLUTCH.STOP.OGURA LCC.BLACK Price: $7.99 |
| 14 |
587451202 |
GUARD.MUFFLER.WO.TOW.HITCHX431 Price: $44.99 |
| 15 |
539131604 |
MUFFLER ASM TWIN Price: $39.99 |
| 16 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 17 |
584825501 |
HOSE.ASSEMBLY.OIL.DRAIN Price: $27.99 |
| 18 |
539101363 |
CLAMP Price: $2.99 |
| 19 |
585807101 |
PLUG OIL DRAIN Price: $2.99 |
| 20 |
501603701 |
BEARING.FLANGED.PLASTIC.3/4ID Price: $5.99 |
| 21 |
581332806 |
Bolts Price: $6.99 |
| 22 |
582539502 |
Bolts Price: $5.99 |
| 23 |
596433901 |
Screws Price: $2.99 |
| 24 |
595901501 |
Bolts Price: $3.99 |
| 25 |
595901601 |
GSPW Bolts Price: $2.99 |
| 26 |
596564402 |
Bolts Price: $1.99 |
| 27 |
596135901 |
Bolts Price: $1.99 |
| 28 |
596637301 |
Screws Price: $2.99 |
| 29 |
596238701 |
Washers Price: $3.99 |
| 30 |
596240901 |
GSPW Nuts Price: $2.99 |
| 31 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL Price: $3.99 |
| 32 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST Price: $5.99 |
| 33 |
596134901 |
GSPH Price: $2.99 |
| 34 |
532126197 |
WASHER Price: $6.99 |
| 35 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 589543901 |
KIT.ARM.IDLER.RZ |
Price: $32.99 589543901 |
