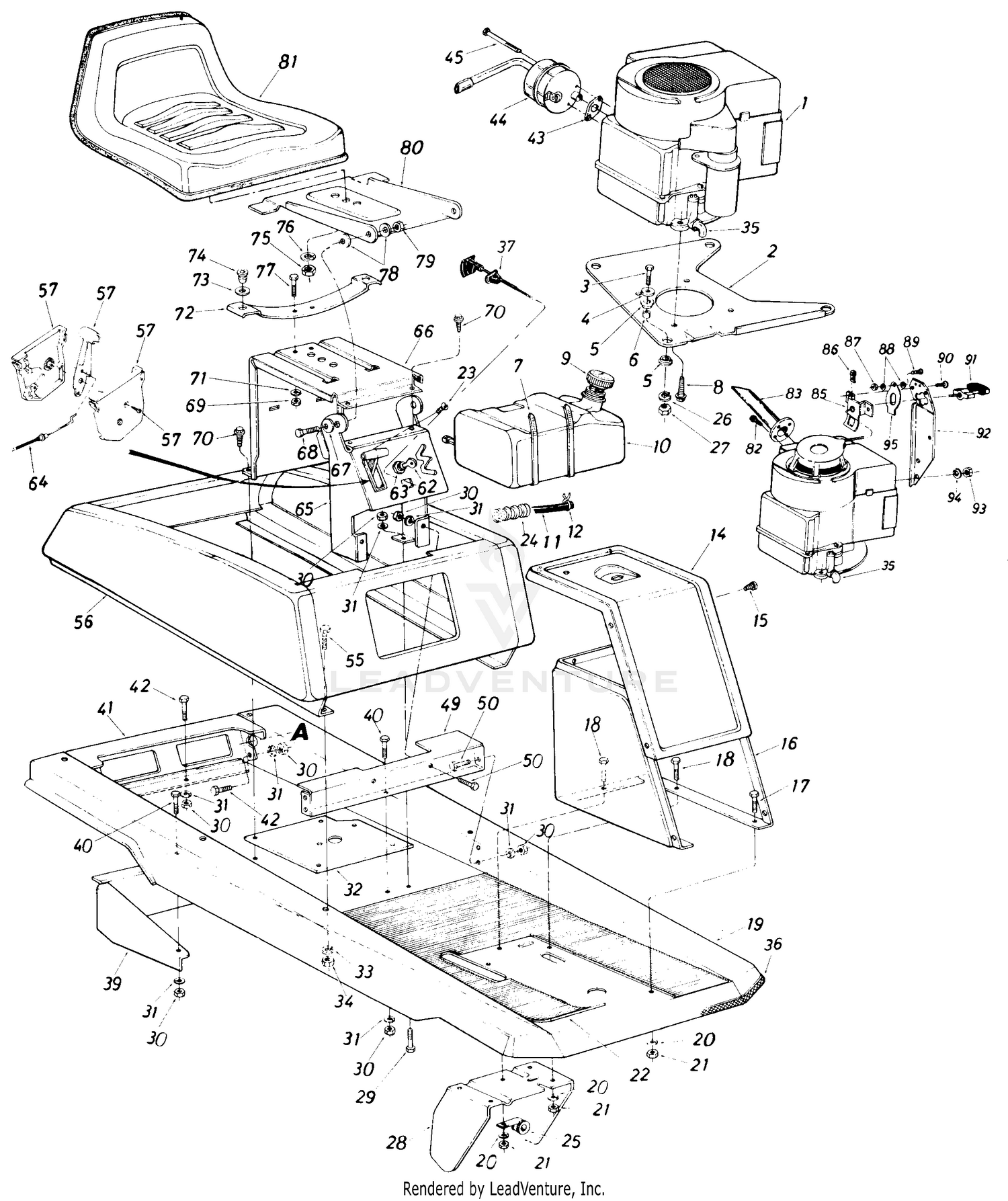

| Ref | Part Number | Description |
|---|
| 1 |
N/A |
Engine |
| 2 |
15572A-0637 |
ENGINE PLATE MTG Not Available This part replaces 15572. Price: |
| 3 |
710-0672 |
Hex Bolt 5/16-24 x 1.25" Lg. This part replaces 710-0158. Price: $3.85 |
| 4 |
736-0231 |
Fl-Wash. .330" I.D. x 1.125" O.D. Price: $4.02 |
| 5 |
722-0153 |
Engine Mounting Grommet Price: $2.93 |
| 6 |
950-0539 |
SPACER Not Available This part replaces 750-0539. Price: |
| 7 |
726-0230 |
Cable Tie This part replaces 726-0209. Price: $23.95 |
| 8 |
710-0502A |
Hx Wash Hd. Scr. 3/8-16 x 1.25" This part replaces 710-0502. Price: $5.71 |
| 9 |
723-0155 |
GAUGE-GAS Not Available Price: |
| 10 |
751-0368 |
FUEL TANK 1.6 G Not Available Price: |
| 11 |
751-22813-24 |
FUEL HOSE 1/4-24" This part replaces 751-0173. Price: $27.48 |
| 12 |
726-0207 |
HOSE CLAMP Not Available Price: |
| 14 |
N/A |
Refer to Page 1 |
| 15 |
N/A |
Refer to Page 1 |
| 16 |
N/A |
Refer to Page 1 |
| 17 |
N/A |
Refer to Page 1 |
| 18 |
N/A |
Refer to Page 1 |
| 19 |
N/A |
Refer to Page 1 |
| 20 |
N/A |
Refer to Page 1 |
| 21 |
N/A |
Refer to Page 1 |
| 22 |
735-0220 |
FLOOR MAT Not Available Price: |
| 23 |
710-0779A |
Truss Mach. AB-Tap Scr. #10 x .5" Lg. This part replaces 710-0779. Price: $3.85 |
| 24 |
731-0757 |
CONVOLUTED CONDUIT Not Available Price: |
| 25 |
726-0175 |
CLAMP Not Available Price: |
| 26 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 27 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 28 |
15562 |
CLUTCH-BRAKE PEDAL ASS'Y. Not Available Price: |
| 29 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg Price: $3.76 |
| 30 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 31 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 32 |
15588 |
Mounting Brkt. Variable Speed Pulley Price: Call Us |
| 33 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 34 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 36 |
731-0511 |
Trim Strip 18" Lg. Price: $3.29 |
| 37 |
746-0614A |
Choke Control 38" Lg. This part replaces 746-0614. Price: $22.93 |
| 39 |
15553 |
SUPPORT ASSY-TRANS Not Available Price: |
| 40 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 41 |
15571 |
PANEL-FRAM Not Available Price: |
| 42 |
710-3039 |
SCREW 5/16-18 x .50 GR5 Not Available This part replaces 710-0621. Price: |
| 49 |
15604 |
BRACKET-SE Not Available Price: |
| 50 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg.* Price: $3.76 |
| 55 |
910-0289 |
Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15 |
| 56 |
N/A |
Refer to Page 1 |
| 57 |
831-0796A |
Throttle Control Box Ass'y. This part replaces 831-0796. Price: $20.36 |
| 62 |
925-0201 |
Key This part replaces 725-0201. Price: $8.70 |
| 63 |
925-0267B |
Ignition Switch This part replaces 725-0267. Price: $33.31 |
| 65 |
16483 |
BRACKET-SEAT Not Available Price: |
| 66 |
15606 |
KIT-SEAT BRKT ASSY Not Available Price: |
| 67 |
736-0242 |
Bell-Wash. .345" I.D. x .88" O.D. Price: $3.75 |
| 68 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 69 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 70 |
710-1260A |
Hex Wash. Hd. Scr. 5/16-18 x .75" This part replaces 710-0601. Price: $3.34 |
| 71 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 72 |
732-0431 |
Seat Spring Price: Call Us |
| 73 |
736-0160 |
Fl-Wash. .531" I.D. x .930" O.D. Price: $3.90 |
| 74 |
731-0555 |
GROMMET Not Available Price: |
| 75 |
712-0206 |
HEX NUT This part replaces 7120206. Price: $3.90 |
| 76 |
736-0921 |
L-Wash. 1/2" I.D.* Price: $3.90 |
| 77 |
710-0118 |
Hex Bolt 1/4-20 x .75 Lg. Price: $3.76 |
| 78 |
736-0242 |
Bell-Wash. .345" I.D. x .88" O.D. Price: $3.75 |
| 79 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 80 |
783-0039A |
SEAT PIVOT BRACKET Not Available This part replaces 15607. Price: |
| 81 |
757-0264 |
SEAT Not Available Price: |
