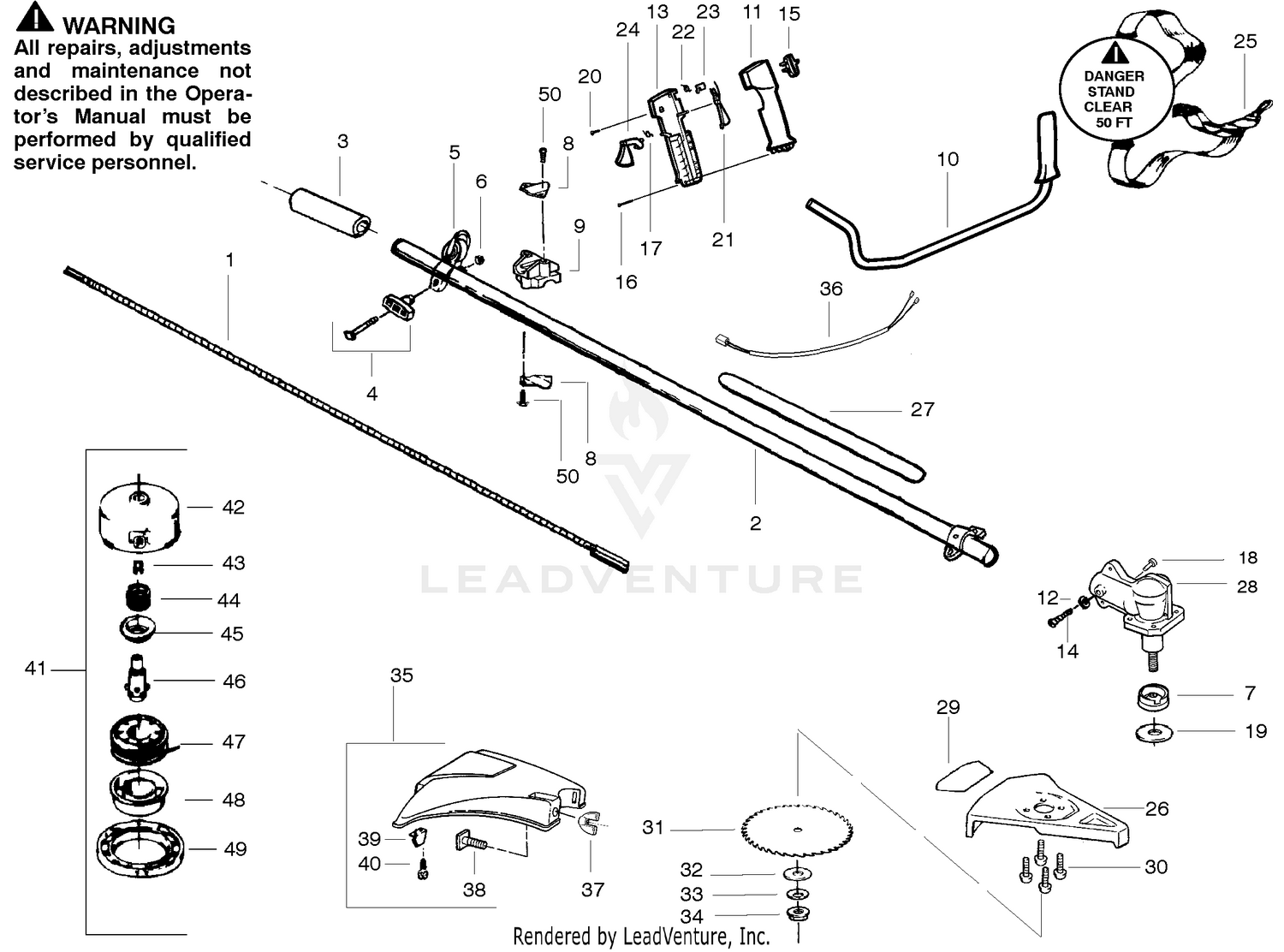

Shaft
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530094566 | Flex-Shaft-57" Price: $54.99 |
| 1 | SGH08454 | HEAD-TINE, ADAPTER Price: $267.45 |
| 2 | 530069783 | Drive Shaft Housing Price: $74.99 |
| 2 | SG715754 | SHANK-ADAPTER Price: $15.40 |
| 3 | 530027706 | Pad-Drive Shaft Price: Call Us |
| 4 | 530069347 | HANDLE KIT This part replaces 530069252. Price: $4.99 |
| 5 | 530094686 | Clamp Harness Assy. Price: $4.99 |
| 6 | 530015197 | Nut Price: $1.99 |
| 7 | 530016166 | Dust Cup Price: $11.99 |
| 8 | 530094572 | Handlebar Bracket Price: $1.99 |
| 9 | 530012207 | Clamp-Handlebar Price: $8.99 |
| 10 | 530047139 | Handlebar Ass'y. Price: $34.99 |
| 11 | 502208502 | Throttle Hsg. Left Price: $6.99 |
| 12 | 530015328 | Lockwasher-Locator Price: $1.99 |
| 13 | 502208602 | Throttle Hsg. Right Price: $3.99 |
| 14 | 530016140 | Screw-Locator Price: $1.99 |
| 15 | 503718201 | Rocker Switch Price: $9.99 |
| 16 | 503210738 | Screw Price: $1.99 |
| 17 | 502199301 | Trigger Spring Price: $0.99 |
| 18 | 530015650 | Screw-Pinch Clamp Price: $1.99 |
| 19 | 530016167 | Washer-Blade Ret. Price: $4.99 |
| 20 | 503210719 | Screw Price: $1.99 |
| 21 | 502199403 | Throttle Lockout Price: $1.99 |
| 22 | 530403152 | Spring Throttle Lock Price: $1.99 |
| 23 | 502209602 | Throttle Lock Price: $1.99 |
| 24 | 502199203 | Throttle Trigger Price: $5.99 |
| 25 | 530094417 | Shoulder Strap Price: $20.65 |
| 26 | 530069780 | Blade Shield Kit Price: $19.99 |
| 27 | 530038908 | Shaft Warning Decal Price: Call Us |
| 28 | 530071585 | Kit--Gear Box Ass'y. This part replaces 530095409. Price: $54.99 |
| 29 | 530049211 | Decal Blade Direction Price: $1.99 |
| 30 | 530016141 | Screw Price: $1.99 |
| 31 | 952701610 | Brush Blade Price: Call Us |
| 32 | 530015792 | Washer-Flat Price: $1.99 |
| 33 | 530016240 | Washer--Belleville This part replaces 530015492. Price: $1.99 |
| 34 | 530015793 | Nut-Flange Price: $1.99 |
| 36 | 530053255 | Wire Harness Ass'y. Price: $5.99 |
| 37 | 530091373 | Nut This part replaces 530401992. Price: $1.99 |
| 38 | 530015820 | Bolt Price: $1.99 |
| 39 | 530095387 | Line Limiter Price: $1.99 |
| 40 | 530015805 | Screw Price: $1.99 |
| 42 | 530071295 | Hub This part replaces 530093896. Price: $14.99 |
| 43 | 530093898 | Line Saver Price: $3.99 |
| 44 | 530340007 | Spring Price: $1.99 |
| 45 | 530328929 | Cap Spring Price: $1.99 |
| 46 | 530071295 | Hub This part replaces 530095121. Price: $14.99 |
| 47 | 952701589 | Accy-Spool w/line Price: $5.95 |
| 48 | 530401183 | Release Button Price: $2.99 |
| 49 | 530092133 | Cover Price: $5.99 |
| 50 | 530015791 | Screw Price: $1.99 |
