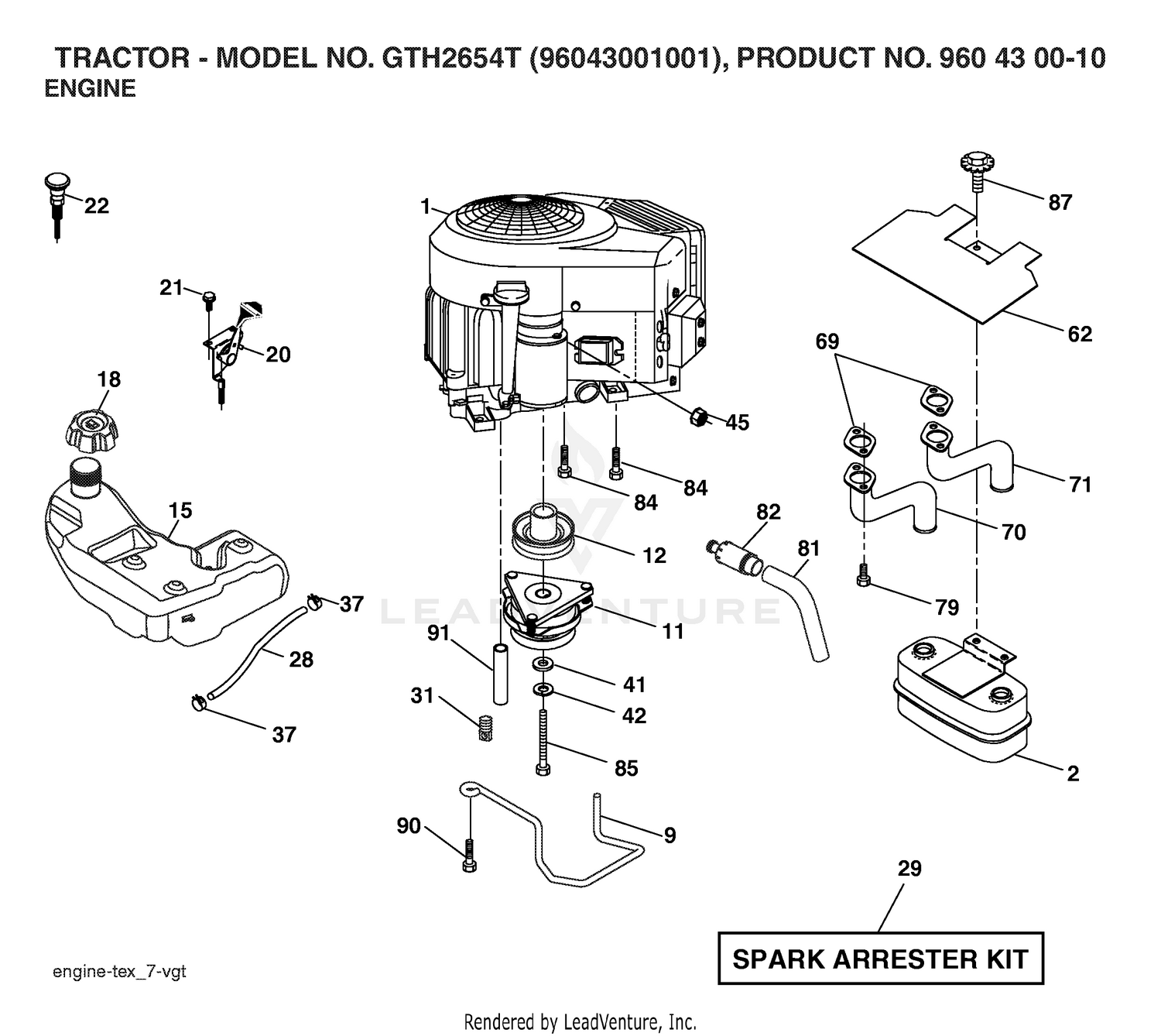

| Ref | Part Number | Description |
|---|
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
115-3443 |
CRANKCASE ASM Price: $1,731.92 |
| 11 |
532179335 |
CLUTCH MZ ZTR GT.48/54"1.125" Price: $299.99 |
| 12 |
532194343 |
PULLEY ENGINE Price: $39.99 |
| 15 |
532193499 |
TANK.FUEL.4GAL Price: $69.99 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 This part replaces 532194267. Price: $14.99 |
| 20 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 20 |
98-9398 |
CAP-SEALING Price: $6.08 |
| 21 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
98-7539 |
CAP-SEALING Price: $6.44 |
| 31 |
532145006 |
PUSH CLIP Price: $2.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 40 |
98-9687 |
PLUG This part replaces 98-7540. Price: $2.86 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 50 |
105-3779 |
PLUG Price: $8.05 |
| 60 |
98-9597 |
PLUG Price: $17.66 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 70 |
98-7487 |
PLUG Price: $3.18 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 80 |
98-9379 |
PLUG-EXPANSION Price: $0.76 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 84 |
817060624 |
SCREW 3/8-16 X 1-1/2 Price: $4.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 87 |
532198239 |
BOLT.5/16-18UNCX1.W/SEMS.BLK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 90 |
98-9668 |
PLUG-EXPANSION Price: $2.17 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 100 |
98-9375 |
PIN-STRAIGHT Price: $0.41 |
| 110 |
98-9377 |
PIN-STRAIGHT Price: $1.00 |
| 120 |
98-9376 |
PIN-STRAIGHT Price: $0.41 |
| 130 |
98-9387 |
PIN-PIPE Price: $2.92 |
| 140 |
98-9539 |
PIN-PIPE Price: $1.15 |
| 150 |
98-9599 |
PLUG Price: $6.08 |
| 160 |
98-9630 |
PIN-SPRING, START Price: $1.47 |
| 170 |
98-9675 |
PLUG Price: $8.54 |
| 180 |
98-9656 |
BUSHING-GOVERNOR, GEAR Price: $29.04 |
| 190 |
120-2559 |
PLUG Price: $1.19 |
| 200 |
98-7428 |
GASKET Price: $0.68 |
| 210 |
99-3447 |
PLUG Price: $3.11 |
| 220 |
106-7056 |
GASKET Price: $1.48 |
