| Ref | Part Number | Description |
|---|
| 0 |
640154 |
CARBURETOR Price: $68.06 |

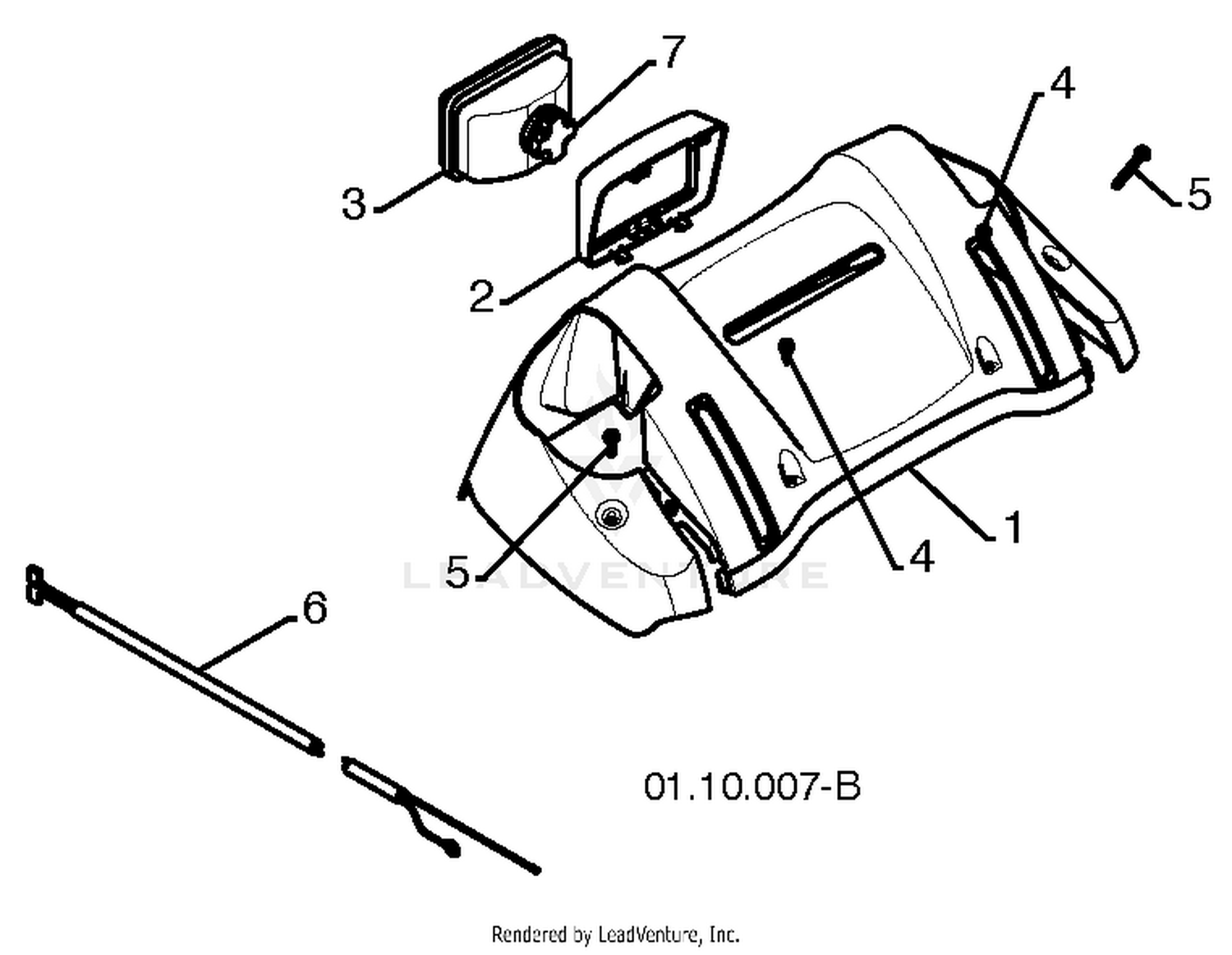

| 1 |
532182906 |
PANEL.CONSOLE.SNOW Price: $32.99 |
| 1 |
631776A |
SHAFT & LEV Price: $12.00 |
| 1 |
95-9200 |
PLUG Price: $4.78 |
| 2 |
532178668 |
BEZEL.HEADLIGHT.BLACK Price: $4.99 |
| 2 |
631970 |
RET SPRING Price: $3.00 |
| 2 |
95-9198 |
O-RING Price: $9.31 |
| 3 |
532180927 |
HEADLIGHT.FLOOD.SNOW Price: $37.99 |
| 3 |
95-9197 |
E-CLIP Price: $4.77 |
| 4 |
532184471 |
SCREW, HEX HEAD, TAPPING Price: $2.99 |
| 4 |
631184 |
WASHER Price: $1.25 |
| 4 |
95-9199 |
O-RING Price: $14.65 |
| 5 |
108-3264 |
SEAL-VITON Price: $10.14 |
| 5 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 5 |
631183 |
WASHER Price: $1.25 |
| 6 |
108-3265 |
O-RING-VITON Price: $10.82 |
| 6 |
532445029 |
HARNESS.WIRE.FLOOD.(HEADLIGHT) Price: $9.99 |
| 6 |
640109 |
SHUTTER Price: $9.43 |
| 7 |
650506 |
SCREW Price: $0.87 |
| 7 |
95-9196 |
TURRET Price: $15.10 |
| 8 |
41003 |
DIAPHRAGM Price: $1.90 |
| 9 |
95-9193 |
CAP-DIAPHRAM Price: $8.30 |
| 10 |
632740 |
SHAFT & LEV Price: $4.26 |
| 10 |
95-9192 |
BODY-SPLIT EYELET Price: $14.45 |
| 11 |
632043 |
SPRING Price: $1.25 |
| 11 |
95-9191 |
O-RING Price: $1.86 |
| 12 |
631184 |
WASHER Price: $1.25 |
| 12 |
99-0811 |
SCREW-CLAMP Price: $8.69 |
| 13 |
631183 |
WASHER Price: $1.25 |
| 13 |
99-0812 |
CLAMP-UPPER Price: $5.84 |
| 14 |
640261 |
SHUTTER This part replaces 632799. Price: $1.20 |
| 14 |
99-0814 |
PIN-PIVOT Price: $2.90 |
| 15 |
630735 |
SPRING Price: $1.25 |
| 15 |
95-9201 |
SHANK-HOSE Price: $7.82 |
| 16 |
632164 |
FUEL FITTING Price: $5.95 |
| 17 |
651025 |
SCREW Price: $1.18 |
| 18 |
630766 |
SPRING Price: $1.25 |
| 20 |
640027 |
FUEL JET Price: $2.60 |
| 20A |
640053 |
CAP Price: $0.81 |
| 25 |
631951 |
FLOAT BOWL Price: $12.35 |
| 27 |
631024 |
FLOAT SHAFT Price: $1.17 |
| 28 |
632816 |
FLOAT This part replaces 632802. Price: $5.90 |
| 29 |
631028A |
GASKET This part replaces 631028. Price: $1.95 |
| 30 |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 31 |
631022 |
CLIP Price: $1.25 |
| 32 |
27136A |
DRAIN ASSY This part replaces 27136. Price: $5.96 |
| 33 |
27554 |
GASKET Price: $1.05 |
| 36 |
640113 |
NOZZLE Price: $4.95 |
| 37 |
632547 |
O RING Price: $1.49 |
| 40 |
640114 |
NUT This part replaces 640137. Price: $5.16 |
| 44 |
27110A |
GASKET Price: $1.45 |
| 47 |
630748 |
WELCH PLUG Price: $1.17 |
| 48 |
631027 |
WELCH PLUG Price: $1.17 |
