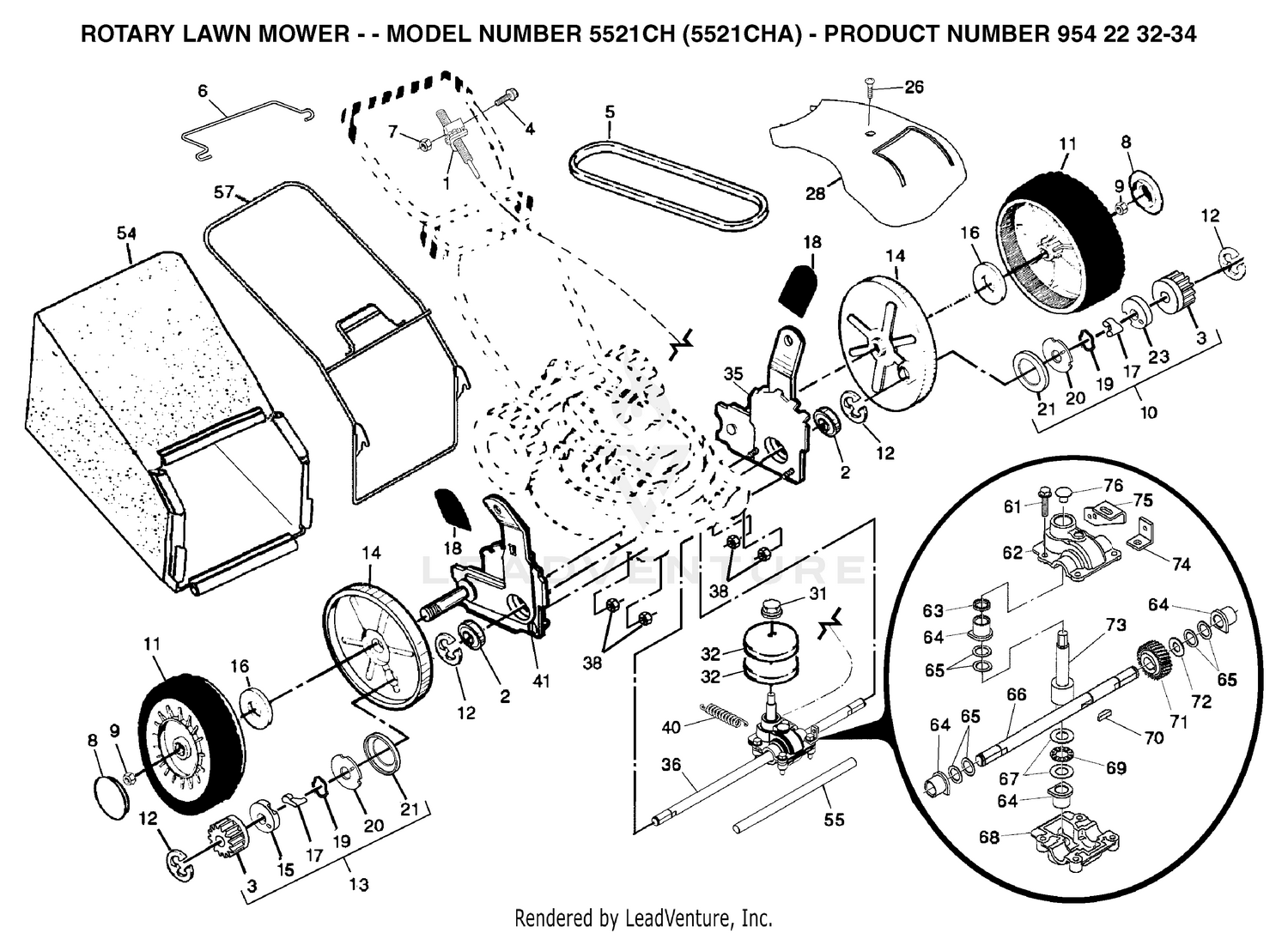

| Ref | Part Number | Description |
|---|
| 1 |
532185685 |
VARI-SPEED DRIVE CONTROL ASSEM Price: $32.99 |
| 2 |
532169911 |
BEARING, BALL Price: $11.99 |
| 3 |
532175103 |
GEAR, PINION Price: $10.99 |
| 4 |
532185681 |
SCREW Price: $3.99 |
| 5 |
532169778 |
V-BELT Price: $17.99 |
| 6 |
532194185 |
DRIVE CONTROL BAIL This part replaces 532186010. Price: $9.99 |
| 7 |
532191730 |
NUT.HEX.FLANGE.1/4 This part replaces 532751152. Price: $3.99 |
| 8 |
532150182 |
CAP.HUB.ARC.SPOKE.8".LP This part replaces 532180626. Price: $3.99 |
| 9 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 10 |
532193366 |
KIT.PINION.ASM.LH This part replaces 532188292. Price: $43.99 |
| 11 |
532180775 |
WHEEL.8X2.PR.LP.RADII.BLACK.BU This part replaces 532180767. Price: $29.99 |
| 12 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 13 |
532193367 |
KIT.PINION.ASM.RH This part replaces 532188293. Price: $38.99 |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532180504. Price: $5.99 |
| 15 |
532175102 |
RETAINER, DRIVE, RH Price: $5.99 |
| 16 |
532067725 |
WASHER FLUT Price: $5.99 |
| 17 |
532175098 |
PAWL.DRIVE.21.EZ-WALK Price: $4.99 |
| 18 |
532185574 |
SELECTOR KNOB Price: $5.99 |
| 19 |
532188291 |
SPRING, TORSION Price: $3.99 |
| 20 |
532175104 |
DISC.DRIVE.21.EZ-WALK Price: $5.99 |
| 21 |
532184172 |
SEAL.PINION This part replaces 532175101. Price: $5.99 |
| 23 |
532175105 |
RETAINER.DRIVE.21.EZ-WALK.LT Price: $5.99 |
| 26 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 28 |
532432664 |
COVER.DRIVE.ASM.185579.CE.WALK This part replaces 532185579. Price: $19.99 |
| 31 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532132010. Price: $3.99 |
| 32 |
532443262 |
RP PULLEY.DRIVE.EZ/VAR.SCREWON This part replaces 532169742. Price: $9.99 |
| 35 |
532180915 |
KIT.ADJUSTER.ASM.EZ.LH Price: $44.99 |
| 36 |
532187212 |
TRANSMISSION.21RD.FGDE This part replaces 532185566. Price: $84.99 |
| 38 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 40 |
532406558 |
SPRING This part replaces 532182226. Price: $6.99 |
| 41 |
532180914 |
KIT.ADJUSTER.ASM.EZ(169770).RT Price: $44.99 |
| 54 |
532410677 |
GBAG.250E2.BLK.GEN.SERVICE This part replaces 532185581. Price: $89.99 |
| 55 |
532175739 |
DRIVESHAFT COVER Price: $2.94 |
| 57 |
532183993 |
FRAME.GBAG.21.HT/BAG Price: $44.99 |
| 61 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 62 |
532187212 |
TRANSMISSION.21RD.FGDE This part replaces 532174917. Price: $84.99 |
| 63 |
532057072 |
SEAL Price: $4.99 |
| 64 |
532077881 |
BEARING Price: $24.99 |
| 65 |
532057079 |
THRUST WASHER Price: $1.99 |
| 66 |
532174918 |
DRIVE SHAFT, 21" FWGD Price: $23.99 |
| 67 |
532160817 |
WASHER, THRUST Price: $3.99 |
| 68 |
532187212 |
TRANSMISSION.21RD.FGDE This part replaces 532174916. Price: $84.99 |
| 69 |
532160818 |
BEARING, NEEDLE, THRUST Price: $4.99 |
| 70 |
532850848 |
HI PRO KEY Price: $4.99 |
| 71 |
532171755 |
GEAR, HELICAL (2 2MC) Price: $19.99 |
| 72 |
812000003 |
E-RING Price: $4.99 |
| 73 |
532183863 |
SHAFT GEAR WORM Price: $24.99 |
| 74 |
532196214 |
ARM.CLEVIS.ROD.SHIFT Price: $6.99 |
| 75 |
532186215 |
BRKT.TRANSMISSION.BZP This part replaces 532166215. Price: $3.99 |
