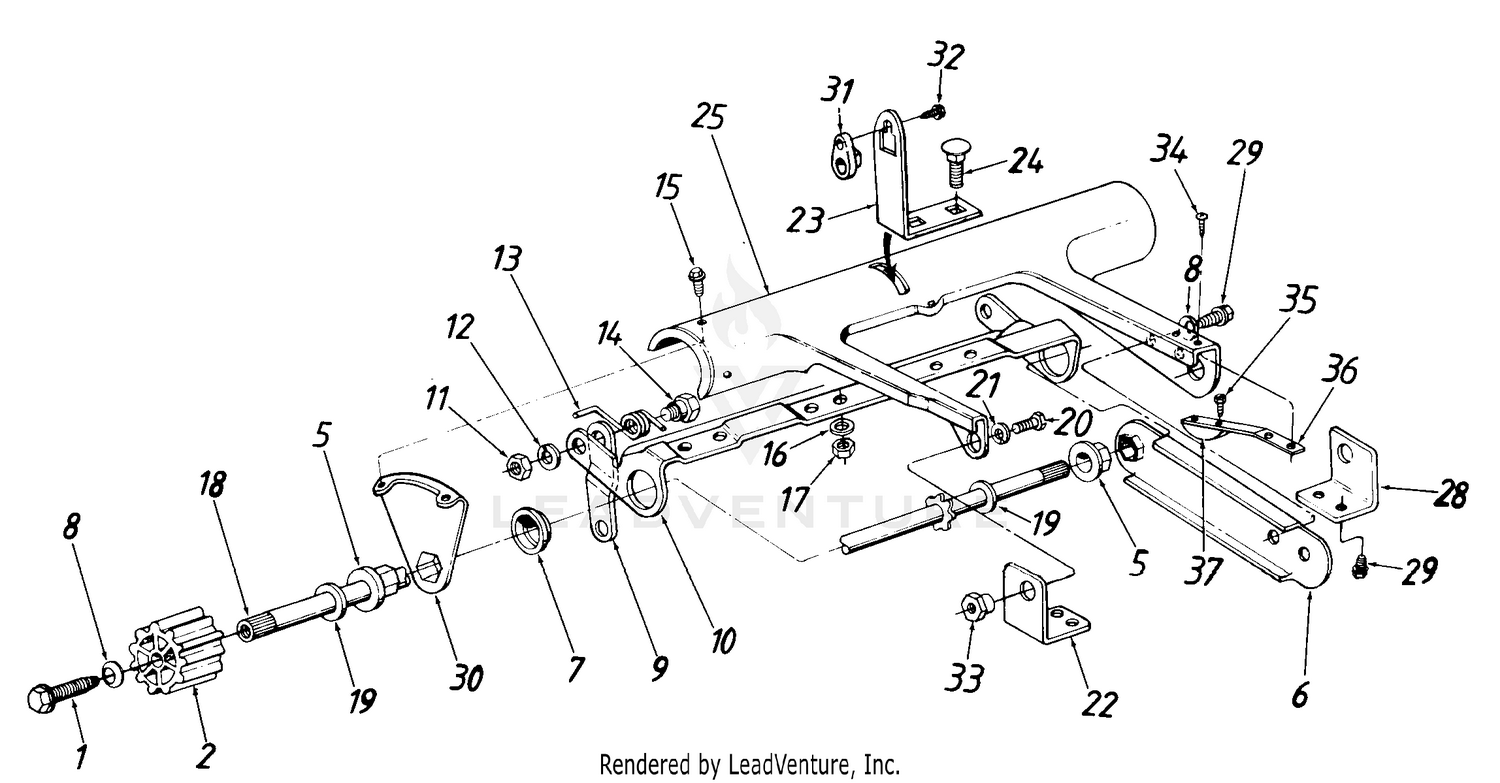

| Ref | Part Number | Description |
|---|
| 1 |
710-0642 |
Hex Wash. Hd. Tap Scr. 1/4-20 x .75" Lg. Price: $4.05 |
| 2 |
931-0908 |
DRIVE PINION This part replaces 731-0908. Price: $15.30 |
| 5 |
741-0503 |
Hex Flange Brg. .504" I.D. Price: $2.93 |
| 6 |
17018 |
SUPPORT-BEARING Not Available Price: |
| 7 |
741-0504 |
FLANGE BEARING Not Available Price: |
| 8 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 9 |
14760A |
LINK 4.58" LG. Not Available Price: |
| 10 |
16832 |
DRIVE ENGAGEMENT CAM Not Available Price: |
| 11 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 12 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 13 |
732-0569 |
TORSION SPRING (RH) Not Available Price: |
| 14 |
738-0754 |
Shoulder Bolt .437" Dia. Price: $3.76 |
| 15 |
710-0892 |
SCREW 1/4-14 x .625 Not Available Price: |
| 16 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 17 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 18 |
738-0732 |
DRIVE SHAFT ASSEMBLY Not Available Price: |
| 19 |
736-0160 |
Fl-Wash. .531" I.D. x .93" O.D. Price: $3.90 |
| 20 |
710-0168 |
Hex Bolt 3/8-16 x .5" Lg. Price: $3.38 |
| 21 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 22 |
17614 |
PIVOT BRACKET (RH) Not Available Price: |
| 23 |
16756 |
ARM-ENGAGEMENT Not Available Price: |
| 24 |
710-0258 |
Hex Bolt 1/4-20 x .62" Lg. Price: $3.63 |
| 25 |
17726 |
REAR PINION PIVOT COVER Not Available Price: |
| 28 |
17613 |
PIVOT BRACKET (LH) Not Available Price: |
| 29 |
710-0892 |
SCREW 1/4-14 x .625 Not Available Price: |
| 30 |
17017 |
BRACKET-AXLE BEARI Not Available Price: |
| 31 |
746-0606 |
HOLD DOWN-BARREL (RH) Not Available Price: |
| 32 |
710-0919 |
Hex B-Tap Scr. #10 x .44" Price: $3.95 |
| 33 |
938-0529 |
Shoulder Nut.825 x .165 Lg. This part replaces 738-0529. Price: $9.85 |
| 34 |
710-0351 |
Truss Mach. B-Tap Scr. #10 x .5" Lg. Price: $3.90 |
| 35 |
910-0429 |
Hex B-Tap Scr. #10 x .38" This part replaces 710-0429. Price: $3.20 |
| 36 |
732-0634 |
SPRING-CANTILEVER Not Available Price: |
