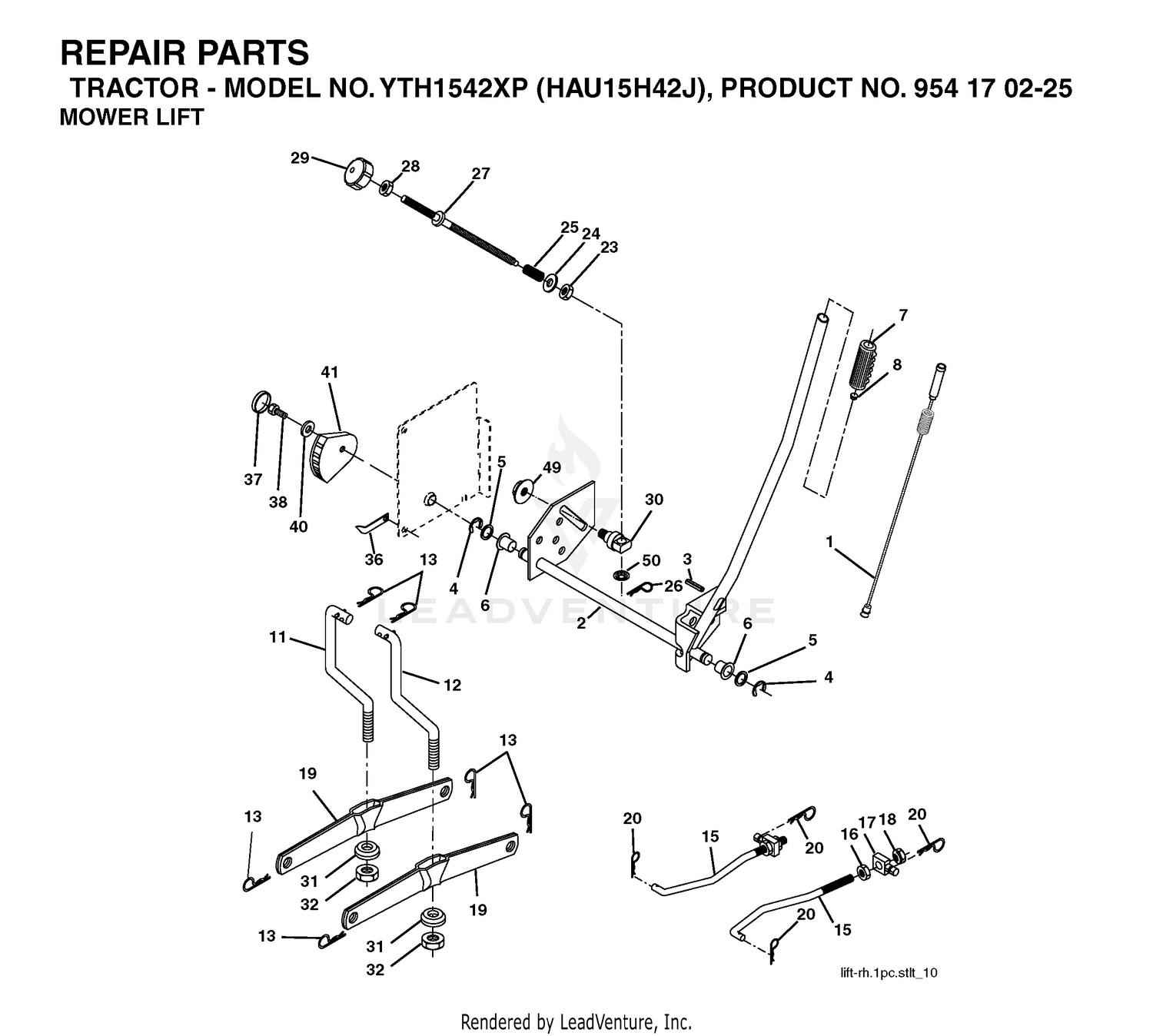

| Ref | Part Number | Description |
|---|
| 1 |
532159461 |
WIRE.ASM.INNER.SP Price: $12.99 |
| 1 |
98-1459 |
DECAL Price: $3.93 |
| 2 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 2 |
532159476 |
SHAFT.ASM.LIFT.RH.INF Price: $54.99 |
| 3 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 3 |
583172901 |
PIN.GROOVE.5/16 This part replaces 532188822. Price: $4.99 |
| 4 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 4 |
98-1471 |
WHEEL-STEERING Price: $145.99 |
| 5 |
819211621 |
WASHER Price: $4.99 |
| 6 |
106-3622 |
STEERING TILT COLUMN ASM Price: $715.85 |
| 6 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 7 |
105-2409 |
SCREW-HSH Price: $0.68 |
| 7 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 8 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 9 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 10 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 11 |
115-4379-0P |
BRACE-COLUMN This part replaces 115-4379-01. Price: $26.14 |
| 11 |
532145537 |
LIFT LINK LH This part replaces 532139865. Price: $22.99 |
| 12 |
114-8119 |
STEERING VALVE ASM Price: $865.12 |
| 12 |
532145536 |
LIFT LINK RH This part replaces 532139866. Price: $22.99 |
| 13 |
52-2891 |
BUSHING-FLANGED, NYLON Price: $3.19 |
| 13 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 14 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 15 |
105-4886 |
NUT-TINNERMAN Price: $2.37 |
| 15 |
532173288 |
LINK.SUSPENSION.FRONT Price: $11.99 |
| 16 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 16 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 17 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 17 |
532175689 |
TRUNNION Price: $3.99 |
| 18 |
136-2889 |
PEDAL-BRAKE, RH This part replaces 119-0005. Price: $429.93 |
| 18 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 19 |
136-2887-03 |
PEDAL-BRAKE, LH This part replaces 115-4421-03. Price: $159.32 |
| 19 |
531165801 |
SERVICE KIT ARM ARM.REAR.SUSPE This part replaces 532139868. Price: $11.99 |
| 20 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 20 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 21 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 22 |
92-7530 |
CABLE-BRAKE, LH Price: $132.98 |
| 23 |
532110807 |
NUT T Price: $3.99 |
| 23 |
92-7529 |
CABLE-BRAKE, RH Price: $132.98 |
| 24 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 24 |
819131016 |
WASHER Price: $2.99 |
| 25 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 25 |
532164024 |
SPRING Price: $3.99 |
| 26 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 26 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 27 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 27 |
532164543 |
ROD ADJ LIFT Price: $6.99 |
| 28 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 28 |
99-7963-03 |
PEDAL-PARK Price: $26.63 |
| 29 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 29 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 30 |
99-7140 |
SPRING-TORSION Price: $21.98 |
| 31 |
115-4417 |
ROD-BRAKE PAWL Price: $43.81 |
| 31 |
532169865 |
BEARING.PIVOT.LIFT Price: $5.99 |
| 32 |
119-0002 |
PAWL-BRAKE Price: $38.81 |
| 32 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 33 |
120-1691 |
DETENT-BRAKE Price: $32.54 |
| 34 |
323-12 |
SCREW-HH Price: $1.14 |
| 35 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 36 |
3229-34 |
SCREW-CARR Price: $1.99 |
| 36 |
532155097 |
POINTER, HEIGHT INDICATOR(2 2) Price: $4.99 |
| 37 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 37 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 38 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 38 |
593337601 |
Screws This part replaces 817060516. Price: $3.99 |
| 40 |
819112410 |
WASHER Price: $3.99 |
| 41 |
322-3 |
SCREW-HH Price: $0.79 |
| 41 |
532155098 |
IND. HEIGHT STLT Price: $4.99 |
| 42 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 43 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 44 |
32128-20 |
NUT-HF Price: $0.99 |
| 45 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 46 |
117-4763 |
DECAL-BRAKE Price: $15.19 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 50 |
532110452 |
NUT PUSH M Price: $2.99 |
