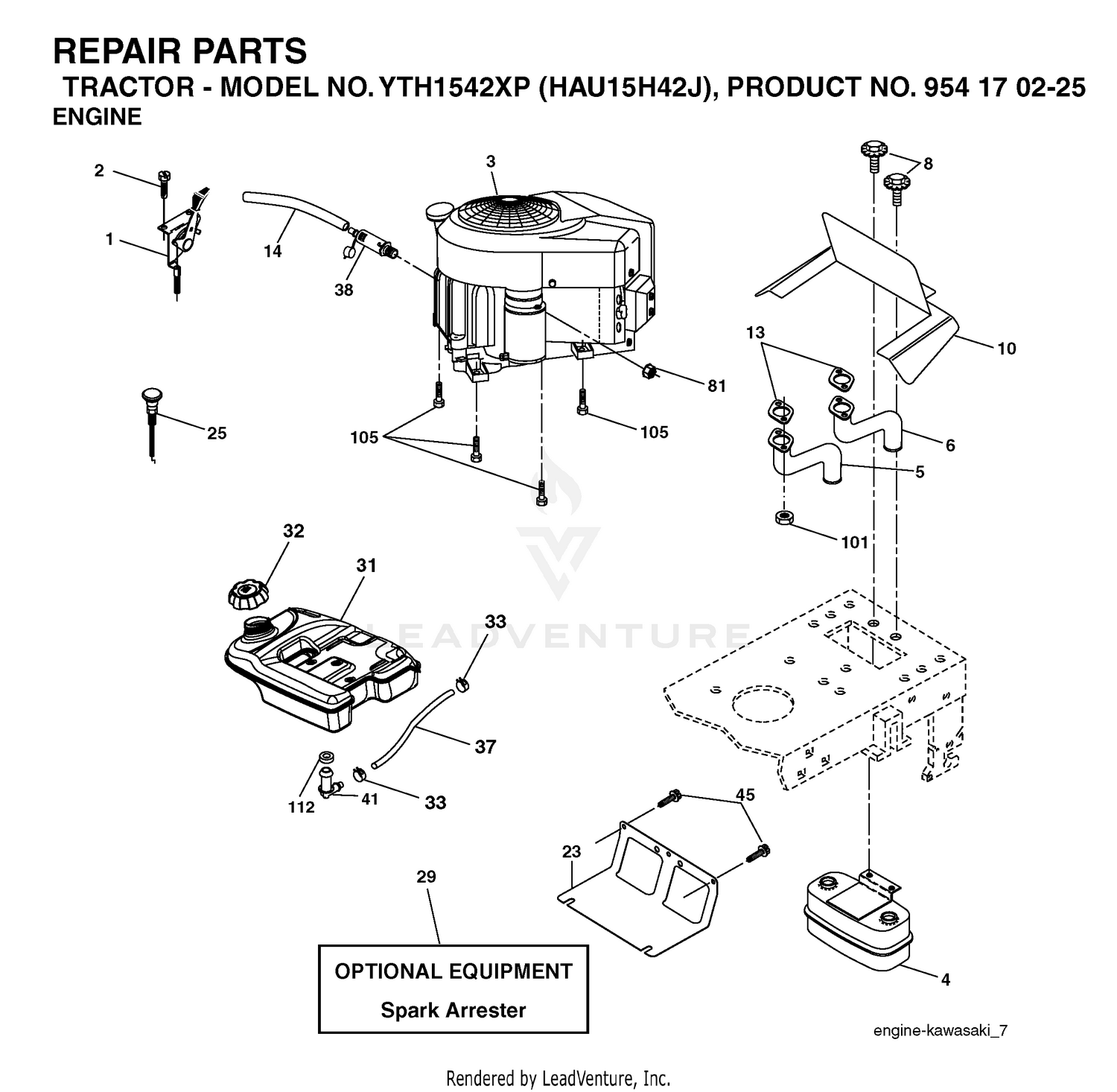

| Ref | Part Number | Description |
|---|
| 1 |
120-8053 |
HOSE ASM Price: $126.14 |
| 1 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 2 |
104-3789 |
FILTER HOSE ASM Price: $273.63 |
| 2 |
532189747 |
SCREW.HI-LO#13-16X5/8 This part replaces 532171875. Price: $14.99 |
| 3 |
120-8079 |
TUBE ASM Price: $388.35 |
| 4 |
120-8080 |
TUBE ASM Price: $344.12 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
121-3094 |
HOSE ASM Price: $159.20 |
| 5 |
532181444 |
EXHAUST TUBE LH KAWI Price: $54.99 |
| 6 |
120-8047 |
TUBE ASM Price: $141.79 |
| 6 |
532181442 |
EXHAUST TUBE RH KAWI Price: $59.99 |
| 7 |
92-7595 |
HOSE-HYD Price: $102.70 |
| 8 |
120-8098 |
HOSE ASM Price: $453.91 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
125-4571 |
HOSE ASM Price: $306.80 |
| 10 |
340-126 |
NUT-BULKHEAD Price: $4.61 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 11 |
136-2882 |
HYD TUBE ASM This part replaces 120-8025. Price: $194.81 |
| 12 |
340-127 |
NUT-BULKHEAD Price: $2.24 |
| 13 |
92-2406 |
HOSE-HYD Price: $106.53 |
| 14 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
120-8097 |
HOSE ASM Price: $116.61 |
| 16 |
121-3055 |
TUBE ASM Price: $92.66 |
| 17 |
121-3056 |
TUBE ASM Price: $86.92 |
| 18 |
121-3123 |
TUBE ASM Price: $151.27 |
| 19 |
125-4569 |
TUBE ASM Price: $345.90 |
| 20 |
121-3054 |
TUBE ASM Price: $273.56 |
| 21 |
59-7410 |
FITTING-DIAGNOSTIC Price: $36.39 |
| 22 |
354-79 |
CAP-DUST Price: $7.81 |
| 23 |
119-0011 |
PRESSURE TRANSDUCER ASM Price: $341.50 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
120-8052 |
TUBE ASM Price: $161.21 |
| 25 |
340-70 |
NUT-LOCK Price: $2.10 |
| 25 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 26 |
125-4563 |
TUBE ASM Price: $67.84 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 32 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 112 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
