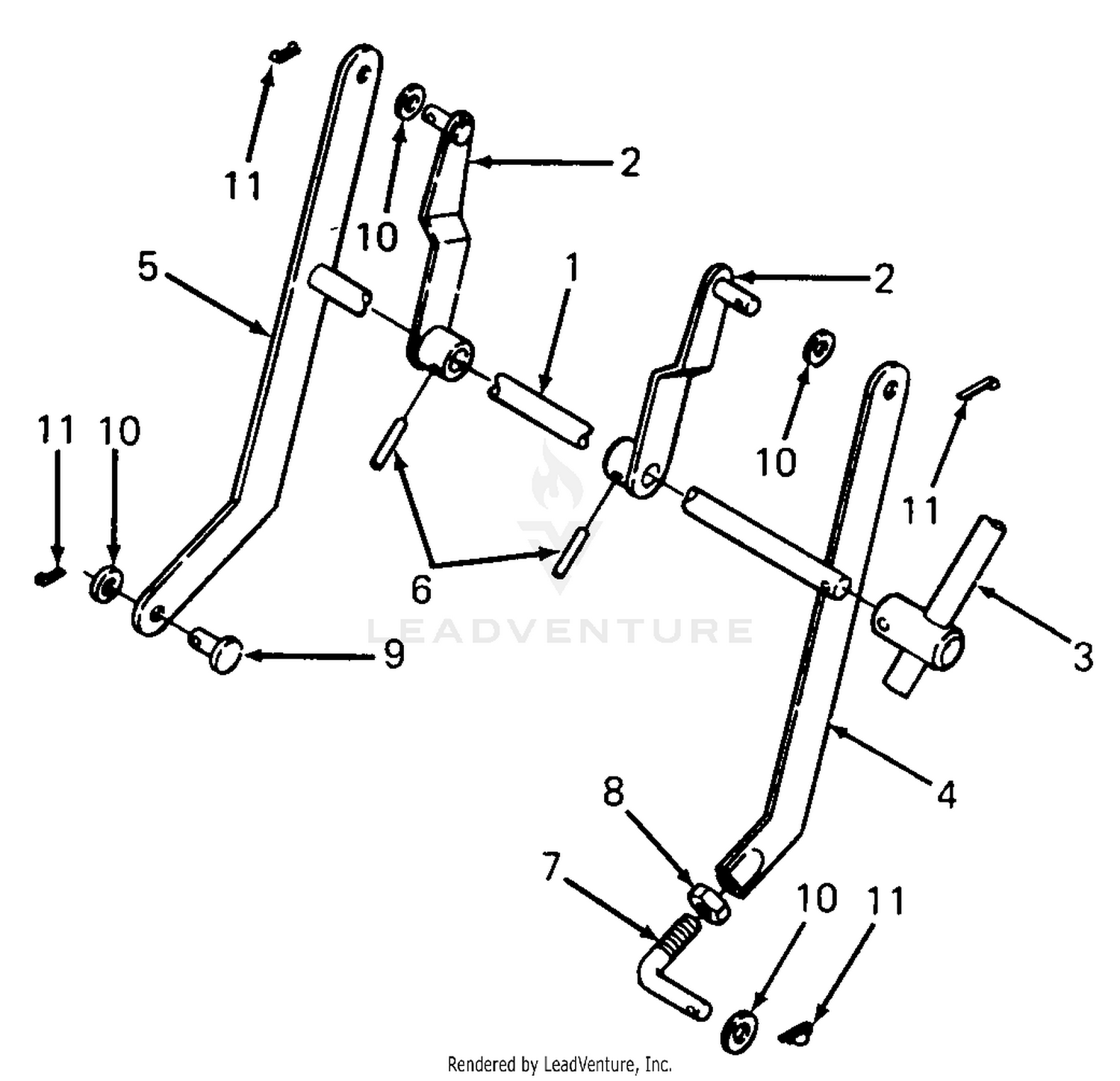

| Ref | Part Number | Description |
|---|
| 1 |
738-3054 |
LIFT SHAFT Not Available Price: |
| 1 |
75-6380 |
SHAFT-FAN Price: $141.82 |
| 2 |
32121-2 |
PIN-ROLL, SLOTTED Price: $0.25 |
| 2 |
703-1186 |
Arm, Lift Price: Call Us |
| 3 |
703-1199 |
LIFT HANDLE Not Available Price: |
| 3 |
75-6390 |
FAN PULLEY Price: $50.20 |
| 4 |
47-0110 |
SPACER-SPINDLE Price: $1.42 |
| 4 |
703-1277 |
LIFT BRACKET Not Available Price: |
| 5 |
703-1287 |
LIFT LINK Not Available Price: |
| 5 |
75-5310 |
SPACER-BEARING Price: $4.41 |
| 6 |
715-3028 |
PIN-SLOTTED ROLL 1/4 x 1.5 L Not Available Price: |
| 6 |
75-4450 |
HUB Price: $205.03 |
| 7 |
251-318 |
BEARING-BALL Price: $16.40 |
| 7 |
747-3046 |
LIFT ROD LINK Not Available Price: |
| 8 |
67-1630 |
SPACER Price: $28.84 |
| 8 |
712-0206 |
HEX NUT This part replaces 7120206. Price: $3.90 |
| 9 |
323-6 |
SCREW-HH Price: $0.66 |
| 9 |
911-0332 |
Clevis Pin, .50 x .78 This part replaces 711-0332. Price: $14.98 |
| 10 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 7360272. Price: $4.37 |
| 10 |
93-7045 |
DISCONTINUED Price: Call Us |
| 11 |
63-7790 |
SCREW-CAP Price: $1.46 |
| 12 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 13 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 14 |
322-3 |
SCREW-HH Price: $0.79 |
| 15 |
94-1896 |
HOSE - AIR CLEANNER Price: $52.78 |
| 16 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 17 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 18 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 20 |
75-1360 |
DISCONTINUED Price: Call Us |
| 21 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 22 |
117-2738 |
ENGINE-MITSUBISHI (SERVICE) This part replaces 94-9432. Price: $11,452.38 |
| 23 |
5-3637 |
SPACER Price: $2.23 |
| 24 |
48-7880 |
NUT-HEX This part replaces 43-5970. Price: $0.25 |
| 25 |
43-5920 |
WASHER-LOCK, SPRING Price: $0.25 |
| 26 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 27 |
57-6390 |
NUT-JAM Price: $0.89 |
| 28 |
93-7048 |
Bracket-Engine L.H. Rear Price: Call Us |
| 29 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 30 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 31 |
70-8220 |
GROUND CABLE Price: $12.98 |
| 32 |
323-11 |
SCREW-HH Price: $1.08 |
| 33 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 34 |
63-7140 |
MOUNT-SHOCK, ENGINE Price: $54.67 |
| 35 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 36 |
93-7044-03 |
LH FRONT MOUNT ASM This part replaces 93-7044. Price: $78.31 |
| 37 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 38 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 39 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 40 |
93-7049-03 |
DISCONTINUED This part replaces 93-7049. Price: Call Us |
| 41 |
63-6720-03 |
IDLER LEVER This part replaces 63-6720. Price: $66.34 |
| 42 |
323-7 |
SCREW-HH Price: $0.65 |
| 43 |
63-8140 |
PULLEY-IDLER Price: $47.94 |
| 44 |
75-1380 |
V-BELT, FAN Price: $40.41 |
| 45 |
32149-1 |
NUT-KEPS Price: $5.59 |
| 46 |
27-9560 |
SPACER Price: $3.87 |
| 47 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 48 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 49 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 50 |
321-4 |
SCREW-HH Price: $0.99 |
| 51 |
322-2 |
SCREW-HH Price: $0.69 |
| 52 |
75-3780 |
FAN-ENGINE Price: $367.12 |
| 53 |
114-3988 |
FAN DRIVE ASM This part replaces 74-5520. Price: $342.27 |
| 55 |
323-9 |
SCREW-HH Price: $1.29 |
| 56 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 57 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 58 |
63-6360 |
Bracket-Engine Rear Price: Call Us |
| 59 |
63-6362 |
Bracket-Engine Front Price: Call Us |
| 60 |
3213-2 |
SCREW-HH Price: $1.90 |
| 61 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 62 |
3256-40 |
WASHER-FLAT Price: $2.10 |
