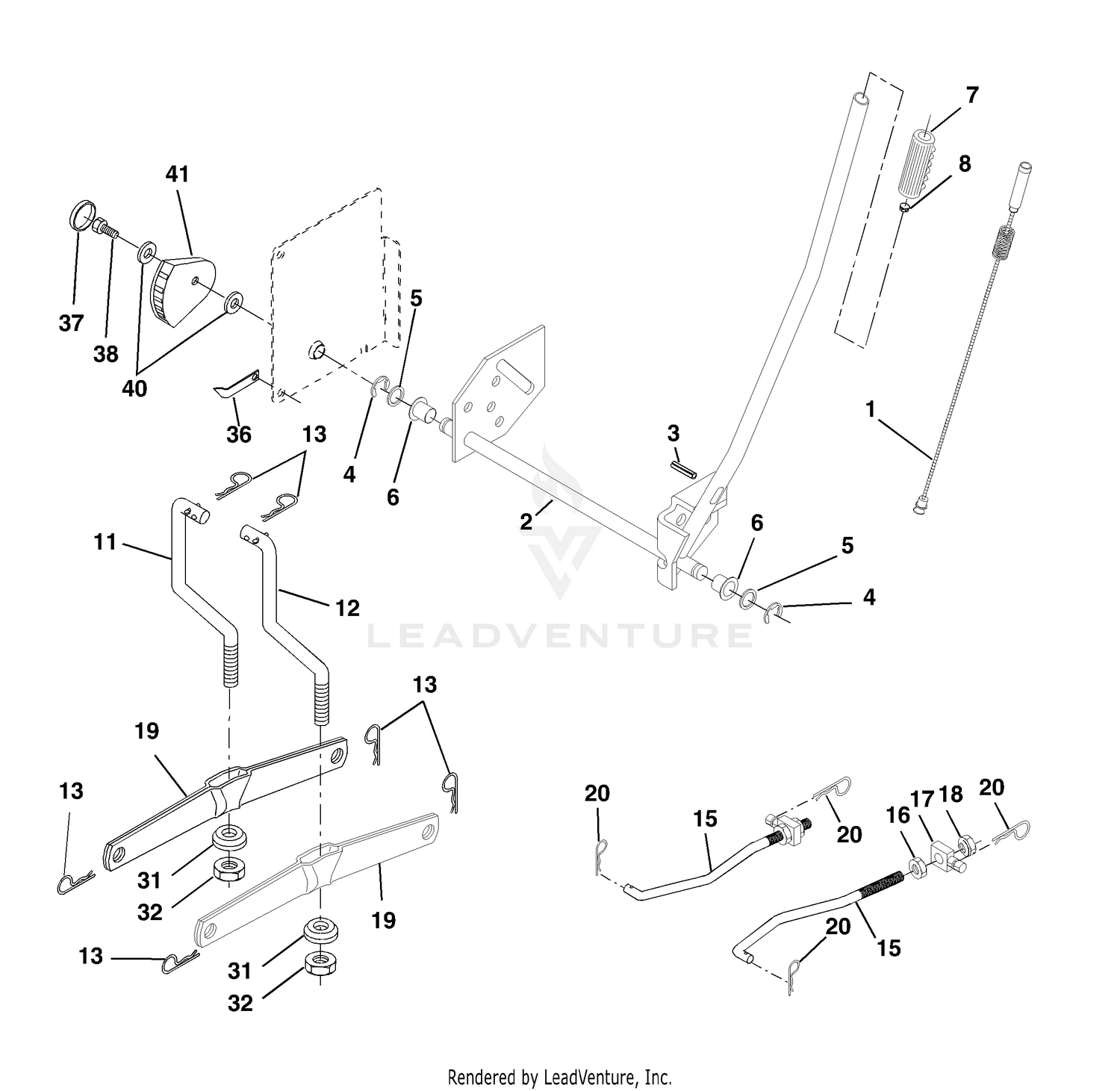

Mower Lift

Mower Lift

Parts (44)

RefPart NumberDescription
1 159460 Wire Asm Inner/Sprg W/plunger LT Price: Call Us
1 3234-33 SCREW-HHF Price: $0.79
2 120-2244 HOURMETER This part replaces 66-2950. Price: $48.06
2 159471 Shaft Asm Lift RH w/Inf Price: Call Us
3 105767X Pin Groove 1 500 Zinc Price: Call Us
3 32144-11 SCREW-THD ROLL, HWH Price: $6.99
4 12000002 E Ring #5133-62 Price: Call Us
4 32105-2 SCREW-SHWH Price: $3.49
5 19211621 Washer 21/32 X 1 X 21 Ga Price: Call Us
5 66-0120 KNOB Price: $5.53
6 120183X Bearing Nylon Blk 629 Id Price: Call Us
6 924708 PRESSURE FILTER ASSEMBLY This part replaces 95-0597. Price: $424.12
7 125631X Grip Handle Price: Call Us
7 63-8360 KEY-IGNITION Price: $5.29
8 170770 Button Plunger Price: Call Us
9 95-0648 DECAL Price: $14.49
11 105-8524 DISCONTINUED Price: Call Us
11 139865 Link Lift LH Fixed Length Price: Call Us
12 139866 Link Lift RH Fixed Length Price: Call Us
12 83-0020 SWITCH-IGNITION Price: $56.91
13 3254-6 WASHER-LOCK, INTERNAL Price: $0.31
13 4939M Retainer Spring Price: Call Us
14 3219-3 NUT-HEX Price: $0.34
15 112-7688 CONTROL-THROTTLE This part replaces 95-0598. Price: $34.68
15 173288 Link Front Price: Call Us
16 3296-12 NUT-LOCK, NI Price: $1.29
16 73350800 Nut Jam Hex 1/2-13 Unc Price: Call Us
17 175689 Trunnion Price: Call Us
17 28-4210 SOLENOID Price: $63.91
18 73800800 Nut Lock W/Wsh 1/2-13 Unc Price: Call Us
18 95-5825 WIRE ASM Price: $29.70
19 139868 Arm Suspension Rear Price: Call Us
19 95-0599 WIRE ASM Price: $45.86
20 163552 Retainer Spring Price: Call Us
20 32104-95 SCREW-HWH Price: $0.41
22 3218-13 NUT-JAM, BRASS Price: $0.88
23 3253-4 WASHER-LOCK Price: $0.25
24 3219-14 NUT-HEX Price: $0.25
31 169865 Bearing Pvt Lift Price: Call Us
32 73540600 Nut Crownlock 3/8 - 24 Price: Call Us
36 155097 Pointer Height Indicator Price: Call Us
37 123935X Plug Hole Blk 1.485/1.515 Dia. Price: Call Us
38 17060516 Screw 5/16-18 x 1 Price: Call Us
40 19112410 Washer 11/32 x 1-1/2 10 Ga. Price: Call Us
