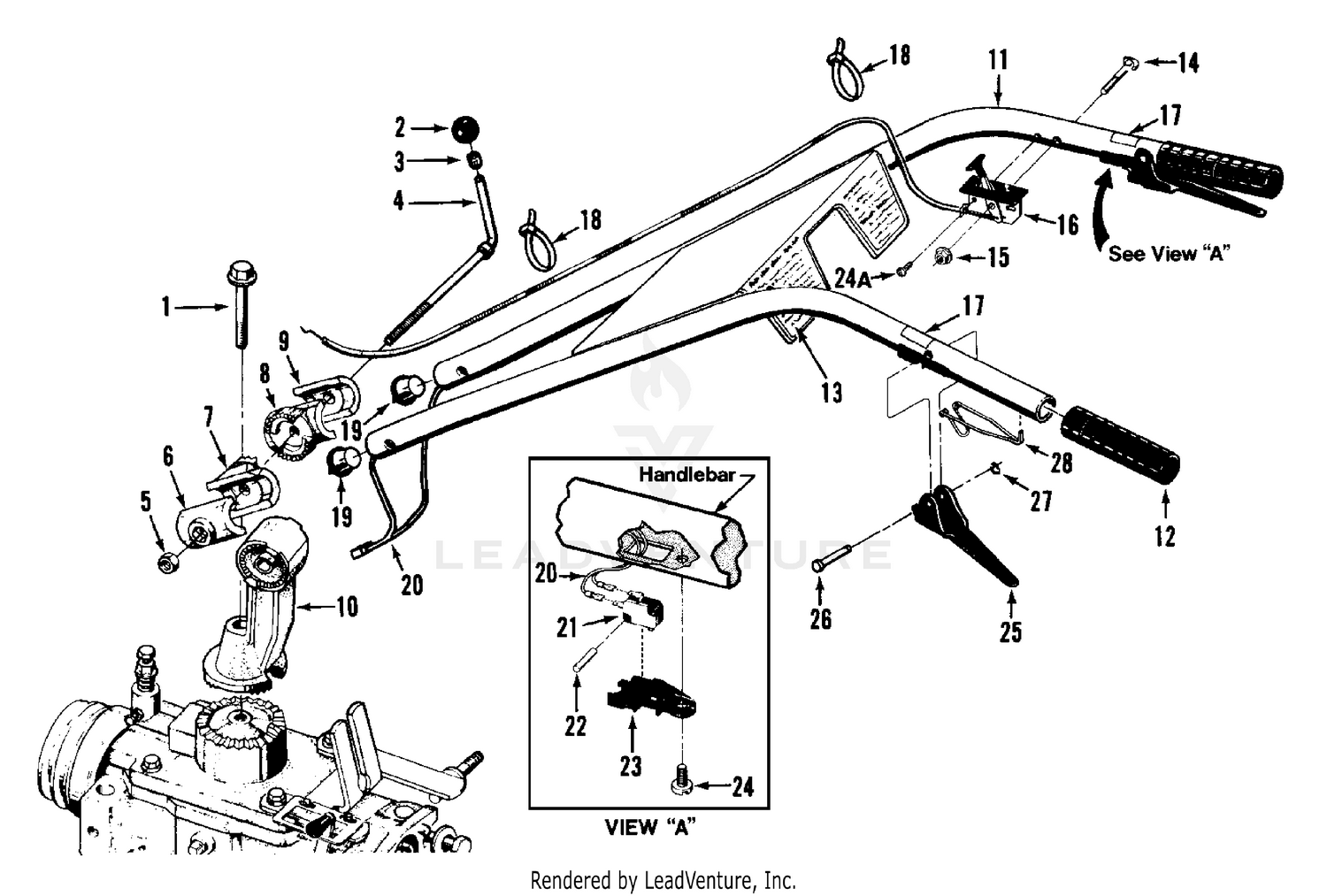

| Ref | Part Number | Description |
|---|
| 1 |
GW-9548 |
Bolt-Hex hd., flanged self-locking Grade 5, 1/2-13 x 3-1/2" Price: $12.42 |
| 2 |
GW-9119 |
Knob-handlebar height adjustment Price: $10.22 |
| 3 |
GW-9120 |
Ring-retaining (tolerance ring) Price: $5.94 |
| 4 |
GW-1881 |
STUD - handlebar height adjustment This part replaces GW-2657. Price: $54.59 |
| 5 |
712-0206 |
HEX NUT This part replaces 1186233. Price: $3.90 |
| 6 |
1900854010 |
CLAMP-LH HORSE 1021-1 This part replaces GW-1021-1. Price: $32.05 |
| 7 |
1900856010 |
RATCHET-H/BAR RED 2542-1 This part replaces GW-2542-1. Price: $37.73 |
| 8 |
1900857010 |
RATCHET-RH RED HORSE 2542-2 This part replaces GW-2542-2. Price: $43.05 |
| 9 |
1900855010 |
CLAMP-RH HORSE 1021-2 This part replaces 1901784. Price: $33.74 |
| 10 |
1900858010 |
BASE-H/BAR RED 2534A This part replaces GW-2534A. Price: $110.25 |
| 11 |
649-04020-0638 |
Handlebars Price: $224.49 |
| 12 |
720-04083 |
Handlebars Grip This part replaces GW-9125. Price: $12.95 |
| 13 |
777I22026 |
LABEL-INSTR PANEL Not Available Price: |
| 14 |
1918111 |
SCREW-CARRIAGE Not Available Price: |
| 15 |
1186389 |
Nut-hex, flanged self-locking, whiz lock, 1/4"-20 Price: $3.05 |
| 16 |
1909286P |
Clutch Cable - FWD This part replaces 1909286. Price: $68.40 |
| 17 |
777I20946 |
Decal-Forward Interlock Lever Price: $8.63 |
| 18 |
725-0157 |
Tie-plastic Price: $3.46 |
| 19 |
GW-9219 |
Plug-wire harness retainer Price: $9.09 |
| 20 |
GW-2551 |
HARNESS-WIRE OPC H Not Available Price: |
| 21 |
725-05005 |
MICRO SWITCH This part replaces GW-9250. Price: $26.56 |
| 22 |
GW-9385 |
PIN-LK .11X.58 HOR Not Available Price: |
| 23 |
625-04097 |
Switch Assembly This part replaces GW-2543. Price: $63.95 |
| 24 |
1186009 |
SCREW-HW M10-24X.5 S Not Available Price: |
| 24A |
1964 |
SCREW:10-32X.5 This part replaces GW-9733. Price: $3.89 |
| 25 |
786-04003-0638 |
Operator Presence Control Lever This part replaces 786-04003. Price: $26.69 |
| 26 |
GW-9199 |
Pivot Pin- forward interlock lever Price: $5.59 |
| 27 |
GW-9514 |
Retaining Ring-klip ring-forward interlock lever Price: $6.03 |
| 28 |
732-04864A |
Return Spring This part replaces GW-9387. Price: $6.03 |
| 777D06526 |
LABEL-HANDLE |
PANEL Not Available Price: 777D06526 |
