| Ref | Part Number | Description |
|---|
| 1 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 1 |
MA-195603110K0 |

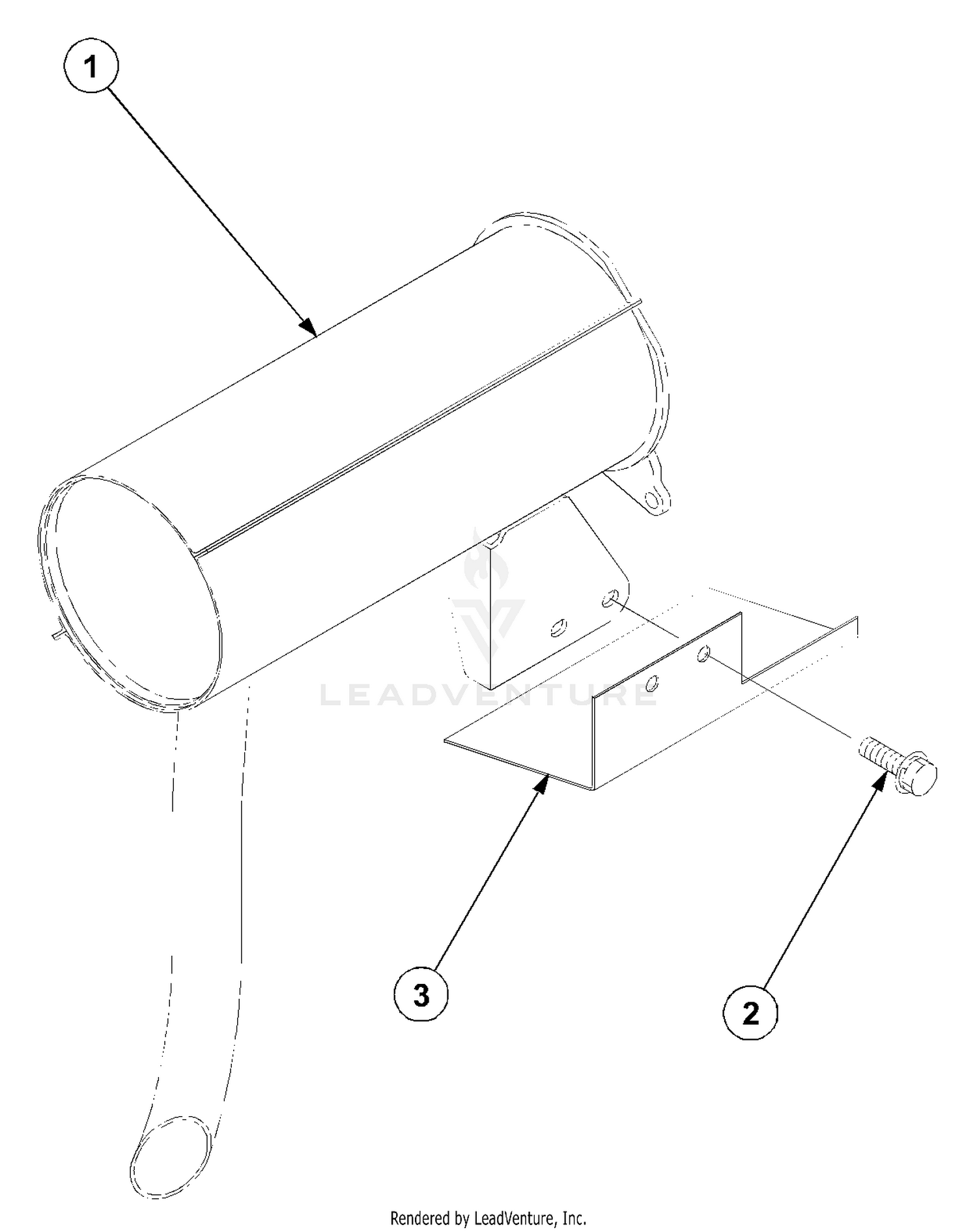

EXHAUST MUFFLER Not Available This part replaces MA-195603110K1. Price: |
| 2 |
28-3680 |
TIRE Price: $118.18 |
| 2 |
MA-H1540108016 |
BOLT,W/WASHER Not Available Price: |
| 3 |
10-6850 |
DRUM-BRAKE Price: $54.08 |
| 4 |
70-9880 |
SPRING-RETURN Price: $11.81 |
| 5 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 6 |
147-3595 |
BRACKET-BRAKE This part replaces 84-2000. Price: $8.08 |
| 7 |
94-5357 |
HOSE ASM Price: $201.34 |
| 8 |
94-5358 |
HOSE ASM Price: $196.18 |
| 9 |
340-14 |
FITTING-HYD, 45 DEG Price: $42.29 |
| 10 |
92-9199 |
MOTOR-WHEEL, HYD Price: $923.71 |
| 11 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 12 |
93-2069 |
ROD-BRAKE Price: $15.33 |
| 13 |
93-2096 |
LEVER-BRAKE Price: $89.45 |
| 14 |
26-3790 |
NUT-LOCK Price: $24.46 |
| 15 |
3220-20 |
NUT-JAM Price: $0.92 |
| 16 |
33113-020 |
SCREW-HH Price: $0.26 |
| 17 |
33114-030 |
SCREW-HH Price: $0.50 |
| 18 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 19 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 20 |
33116-060 |
SCREW-HH Price: $1.09 |
| 21 |
93-2070 |
CLEVIS-SWIVEL Price: $31.79 |
| 22 |
232-24 |
STEM-VALVE Price: $4.03 |
| 23 |
217-60 |
RIM Price: $110.16 |
| 24 |
10-6870-03 |
HUB-WHEEL This part replaces 10-6870. Price: $150.01 |
| 25 |
85-6540 |
STUD-DRIVE Price: $7.41 |
| 26 |
104-7708 |
BRAKE CAM & E-RING ASM This part replaces 70-9860. Price: $42.42 |
| 27 |
70-9840 |
SHOE-BRAKE Price: $60.36 |
| 28 |
70-9870 |
PLATE-BACKING Price: $183.14 |
| 29 |
104-7708 |
BRAKE CAM & E-RING ASM This part replaces 70-9850. Price: $42.42 |
| 30 |
237-65 |
O-RING Price: $2.50 |
| 31 |
237-80 |
O-RING Price: $6.10 |
| 503240905 |
503240905 |
PIN Price: $2.99 |
| 503255201 |
599531501 |
NEEDLE BEARING 12.7X15.88X14 This part replaces 503255201. Price: $8.99 |
| 503854801 |
503854801 |
SEAL Price: $7.99 |
| 503873072 |
578097901 |
CLUTCH DRUM This part replaces 503873072. Price: $32.99 |
| 503931801 |
503931801 |
GEAR WHEEL OIL PUMP Price: $8.99 |
| 503932101 |
540057901 |
PISTON PUMP This part replaces 503932101. Price: $6.99 |
| 537110503 |
537110503 |
CLUTCH Price: $39.99 |
| 537154801 |
537154801 |
PUMP CYLINDER Price: $9.99 |
