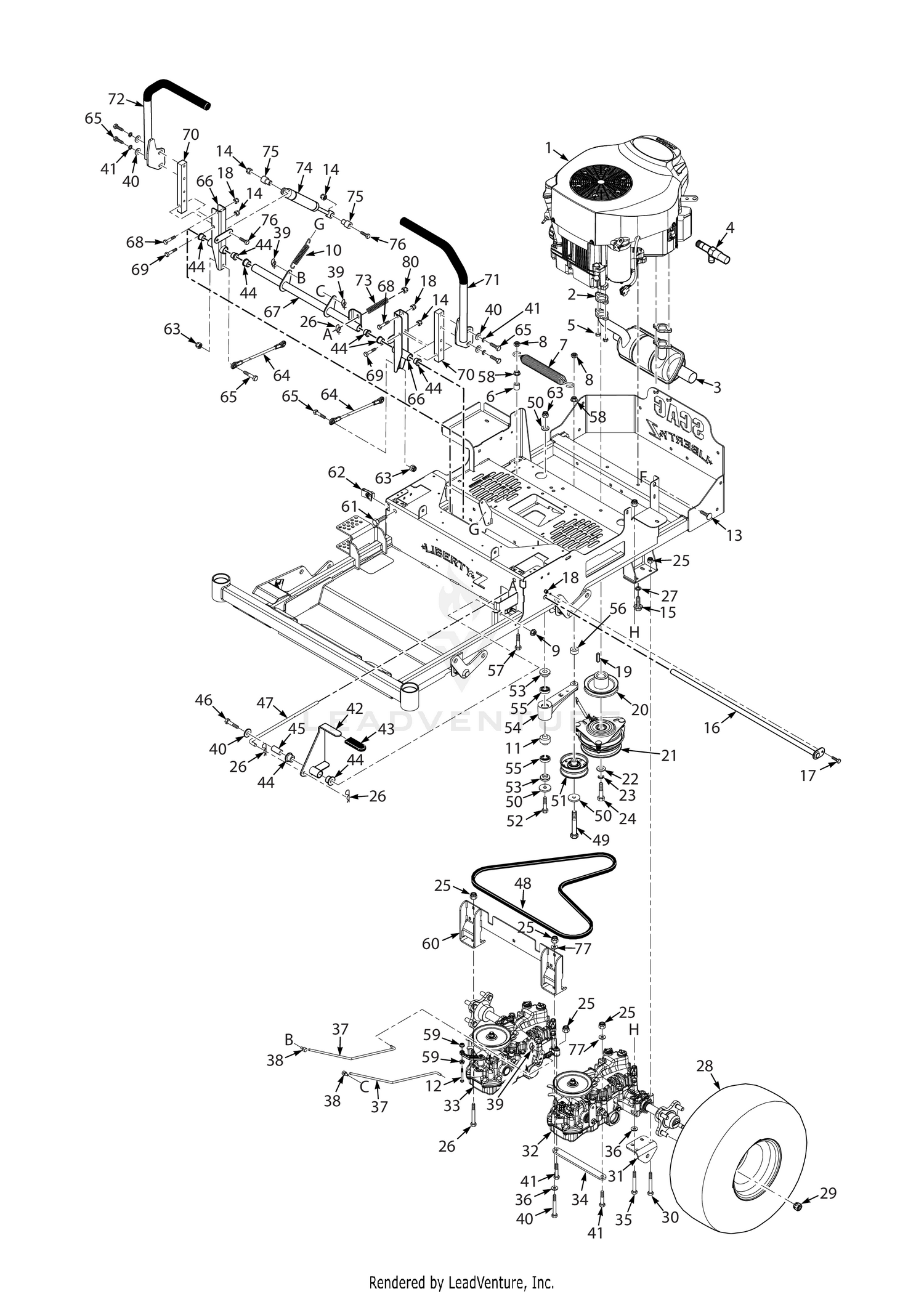

| Ref | Part Number | Description |
|---|
| 1 |
6-1120 |
DISCONTINUED Price: Call Us |
| 2 |
2-2139 |
DISCONTINUED Price: Call Us |
| 2 |
487238 |
Gasket, Exhaust Price: Call Us |
| 3 |
3-4010 |
BUSHING ASM Price: $14.71 |
| 3 |
485225 |
Muffler, Kawasaki FR651V & FR691V Price: Call Us |
| 4 |
5-4527 |
WASHER-THRUST Price: $3.00 |
| 5 |
04025-04 |
Nut, M8 x 1.25 Hex Special Price: Call Us |
| 5 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 6 |
43674 |
Spacer, Idler Pulley - SFZ52 Price: Call Us |
| 6 |
8-3990 |
REAR ROLLER ASM This part replaces 5-3939. Price: $352.13 |
| 7 |
4-5189-01 |
ROLLER AND END CAP ASM This part replaces 4-5659. Price: $216.78 |
| 7 |
483112 |
Spring, Transmission Drive Price: Call Us |
| 8 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 8 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 9 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 9 |
253-122 |
SEAL-OIL Price: $6.83 |
| 10 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 10 |
483600 |
Spring, Deck Latch Price: Call Us |
| 11 |
254-78 |
BEARING-CONE Price: $12.22 |
| 11 |
431073 |
Spacer, Bearing Price: Call Us |
| 12 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" - 61" Price: Call Us |
| 12 |
5-4523 |
SLEEVE Price: $22.20 |
| 13 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 13 |
253-117 |
SEAL-OIL Price: $5.72 |
| 14 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 14 |
8-3980 |
SHAFT-ROLLER Price: $76.62 |
| 15 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 15 |
3220-7 |
NUT-JAM Price: $4.09 |
| 16 |
2-2149 |
LH ROLLER BRKT & BSHG Price: $71.47 |
| 16 |
452620 |
Shaft Weldment, Control Arm Price: Call Us |
| 17 |
04001-06 |
BOLT, HEX HEAD, 1/4-20 X 5/8 Price: Call Us |
| 18 |
04021-08 |
HEX, NUT, ELASTIC STOP LOCK, 1/4-20 Price: Call Us |
| 19 |
04063-01 |
Key, 1/4 x 1/4 x 1.25" Pulley Mtg. Price: Call Us |
| 20 |
487032 |
Pulley, 4-1/2" - 1" Bore Price: Call Us |
| 21 |
487077 |
Clutch Price: Call Us |
| 22 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 23 |
04102-12 |
Bolt, Hex Head 7/16-20 x 3¼" w/Patch Price: Call Us |
| 24 |
04102-12 |
Bolt, Hex Head 7/16-20 x 3¼" w/Patch Price: Call Us |
| 25 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 26 |
04001-39 |
BOLT, HEX HEAD, 5/16-18 X 2-1/4 Price: Call Us |
| 27 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 28 |
483390 |
Wheel Assembly (48, 52) Price: Call Us |
| 29 |
04028-02 |
Wheel Nut, 1/2-20 x 13/16 Price: Call Us |
| 30 |
04001-49 |
Bolt, Hex Head 5/16-18 x 3.00" Price: Call Us |
| 31 |
428348 |
Bracket, Pusharm Price: Call Us |
| 32 |
486650 |
Transaxle - Tuff Torq, LH - SZL Price: Call Us |
| 33 |
486651 |
Transaxle - Tuff Torq, RH - SZL Price: Call Us |
| 34 |
428891 |
Stiffener, Axle Price: Call Us |
| 35 |
04001-39 |
BOLT, HEX HEAD, 5/16-18 X 2-1/4 Price: Call Us |
| 36 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 37 |
44244 |
Rod, Brake - LH Price: Call Us |
| 38 |
43876 |
Joint, Swivel Price: Call Us |
| 39 |
04069-01 |
Pin, Rue Cotter 3/8" Diameter Price: Call Us |
| 40 |
04001-39 |
BOLT, HEX HEAD, 5/16-18 X 2-1/4 Price: Call Us |
| 41 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI) Price: Call Us |
| 43 |
482102 |
Grip, Brake Handle Price: Call Us |
| 44 |
483453-05 |
Bearing Price: Call Us |
| 45 |
43969 |
Pivot, Brake Lever Price: Call Us |
| 46 |
04001-31 |
Capscrew, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 47 |
44231 |
Rod, Upper Brake Linkage Price: Call Us |
| 48 |
486649 |
Belt, Tuff Torq Transmission-SZL Price: Call Us |
| 49 |
04001-51 |
Capscrew, Hex Head 3/8-16 x 3-3/4" Price: Call Us |
| 50 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 51 |
486045 |
Pulley, 3-1/2" Dia. Price: Call Us |
| 52 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" - 52" Price: Call Us |
| 53 |
431049 |
Spacer, Controls Price: Call Us |
| 55 |
48224 |
BEARINGS, BALL, NEUTRAL RETURN Price: Call Us |
| 56 |
43720 |
Spacer, Idler Pulley - SFZ61 Price: Call Us |
| 57 |
04001-45 |
Capscrew, Hex Head 3/8-16 x 2.0" Price: Call Us |
| 58 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 59 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 60 |
453255 |
Mounting Weldment, Axle - Tuff Torq Price: Call Us |
| 61 |
04107-05 |
Bolt, Hex Head 3/8-16 x 2-1/2" Soecial Lock Price: Call Us |
| 62 |
04110-04 |
U-Nut, 3/8-16 Price: Call Us |
| 63 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 64 |
486691 |
Linkage, Pump Price: Call Us |
| 65 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 67 |
463019 |
Bellcrank Assembly (incl. 44) Price: Call Us |
| 68 |
04001-02 |
Bolt, Hex Head, 1/4-20 x 1-1/4" Price: Call Us |
| 69 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-1/2" - Front Price: Call Us |
| 70 |
422372 |
Bar, Control Lever Price: Call Us |
| 71 |
462740 |
Handlebar w/Grip Price: Call Us |
| 72 |
462741 |
Handlebar w/Grip Price: Call Us |
| 73 |
483538 |
Spring, Brake Price: Call Us |
| 74 |
484193 |
Damper, Steering Price: Call Us |
| 75 |
43602 |
Spacer, Pump Dampener Price: Call Us |
| 76 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 44245 |
Rod, |
Brake - RH Price: Call Us 44245 |
| 463477 |
Engine,Scag |
LC2P77F - 1" Crankshaft Price: Call Us 463477 |
| 463478 |
Engine,Scag |
LC2P82F - 1.125" Crankshaft Price: Call Us 463478 |
| 482510 |
Extension, |
Oil Drain 2.3" - Kawasaki Price: Call Us 482510 |
| 484376 |
Grip, |
Control Handle Price: Call Us 484376 |
| 485336 |
Muffler, |
Kohler KT Price: Call Us 485336 |
| 487151 |
Muffler, |
Briggs & Stratton PXi Price: Call Us 487151 |
| 487170 |
Muffler, |
Scag 27SR Price: Call Us 487170 |
