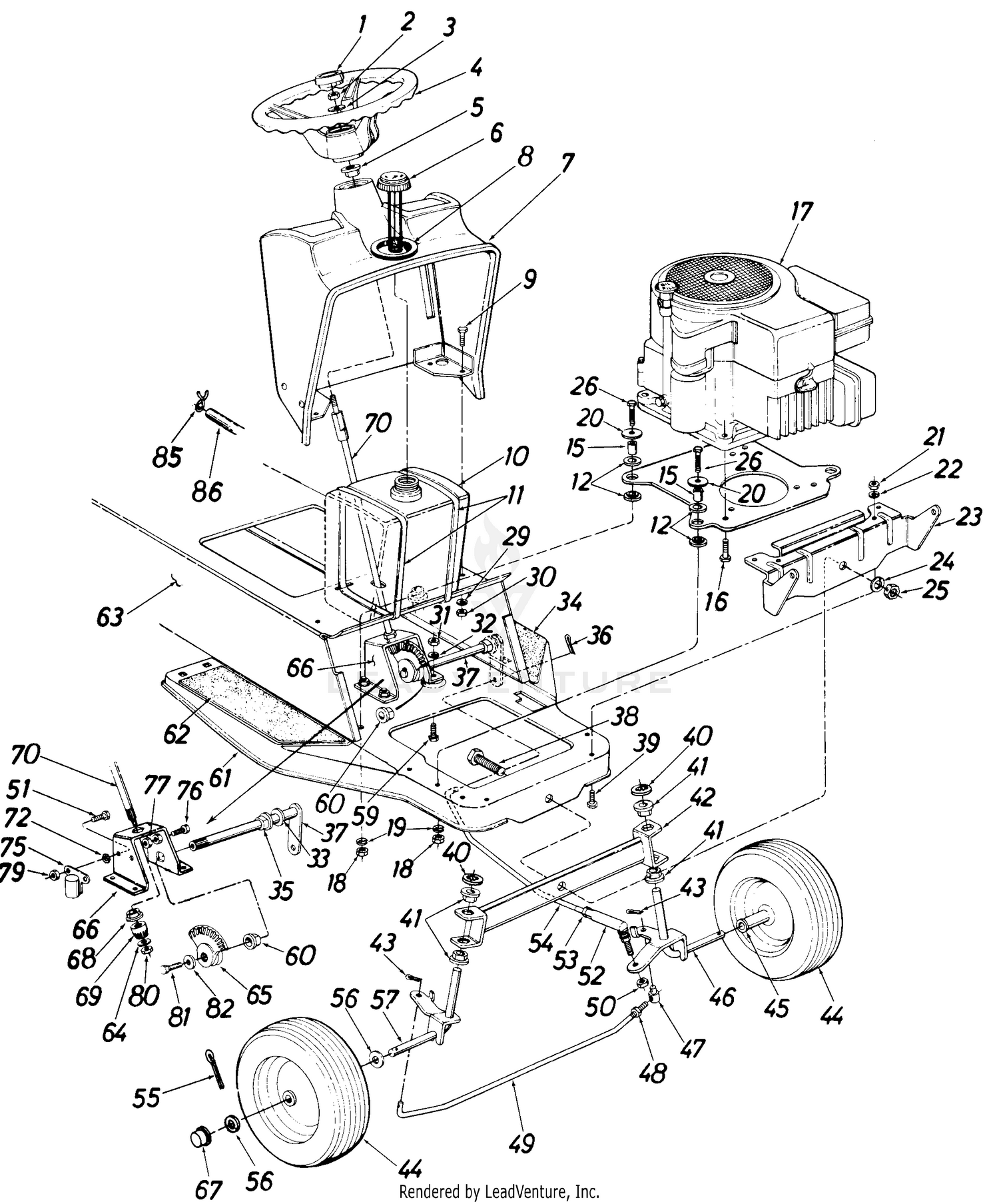

| Ref | Part Number | Description |
|---|
| 1 |
931-0220 |
Steering Wheel Cap This part replaces 731-0220. Price: $7.93 |
| 2 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 3 |
736-0242 |
Bell-Wash. .345 I.D. x .88 O.D. Price: $3.75 |
| 4 |
731-0219 |
STEERING WHEEL ASSEMBLY Not Available Price: |
| 5 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 6 |
723-0333 |
GAUGE-GAS Not Available Price: |
| 9 |
710-0211 |
HEX SCREW SEMS 1/4-20 x .75 Not Available Price: |
| 10 |
753-0503 |
KIT-FUEL TANK W/CA Not Available This part replaces 751-0172. Price: |
| 12 |
722-0153 |
Engine Mounting Grommet Price: $2.93 |
| 15 |
950-0539 |
SPACER Not Available This part replaces 750-0539. Price: |
| 16 |
710-0502A |
Hx Wash Hd. Scr. 3/8-16 x 1.25" This part replaces 710-0502. Price: $5.71 |
| 17 |
N/A |
Engine |
| 18 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 19 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 20 |
736-0231 |
Fl-Wash. .34" I.D. x 1.12" O.D. x .125 Price: $4.02 |
| 21 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 22 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 23 |
12467 |
Front Pivot Bracket Price: Call Us |
| 24 |
736-0158 |
L-Wash. 5/8" Scr.* Price: $3.90 |
| 25 |
712-0923 |
Hex Cent. L-Nut 5/8-18 Thd. Price: $6.01 |
| 26 |
710-0672 |
Hex Bolt 5/16-24 x 1.25" Lg. This part replaces 710-0158. Price: $3.85 |
| 29 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 30 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 31 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 32 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 33 |
736-0134 |
Fl-Wash. .812 I.D. x 1.38 O.D. x .100 Price: $3.90 |
| 34 |
723-0307 |
FOOT PAD (LH) Not Available Price: |
| 35 |
941-0490 |
Flange Brg. w/Flats .75" I.D. This part replaces 741-0199. Price: $11.60 |
| 36 |
714-0507 |
Cotter Pin 3/32" Dia. x .75" Lg.* Price: $3.93 |
| 37 |
12815 |
STEERING ARM ASS'Y. Not Available Price: |
| 38 |
710-0622 |
Hex Scr. 5/8-18 x 1.62" Lg. Price: Call Us |
| 39 |
910-0198 |
HEX SCREW SEMS 5/16-18 x .75 Not Available This part replaces 710-0198. Price: |
| 40 |
926-0159B |
PUSH NUT SPEED Not Available This part replaces 726-0159. Price: |
| 41 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 42 |
13274 |
BAR ASSEMBLY-P Not Available Price: |
| 43 |
714-0474 |
Cotter Pin 1/8" Dia. x .75" Lg. Price: $4.08 |
| 44 |
N/A |
Front Wheel Ass'y. |
| 45 |
741-0487C |
Flange Bearing .632 ID This part replaces 741-0313. Price: $6.87 |
| 46 |
12491 |
FRON T AXLE ASS'Y.-L. H . Not Available Price: |
| 47 |
911-0198 |
Ferrule This part replaces 711-0198. Price: $12.05 |
| 48 |
712-0711 |
Hex Jam Nut 3/8-24 Thd. Price: $3.90 |
| 49 |
747-0144 |
TIE ROD Not Available Price: |
| 50 |
712-0116 |
Hex Ins. L-Nut 3/8-24 Thd. Price: $3.95 |
| 51 |
910-0289 |
Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15 |
| 52 |
923-0156 |
Ball Joint This part replaces 723-0156. Price: $15.54 |
| 53 |
712-0711 |
Hex Jam Nut 3/8-24 Thd. Price: $3.90 |
| 54 |
747-0158 |
DRAG LINK Not Available Price: |
| 55 |
714-0470 |
Cotter Pin 1/8" Dia. x 1.25" Lg.* Price: $3.90 |
| 56 |
736-0156 |
Fl-Wash. .630 I.D. x 1.120 O.D. x .100 Price: $3.95 |
| 57 |
12492 |
FRONT AXLE ASS'Y.-R . H . Not Available Price: |
| 59 |
910-0198 |
HEX SCREW SEMS 5/16-18 x .75 Not Available This part replaces 710-0198. Price: |
| 60 |
941-0490 |
Flange Brg. w/Flats .75" I.D. This part replaces 741-0199. Price: $11.60 |
| 61 |
12600 |
Front Frame Ass'y. Price: Call Us |
| 62 |
723-0306 |
Foot Pad-R.H. Price: Call Us |
| 63 |
12450 |
Rear Frame Price: Call Us |
| 64 |
736-0264 |
Fl-Wash. 5/16" Scr. Price: $5.99 |
| 65 |
748-0236 |
Side Gear Price: $88.74 |
| 66 |
12851 |
Steering Gear Support Ass'y. Price: Call Us |
| 67 |
931-0484A |
Hub Cap This part replaces 731-0484. Price: $5.98 |
| 68 |
741-0226 |
HEX FLANGE BEARING Not Available Price: |
| 69 |
948-0237 |
Pinion Gear This part replaces 748-0237. Price: $19.21 |
| 70 |
738-0325 |
STEERING SHAFT Not Available Price: |
| 72 |
736-0222 |
Ext. L-Wash. 1/4" Scr. Price: $5.07 |
| 75 |
925-0771 |
Solenoid This part replaces 725-0771. Price: $32.55 |
| 76 |
710-0670 |
Hex Scr. Nylon 3/8-16 x 1.25" Lg. Price: $6.01 |
| 77 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. Price: $4.02 |
| 79 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 80 |
712-0237 |
Hex Cent. L-Nut 5/16-24 Thd. Price: $4.37 |
| 81 |
710-0180 |
HEX SCREW 3/8-24 x .75 GR5 Not Available Price: |
| 82 |
736-0105 |
Bell-Wash. Price: $3.96 |
| 85 |
726-0207 |
HOSE CLAMP Not Available Price: |
| 16040 |
PLATE-MTG- |
Not Available Price: 16040 |
