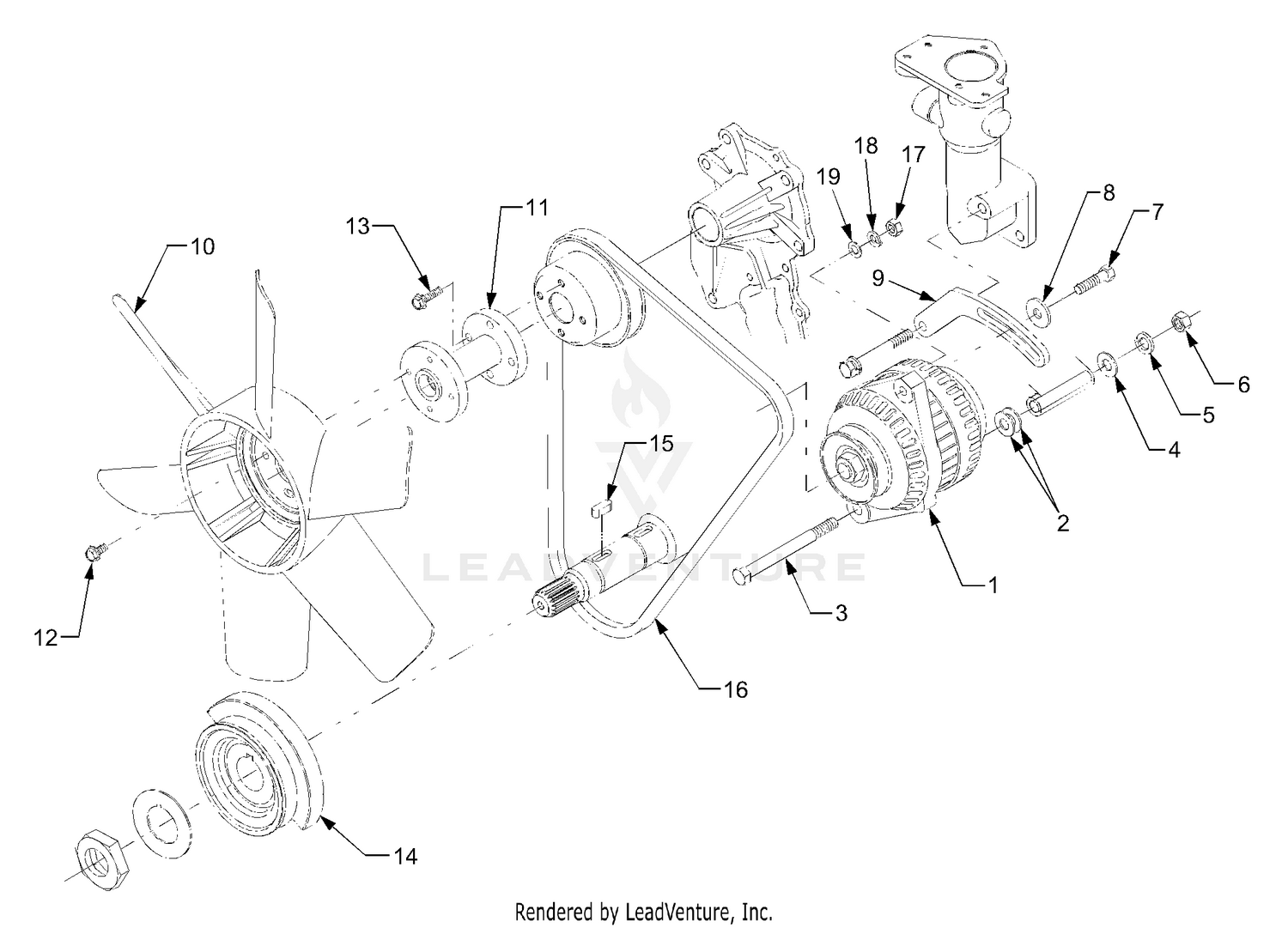

Dynamo And Cooling Fan
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 596435601 | Bolts This part replaces 539102855. Price: $7.99 |
| 1 | 77-3300 | STUD Price: $2.76 |
| 1 | DD-E6305-64011 | ALTERNATOR Not Available Price: |
| 2 | 539104571 | CASTER YOKE ORANGE Price: $229.99 |
| 2 | 77-3310 | GASKET Price: $10.76 |
| 2 | DD-E5800-64102 | SPACER Not Available Price: |
| 3 | 539102856 | SPACER, CASTER Price: $11.99 |
| 3 | 77-3340 | MANIFOLD-EXHAUST Price: $492.44 |
| 3 | DD-01173-51003 | HEX BOLT Not Available Price: |
| 4 | 3253-4 | WASHER-LOCK This part replaces 68-9420. Price: $0.25 |
| 4 | 539102484 | BEARING RETAINER Price: $4.99 |
| 4 | 539102485 | ROLLER BEARING Price: $32.99 |
| 4 | 539104572 | TIRE.ASSEM.13X5-6.SMOOTH.SILVE Price: $129.99 |
| 4 | 539912234 | VALVE STEM TR-412 Price: $3.99 |
| 4 | DD-04013-50100 | FLAT WASHER Not Available Price: |
| 5 | 596135601 | GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 5 | 77-3320 | NUT-HEX Price: $1.36 |
| 5 | DD-04512-50100 | LOCK WASHER Not Available Price: |
| 6 | 539102851 | SEAL Price: $6.99 |
| 6 | 94-3215 | MANIFOLD-INTAKE Price: $495.94 |
| 6 | DD-02176-50100 | HEX NUT Not Available Price: |
| 7 | 539102626 | BEARING W/CUP Price: $19.99 |
| 7 | 94-3164 | WASHER-SPRING Price: $1.20 |
| 7 | DD-01123-50832 | HEX BOLT Not Available Price: |
| 8 | 596623501 | Zerks This part replaces 539101474. Price: $2.99 |
| 8 | 94-3216 | CAPSCREW Price: $9.71 |
| 8 | DD-04015-50080 | FLAT WASHER Not Available Price: |
| 9 | 539124704 | COTTER PIN 1/8 X 2 This part replaces 539102889. Price: $2.99 |
| 9 | 94-3217 | CAPSCREW Price: $4.97 |
| 9 | DD-E5800-64422 | BRACKET-ALTERNATOR Not Available Price: |
| 10 | 596241501 | Nuts This part replaces 539102852. Price: $9.99 |
| 10 | DD-E6302-74111 | COOLING FAN This part replaces DD-E6500-74111. Price: $67.82 |
| 11 | 595281301 | Caps This part replaces 539102535. Price: $4.99 |
| 11 | DD-E5800-74154 | SHAFT-COOLING FAN Not Available Price: |
| 12 | DD-01754-50612 | HEX FLANGE BOLT Not Available Price: |
| 13 | DD-01754-50622 | BOLT Not Available Price: |
| 14 | DD-E6306-74282 | PULLEY-FAN DRIVE Not Available Price: |
| 15 | DD-05712-00720 | FAN DRV PULLEY KEY Not Available Price: |
| 16 | DD-E5800-72531 | BELT-FAN & ALT Not Available Price: |
| 17 | DD-02054-50050 | HEX NUT Not Available Price: |
| 18 | DD-04012-50050 | FLAT WASHER Not Available Price: |
