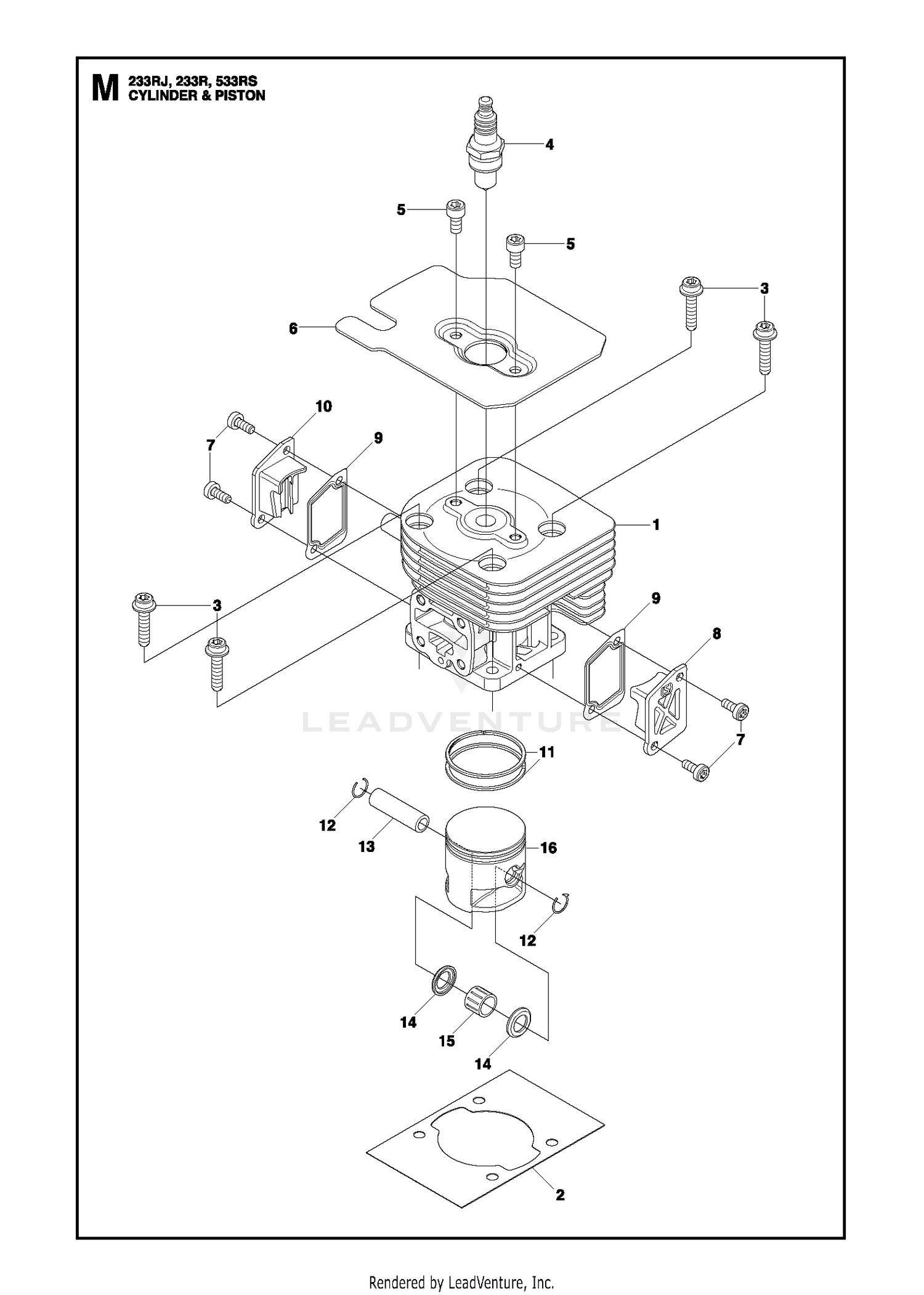

CYLINDER PISTON
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 528073301 | CYLINDER Price: $54.99 |
| 3 | 505040401 | BOLT, TORX Price: $2.99 |
| 4 | 528074001 | SPARK PLUG CMR7H-10 Price: $6.99 |
| 5 | 504119601 | BOLT 08 Price: $2.99 |
| 7 | 504119201 | BOLT Price: $1.99 |
| 8 | 521614501 | COVER, TRS Price: $3.99 |
| 9 | 521614801 | GASKET, TR Price: $3.99 |
| 10 | 521614701 | COVER,TRF (RPLS 848F6012D1) Price: $3.99 |
| 11 | 504120501 | RING This part replaces 521755401. Price: $9.99 |
| 12 | 504120901 | RING Price: $2.99 |
| 13 | 504120601 | PIN Price: $5.99 |
| 14 | 504120201 | WASHER Price: $2.99 |
| 15 | 504120101 | BEARING Price: $9.99 |
| 16 | 528073801 | PISTON Price: $29.99 |
