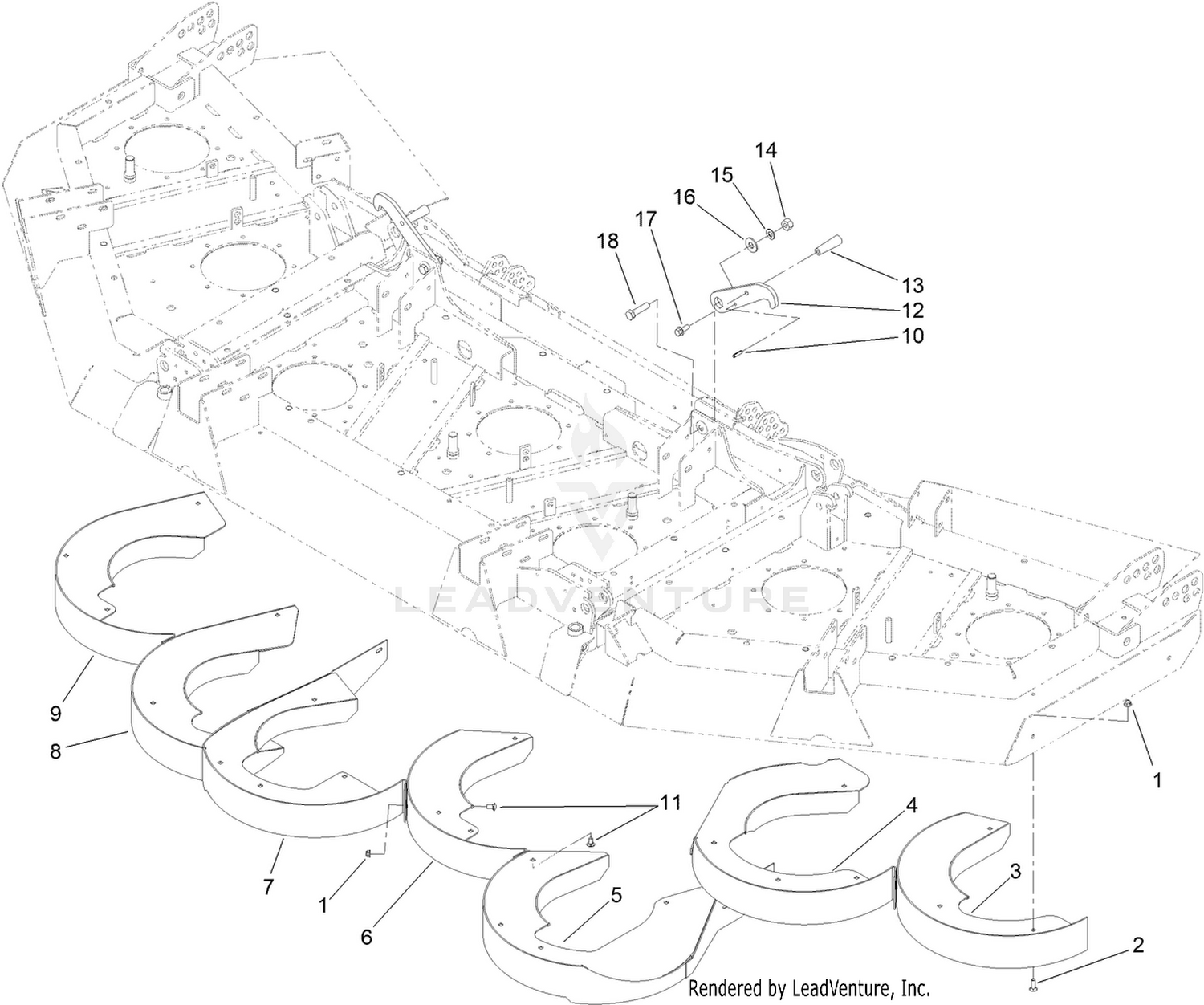

Rear Discharge Baffle Assembly
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 2 | 3230-22 | SCREW-CARR Price: $1.99 |
| 3 | 106-4308-0P | LH OUT CHAMBER ASM Price: $384.23 |
| 4 | 106-4304-0P | LH IN CHAMBER ASM Price: $363.62 |
| 5 | 106-4291-0P | LH CTR CHAMBER ASM Price: $339.00 |
| 6 | 106-4294-0P | CENTER CHAMBER ASM Price: $240.54 |
| 7 | 106-4286-0P | RH CTR CHAMBER ASM Price: $291.20 |
| 8 | 106-4298-0P | RH IN CHAMBER ASM Price: $363.62 |
| 9 | 106-4301-0P | RH OUT CHAMBER ASM Price: $384.23 |
| 10 | 32121-24 | PIN-SPRING Price: $0.95 |
| 11 | 3230-18 | SCREW-CARR Price: $4.09 |
| 12 | 106-4340-01 | LATCH-WING Price: $43.82 |
| 13 | 233-39 | KNOB-CONTROL Price: $16.12 |
| 14 | 3296-25 | NUT-LOCK, NI Price: $1.34 |
| 15 | 3290-483 | WASHER-CONICAL Price: $7.61 |
| 16 | 3256-6 | WASHER-FLAT Price: $0.34 |
| 17 | 3234-11 | SCREW-HHF Price: $1.23 |
