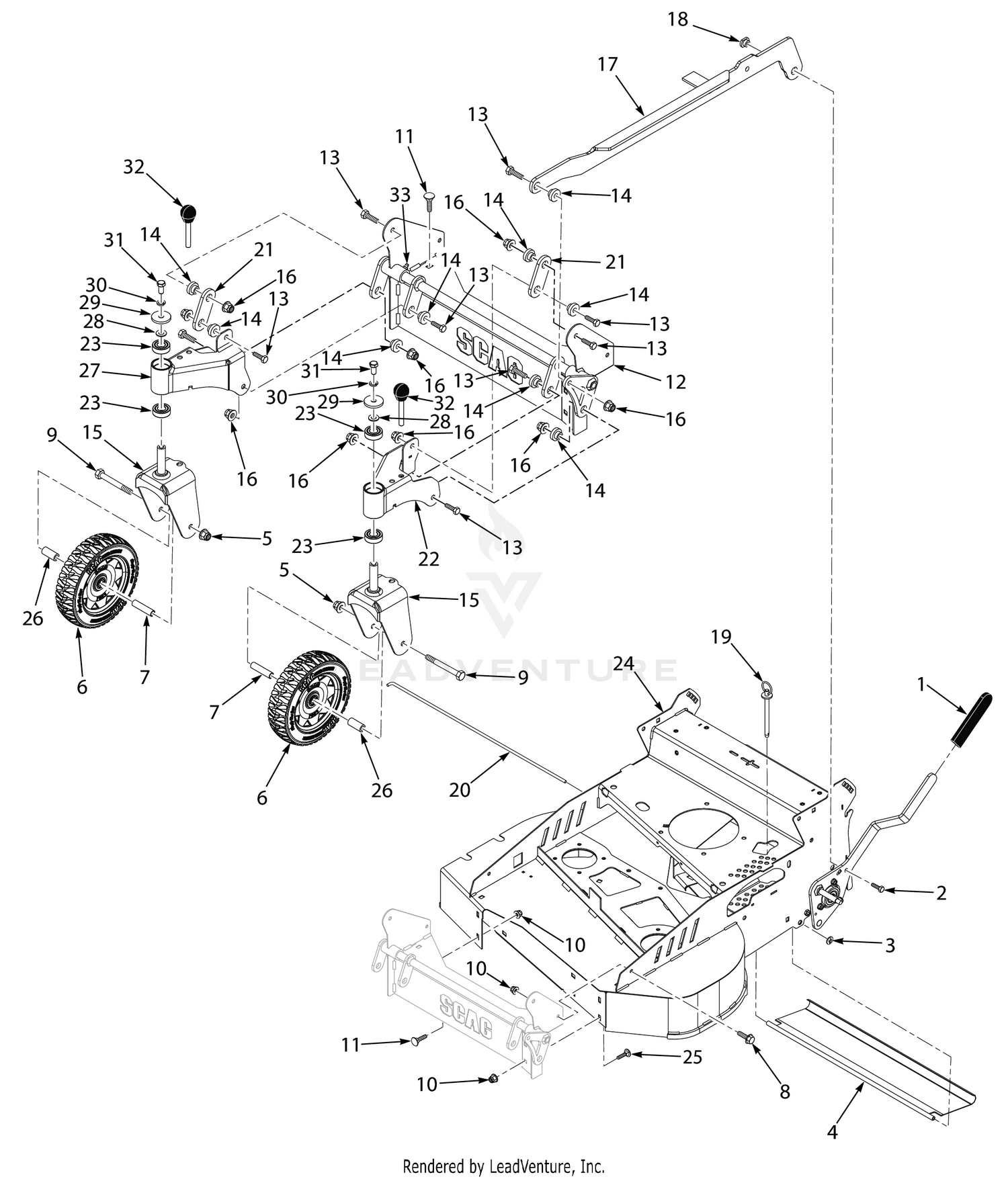

| Ref | Part Number | Description |
|---|
| 1 |
486932 |
Grip, Deck Lift Price: Call Us |
| 2 |
04001-18 |
Bolt, Hex Head, 3/8-16 x 3/4" Price: Call Us |
| 3 |
04024-03 |
Nut, Push-On 5/16-18 Price: Call Us |
| 4 |
463381 |
Trail Shield Price: Call Us |
| 5 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 6 |
486702 |
Wheel Assembly, Front Price: Call Us |
| 7 |
431123 |
Spacer, Front Wheel Price: Call Us |
| 8 |
04017-17 |
Cpscrw, 5/16-18 x 1"Serrated Flange Hex Head Price: Call Us |
| 9 |
04001-30 |
Bolt, Hex Head 3/8-16 x 4.00 Price: Call Us |
| 10 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 11 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 12 |
453284 |
Caster Lift Support Weldment Price: Call Us |
| 13 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 14 |
43086 |
BUSHING, SPEED ADJUSTMENT LEVER Price: Call Us |
| 15 |
453285 |
Yoke Weldment Price: Call Us |
| 16 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 17 |
453283 |
Weldment Deck Lift Price: Call Us |
| 18 |
431125 |
Pivot, Deck Weldment Price: Call Us |
| 19 |
04067-14 |
Ring Pin, 3/8 x 4" Price: Call Us |
| 20 |
44246 |
Rod, Trail Shield Price: Call Us |
| 21 |
428786 |
Bracket, Link Price: Call Us |
| 22 |
453286 |
Yoke Support Weldment, LH Price: Call Us |
| 23 |
48224 |
BEARINGS, BALL, NEUTRAL RETURN Price: Call Us |
| 24 |
463488 |
Cutter Deck w/ Decals Price: Call Us |
| 25 |
04003-04 |
Bolt, Carriage 5/16-18x1" (large frame units only) Price: Call Us |
| 26 |
431047 |
Pivot, Brake Lever Price: Call Us |
| 27 |
453287 |
Yoke Support Weldment, RH Price: Call Us |
| 28 |
04040-05 |
Flatwasher, 3/8 (.406 x .812 x .065) Price: Call Us |
| 29 |
04041-11 |
Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge Price: Call Us |
| 30 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 31 |
04001-18 |
Bolt, Hex Head, 3/8-16 x 3/4" Price: Call Us |
| 32 |
487102 |
Pin Assembly, Swivel Lock Price: Call Us |
