| Ref | Part Number | Description |
|---|
| 1 |
165892 |

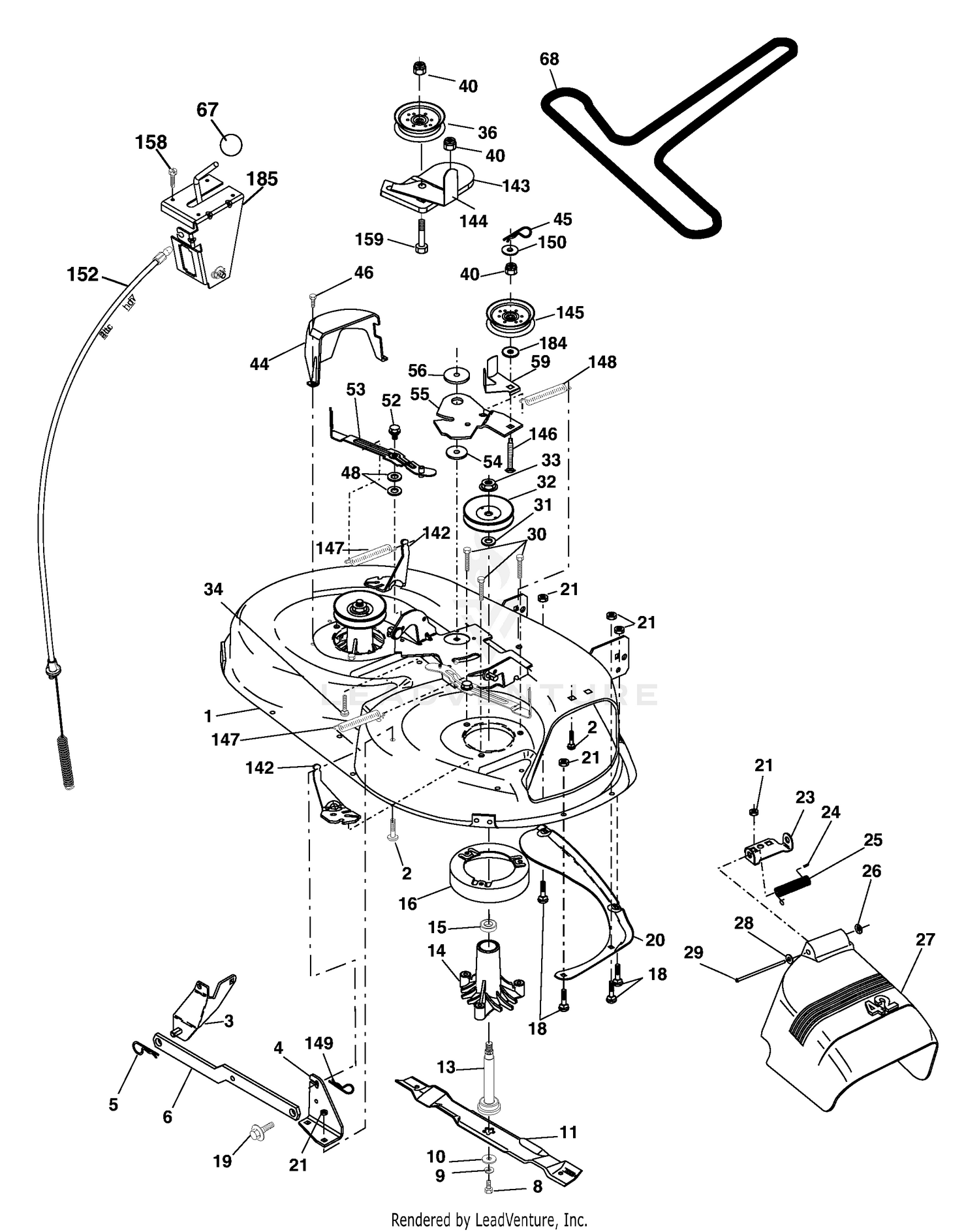

Mower Deck Assembly, 42" Price: Call Us |
| 2 |
72140506 |
Bolt Price: Call Us |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 8 |
850857 |
Bolt 3/8-24 x 1.25 Gr. 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 10 |
108-1402 |
GEAR CASE ASM Price: $859.88 |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 20 |
127-0425 |
PLUG This part replaces 98-9598. Price: $4.34 |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 21 |
73680500 |
Nut Price: Call Us |
| 23 |
108-3841 |
FILTER-OIL This part replaces 104-5167. Price: $10.81 |
| 23 |
177563 |
Bracket, Deflector Mower 42" Price: Call Us |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 30 |
173984 |
Screw Thdrol Price: Call Us |
| 30 |
98-7487 |
PLUG Price: $3.18 |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
153535 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Toplock Price: Call Us |
| 34 |
72110612 |
Bolt Carr SH 3/8-16 x 1-1/2 Gr.5 Price: Call Us |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 40 |
73900600 |
Nut Lock 3/8-16 Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 48 |
133944 |
Washer, Hardened Price: Call Us |
| 50 |
98-9544 |
SPRING Price: $0.94 |
| 52 |
139888 |
Bolt, Shoulder 5/16-18 unc Price: Call Us |
| 53 |
184907 |
Arm Assembly, Pad, Brake Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 59 |
141043 |
Guard TUV Idler Price: Call Us |
| 60 |
98-9543 |
SEAT-VALVE Price: $26.61 |
| 67 |
171598 |
Knob Round Price: Call Us |
| 68 |
144959 |
V-Belt, 42" Mower Price: Call Us |
| 70 |
98-9380 |
BALL Price: $0.84 |
| 80 |
98-9540 |
OIL PUMP ROTOR ASM Price: $271.67 |
| 85 |
107-9069 |
COVER-PUMP, OIL Price: $27.77 |
| 90 |
107-9071 |
SCREW Price: $0.36 |
| 100 |
107-9072 |
PIN-STRAIGHT Price: $0.28 |
| 110 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 120 |
100-1765 |
BOLT This part replaces 107-9073. Price: $1.59 |
| 130 |
105-3797 |
BOLT Price: $1.40 |
| 140 |
98-9356 |
BOLT Price: $2.06 |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
158634 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
165888 |
Pulley Idler Flat Price: Call Us |
| 146 |
171977 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
107-9074 |
BOLT Price: $1.43 |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 152 |
169676 |
Clutch Cable 42" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 Price: Call Us |
| 160 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 170 |
105-3709 |
STUD Price: $1.13 |
| 180 |
98-7572 |
NUT Price: $0.32 |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
| 185 |
188234 |
Head Asm Cable Clutch Price: Call Us |
| 190 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 200 |
119-8038 |
SEAL-OIL This part replaces 98-9482. Price: $40.16 |
| 210 |
105-3710 |
STUD Price: $1.16 |
