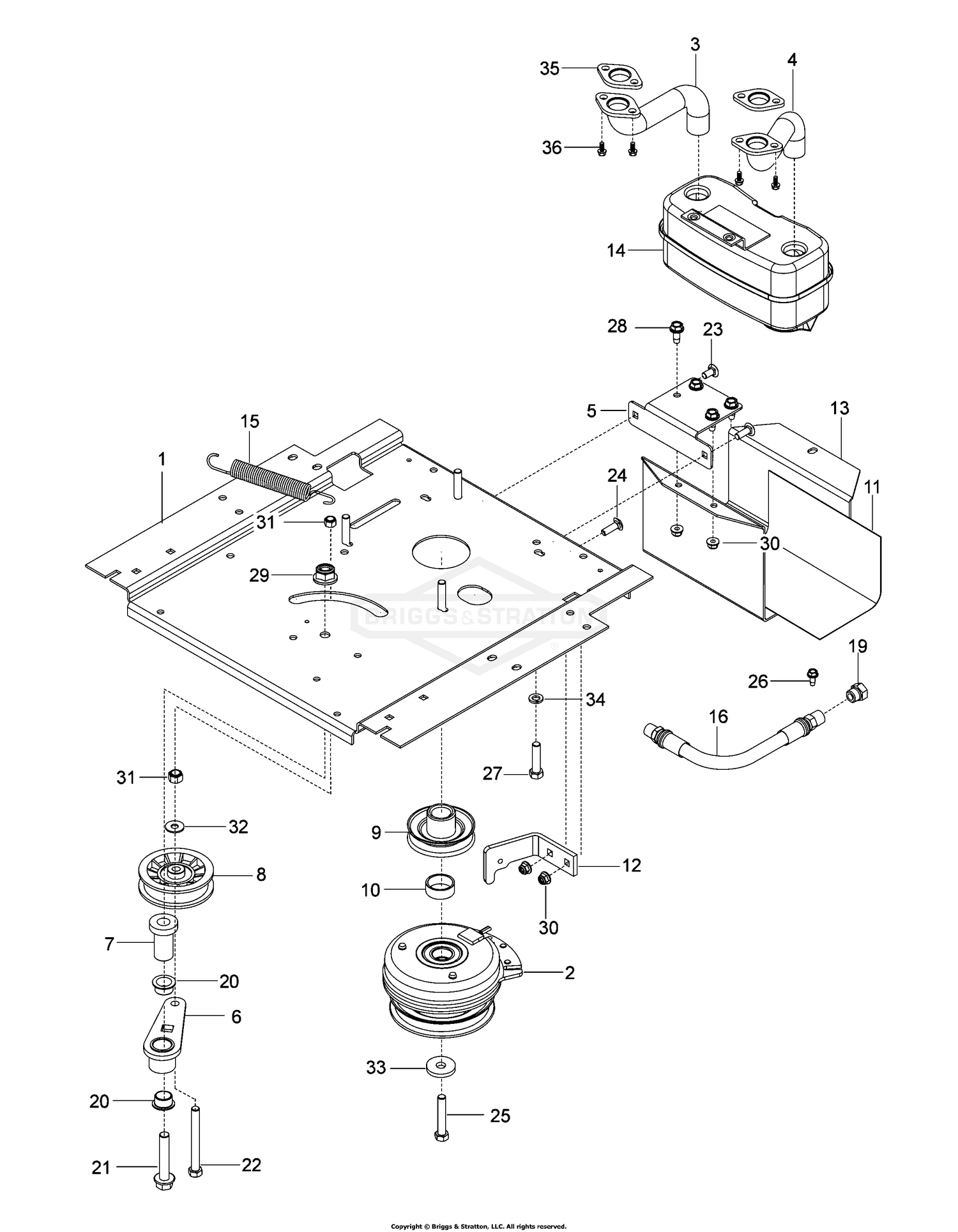

| Ref | Part Number | Description |
|---|
| 2 |
84005744 |
CLUTCH ASSEMBLY Price: $521.72 |
| 3 |
708013 |
PIPE-EXHAUST Price: $35.63 |
| 4 |
708012 |
PIPE-EXHAUST Price: $47.16 |
| 5 |
84005745 |
BRACKET, Muffler Price: $65.99 |
| 6 |
84005746 |
ARM, Idler Price: $31.17 |
| 7 |
84005747 |
SPINDLE Price: $7.59 |
| 8 |
84005748 |
PULLEY, Idler Price: $32.34 |
| 9 |
84005749 |
PULLEY, Crankshaft Price: $46.53 |
| 10 |
84005750 |
SPACER, Clutch Price: $6.99 |
| 11 |
84005751 |
SHIELD, Muffler Price: $77.99 |
| 12 |
84005957 |
BRACKET, Clutch Price: $53.99 |
| 13 |
84005752 |
GUARD, Muffler Price: $59.99 |
| 14 |
84005753 |
MUFFLER ASSEMBLY Price: $96.99 |
| 15 |
708053 |
SPRING Price: $13.29 |
| 16 |
84005754 |
HOSE, Oil Drain Price: $82.99 |
| 19 |
84005755 |
PLUG, Oil Price: Call Us |
| 20 |
84005756 |
BEARING, Flange Price: $7.09 |
| 21 |
84005886 |
CAPSCREW, 1/2-13 X 2-3/4 HEX FLANGE HD Price: $7.09 |
| 22 |
84005887 |
CAPSCREW, 3/8-16 X 3-1/2 HEX HD Price: $7.09 |
| 23 |
84005866 |
BOLT, 5/16-18 X 3/4 GR. 5 ZD Price: $4.49 |
| 24 |
84005888 |
CAPSCREW, 5/16-18 X 1 GR. 5 Price: $6.99 |
| 25 |
84005889 |
CAPSCREW, 7/16-20 X 2-1/2 HEX HD Price: $7.09 |
| 26 |
84005897 |
SCREW,1/4-20 X 5/8 THREAD FORM Price: $6.59 |
| 27 |
84005898 |
CAPSCREW, 5/16-18 X 1-1/2 GR. 5 Price: $6.99 |
| 28 |
705327 |
SCREW, 5/16-18 x 3/4 Thred Roll Price: $6.20 |
| 29 |
84005899 |
LOCKNUT, 1/2-13 HEX FLANGE NYLOC Price: $4.29 |
| 30 |
84005875 |
LOCKNUT, 5/16-18 HEX FLANGE NYLOC Price: Call Us |
| 31 |
84005900 |
LOCKNUT, 3/8-16 HEX NYLOC Price: $6.99 |
| 32 |
84004250 |
Washer 13/32 x 7/8 x 14 Ga. Price: $7.29 |
| 33 |
708571 |
Washer 1-1/2 OD x 15/32 ID x .250 Price: $8.65 |
| 34 |
84005901 |
WASHER, Locking, 3/8 Price: $3.99 |
| 35 |
705028 |
Gasket Price: $26.86 |
