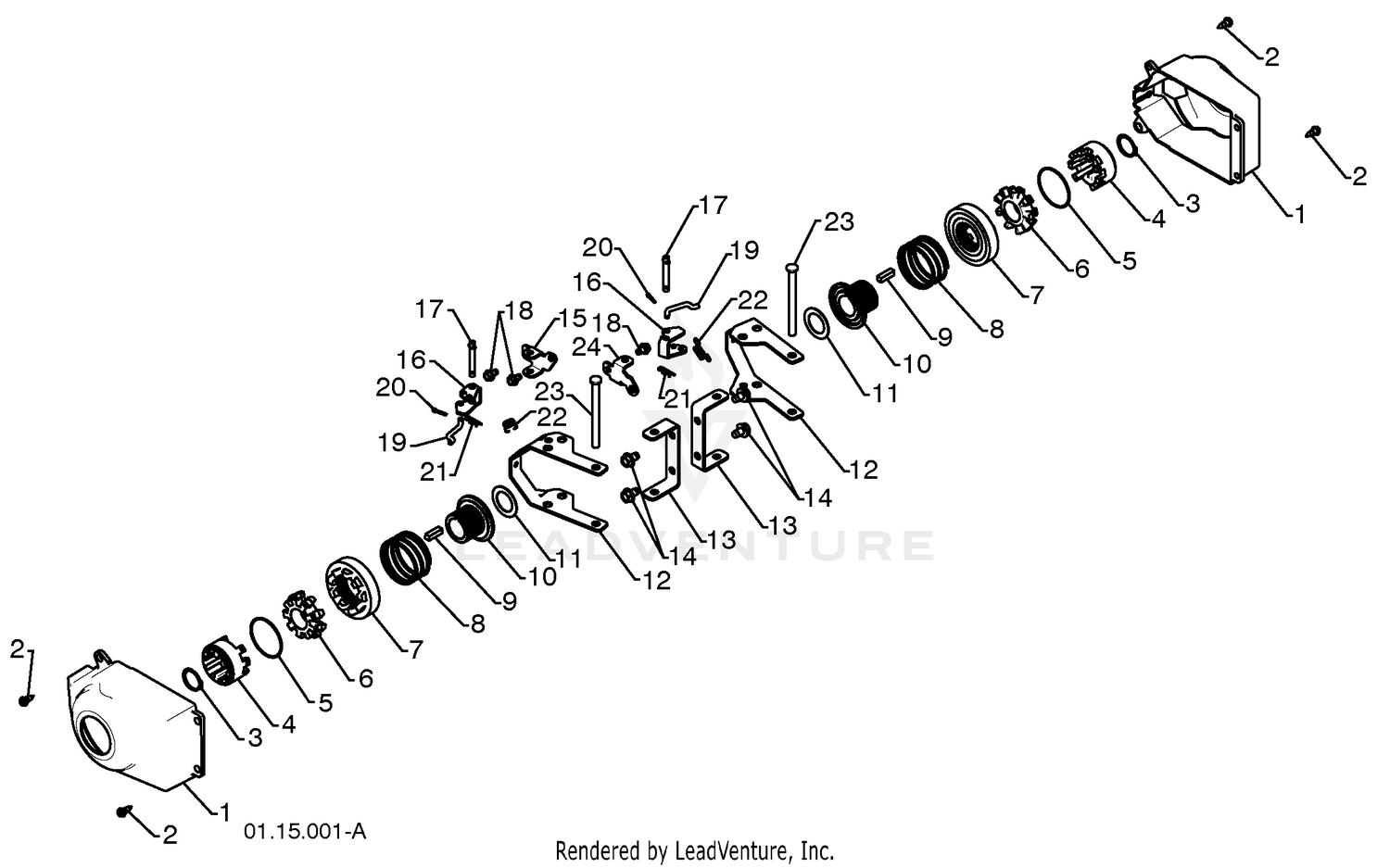

| Ref | Part Number | Description |
|---|
| 1 |
405161 |
COVER Price: Call Us |
| 2 |
184471 |
SHOULDER SCREW Price: Call Us |
| 3 |
12000045 |
RETAINER RING Price: Call Us |
| 4 |
192126 |
WHEEL DRIVER Price: Call Us |
| 5 |
182466 |
RETAINER RING Price: Call Us |
| 6 |
187622 |
WHEEL LOBE Price: Call Us |
| 7 |
194941 |
CLUTCH SLIDE Price: Call Us |
| 8 |
179139 |
SPRING Price: Call Us |
| 9 |
189282 |
SQUARE KEY Price: Call Us |
| 010 |
105-3749 |
WATER PUMP ASM Price: $348.53 |
| 10 |
194940 |
AXLE LOBE Price: Call Us |
| 11 |
174697 |
THRUST WASHER Price: Call Us |
| 12 |
193506X479 |
STEERING YOKE Price: Call Us |
| 13 |
179148X479 |
STEERING BRACKET Price: Call Us |
| 14 |
17490508 |
SCREW 5/16-18 X .50 Price: Call Us |
| 15 |
194943X008 |
PIVOT BRACKET Price: Call Us |
| 16 |
194944X008 |
BELLCRANK Price: Call Us |
| 17 |
181847 |
BELLCRANK PIN Price: Call Us |
| 18 |
17600406 |
SCREW 1/4-20 X .375 Price: Call Us |
| 19 |
405077 |
STEERING LINK Price: Call Us |
| 020 |
99-3516 |
FLANGE-PUMP, WATER Price: $103.23 |
| 20 |
700279 |
RETAINER Price: Call Us |
| 21 |
85179 |
RETAINER Price: Call Us |
| 22 |
193885 |
SPRING Price: Call Us |
| 23 |
182015 |
LEVER PIN Price: Call Us |
| 030 |
99-3517 |
DISCONTINUED Price: Call Us |
| 040 |
105-3750 |
MECHANICAL SEAL ASM Price: $84.06 |
| 050 |
112-8403 |
IMPELLER ASM This part replaces 99-3519. Price: $156.50 |
| 060 |
100-1932 |
PIPE-RETURN, WATER This part replaces 105-3751. Price: $8.45 |
| 070 |
99-3454 |
GASKET-PUMP, WATER Price: $12.90 |
| 080 |
98-9353 |
BOLT Price: $0.76 |
| 090 |
98-9357 |
BOLT Price: $2.46 |
| 100 |
105-3752 |
PIPE-WATER Price: $85.06 |
| 110 |
98-9574 |
PIPE-WATER Price: $17.67 |
