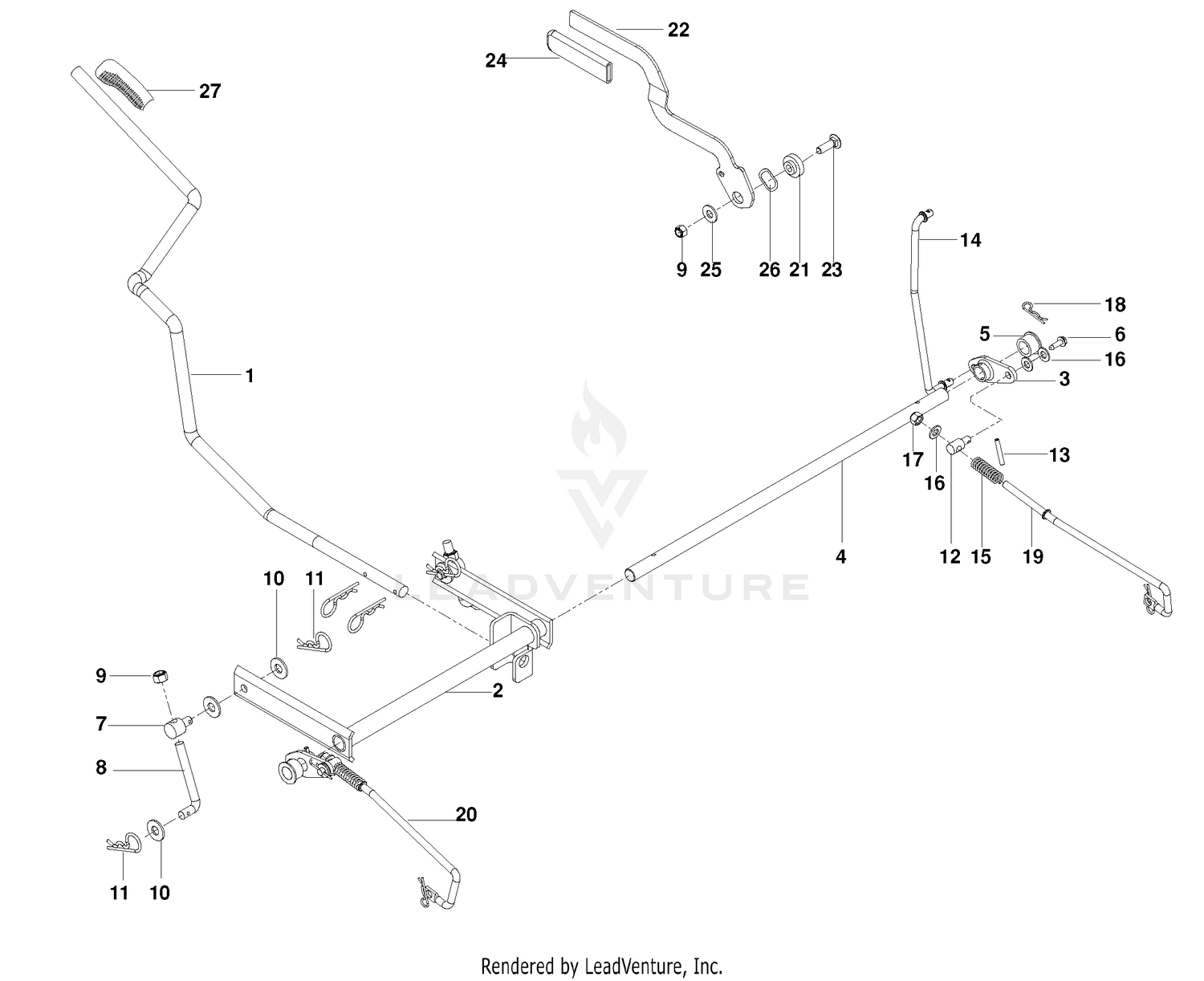

| Ref | Part Number | Description |
|---|
| 1 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 1 |
525580402 |
ARM, LIFT HANDLE, BLK Price: $37.99 |
| 2 |
282-4 |
SHACKLE Price: $32.98 |
| 2 |
574356802 |
SHAFT, LIFT WLDMT, BLACK Price: $84.99 |
| 3 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 3 |
525580201 |
BELLCRANK, BRAKE Price: $44.99 |
| 4 |
574356601 |
ROD, BRAKE Price: $24.99 |
| 4 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 5 |
32151-48 |
E-RING Price: $1.41 |
| 5 |
539109368 |
PLASTIC BUSHING Price: $3.99 |
| 6 |
596584001 |
Screws This part replaces 539991034. Price: $2.99 |
| 6 |
75-4690-03 |
R/H RR SPRING BRKT ASM This part replaces 75-4690. Price: $66.55 |
| 7 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 7 |
539118179 |
SWIVEL Price: $11.99 |
| 8 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 8 |
539115247 |
L ROD 3-1/8" Price: $7.99 |
| 9 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 9 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 10 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 10 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 11 |
596273101 |
Pins This part replaces 539976989. Price: $2.99 |
| 11 |
75-3810-01 |
BRACKET-ROLLER ASM This part replaces 75-3810. Price: $64.51 |
| 12 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 12 |
539112308 |
BRAKE SWIVEL Price: $8.99 |
| 13 |
539101082 |
ROLL PIN 3/16 X 1-1/4 ZD Price: $2.99 |
| 13 |
75-5400 |
PIN-ROLLER Price: $26.06 |
| 14 |
525735701 |
LINKAGE, BRAKE, UPPER Price: $7.99 |
| 14 |
75-5390 |
ROLLER Price: $56.69 |
| 15 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 15 |
539101224 |
SPRING Price: $19.99 |
| 16 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 16 |
75-6180 |
HOSE Price: $72.14 |
| 17 |
237-78 |
O-RING Price: $3.85 |
| 17 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 18 |
237-21 |
O-RING Price: $0.70 |
| 18 |
596580601 |
Pins This part replaces 539976988. Price: $3.99 |
| 19 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 19 |
525583601 |
LINKAGE, EZT BRAKE RT Price: $22.99 |
| 20 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 20 |
525583701 |
LINKAGE, EZT BRAKE LT Price: $7.99 |
| 21 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 21 |
539120220 |
BRAKE ARM PIVOT Price: $19.99 |
| 22 |
525485602 |
HANDLE, BRAKE, BLK Price: $22.99 |
| 22 |
75-5350 |
PIN-SLIDE, CYLINDER Price: $41.31 |
| 23 |
539100413 |
RHSNB 3/8-16 X 1-1/4 Price: $2.99 |
| 23 |
75-5440 |
ARM WA - LIFT, RH REAR Price: $725.89 |
| 24 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 24 |
539120921 |
GRIP BRAKE HANDLE Price: $11.99 |
| 25 |
596581701 |
Washers This part replaces 539102843. Price: $2.99 |
| 25 |
67-1750 |
BUSHING Price: $0.92 |
| 26 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 26 |
539133007 |
WASHER, .825 X 1.087, WAVE Price: $2.99 |
| 27 |
5-1096 |
CHAIN-LIFT Price: $18.82 |
| 28 |
75-4590-03 |
ROD-PIVOT ASM This part replaces 75-4590. Price: $64.42 |
| 29 |
75-4520 |
SPRING-TORSION, RH Price: $25.31 |
| 30 |
256-287 |
BUSHING Price: $1.76 |
| 31 |
110-0009 |
JOINT ARM ASM This part replaces 75-3010. Price: $199.32 |
| 32 |
32121-122 |
PIN-ROLL Price: $2.93 |
| 33 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 34 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 35 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 36 |
325-4 |
SCREW-HH Price: $0.95 |
| 37 |
55-4300 |
DECAL-WARNING Price: $13.99 |
| 38 |
75-3750 |
PIN WA - REAR *B Price: $165.55 |
| 39 |
75-5360 |
PIN-CYLINDER Price: $72.33 |
| 40 |
163-3535 |
CYLINDER-HYDRAULIC This part replaces 85-9880. Price: $582.35 |
| 41 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 42 |
75-5330 |
CLAMP- HOSE Price: $31.69 |
| 43 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 44 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 45 |
3290-379 |
TIE-CABLE Price: $0.31 |
