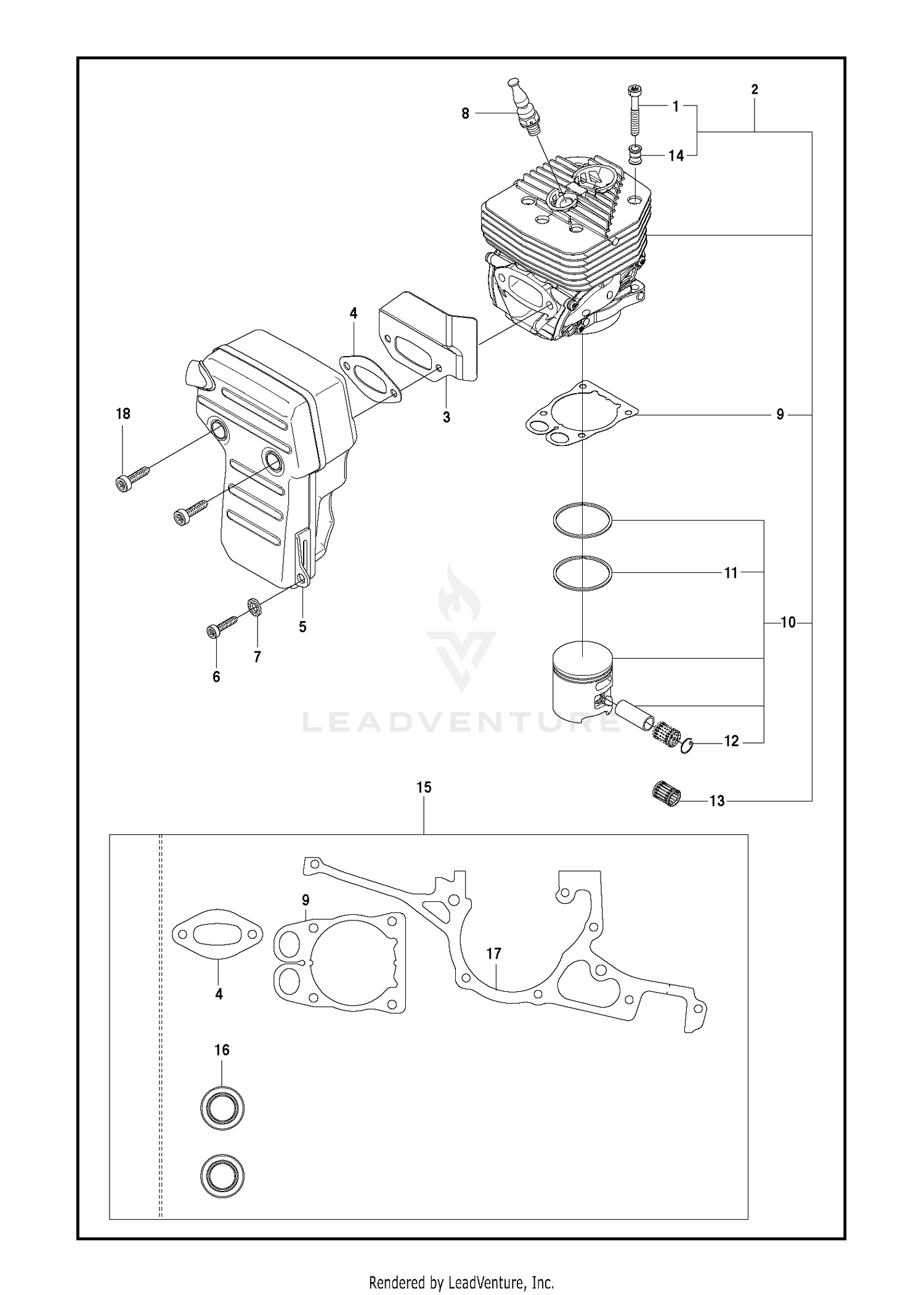

CYLINDER, PISTON & MUFFLER
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 544218440 | SCREW ITXSCM M6X40/25 T27 12. Price: $3.99 |
| 3 | 577997602 | HEAT DEFLECTOR Price: $9.99 |
| 5 | 587631101 | MUFFLER ASSY Price: $69.99 |
| 6 | 503215325 | SCREW Price: $3.99 |
| 7 | 503230402 | DOUBLE WASHER Price: $5.99 |
| 8 | 584912201 | DECOMPRESSION VALVE K970II TOP Price: $37.99 |
| 11 | 503289035 | PISTON RING Price: $14.99 |
| 12 | 737441300 | CLIP Price: $1.99 |
| 13 | 503256101 | SUPPORT BUSHING Price: $22.99 |
| 14 | 578119101 | SLEEVE CYLINDER Price: $4.99 |
| 16 | 503260204 | SEALING RING Price: $11.99 |
| 17 | 577988901 | GASKET CRANKCASE K970 Price: $11.99 |
| 18 | 544218401 | SCREW Price: $3.99 |
