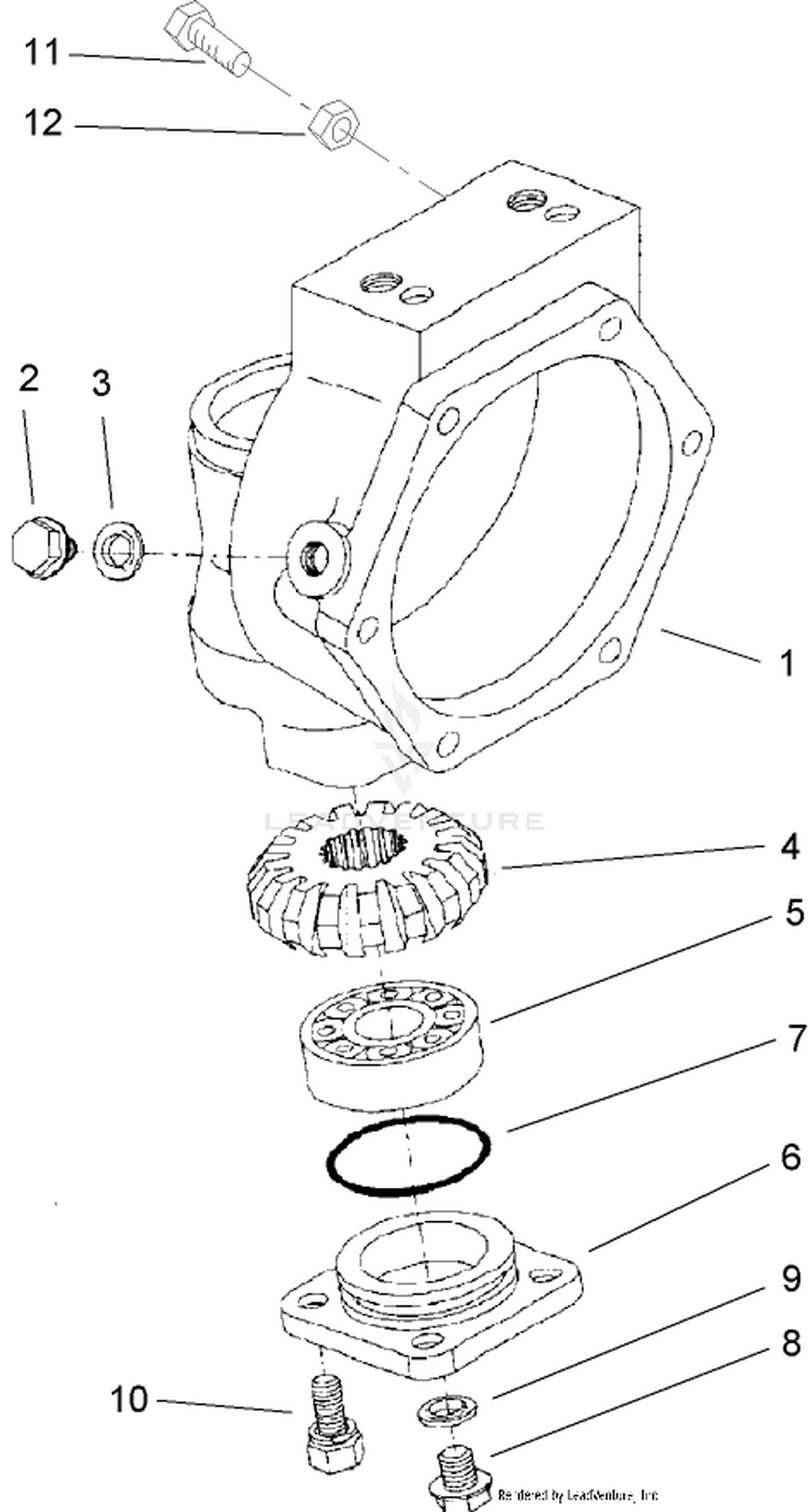

Axle Case Assembly Rear Axle Assembly No. 100-3784
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-4817 | KIT - AXLE HOUSING This part replaces 95-7531. Price: $657.17 |
| 2 | 99-7535 | PLUG Price: $8.15 |
| 3 | 99-7536 | WASHER-SEAL Price: $2.58 |
| 4 | 95-7527 | GEAR-BEVEL, 17 TOOTH Price: $125.54 |
| 5 | 99-7532 | BEARING-ROLLER, TAPER Price: $45.81 |
| 6 | 100-2560 | COVER Price: $28.35 |
| 7 | 106-1070 | O-RING This part replaces 100-2561. Price: $9.07 |
| 8 | 99-7589 | PLUG Price: $3.73 |
| 9 | 99-7590 | WASHER-SEAL Price: $2.94 |
| 10 | 100-2562 | BOLT Price: $2.79 |
| 11 | 106-1102 | BOLT-STOP Price: $22.71 |
