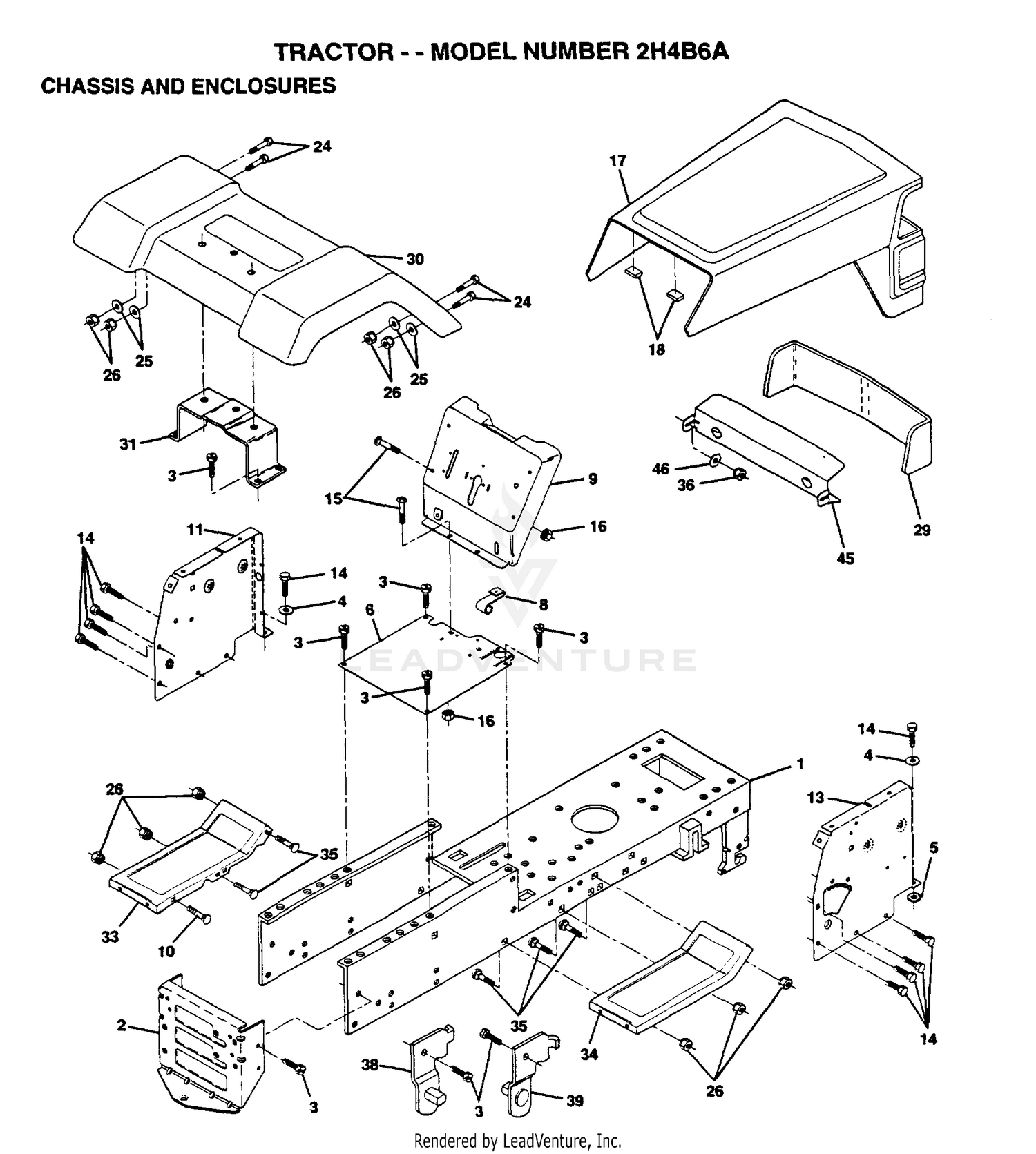

CHASSIS AND ENCLOSURES
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 1 | 140341 | SUB= 145501 Price: Call Us |
| 2 | 108-2792 | RUBBER DEFLECTOR ASM Price: $217.99 |
| 2 | 140356 | SUB= 145009 Price: Call Us |
| 3 | 110-6385-03 | BRACKET-GEARBOX, RH Price: $61.81 |
| 3 | 17490612 | SCREW Price: Call Us |
| 4 | 19131216 | WASHER Price: Call Us |
| 4 | 63-9750 | MOUNT Price: $18.92 |
| 5 | 105-4622 | SPACER Price: $9.99 |
| 5 | 11050600 | LOCKWASHER Price: Call Us |
| 6 | 108-4052 | SPRING-TORSION Price: $23.99 |
| 6 | 145206 | SUB= 145206X431 Price: Call Us |
| 9 | 140637X011 | DASH SILKSCRN 1 Price: Call Us |
| 9 | 63-8410 | WASHER Price: $1.76 |
| 10 | 3231-26 | SCREW-CARR Price: $0.86 |
| 10 | 72140608 | SUB= 72110608 Price: Call Us |
| 11 | 112-9557 | SCREW-HH Price: $3.94 |
| 11 | 135464 | DASH PANEL LH Price: Call Us |
| 13 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 13 | 124031X012 | SUB= 155934X010 Price: Call Us |
| 14 | 110-6384-03 | BRACKET-GEARBOX, LH Price: $61.81 |
| 14 | 17490608 | SCREW LT Price: Call Us |
| 15 | 74180512 | SCREW Price: Call Us |
| 16 | 73510500 | NUT Price: Call Us |
| 17 | 112-9559 | GROMMET Price: $5.38 |
| 17 | 133956X505 | HOOD/GRILL ASM Price: Call Us |
| 18 | 126938X | SUB= 532126938 Price: Call Us |
| 19 | 93-6687 | DECAL-NO STEP Price: $14.45 |
| 20 | 112-1455-03 | COVER-DECK, LH Price: $77.36 |
| 21 | 112-1456-03 | COVER-DECK, RH Price: $64.83 |
| 24 | 74780616 | BOLT Price: Call Us |
| 25 | 130-8659 | GEARBOX ASM This part replaces 110-6386-03. Price: $843.83 |
| 25 | 19131312 | WASHER Price: Call Us |
| 26 | 323-4 | SCREW-HH Price: $1.02 |
| 26 | 73800600 | NUT Price: Call Us |
| 29 | 133805 | SUB= 133954 Price: Call Us |
| 30 | 140001X505 | FENDER PNT LT Price: Call Us |
| 30 | 23-1640 | BUSHING-TAPERLOCK Price: $68.50 |
| 31 | 136619 | BRKT FENDER Price: Call Us |
| 31 | 3257-5 | KEY-WOODRUFF Price: $5.13 |
| 32 | 3253-21 | WASHER-LOCK Price: $0.28 |
| 33 | 105476X505 | FOOTREST LH Price: Call Us |
| 34 | 105475X505 | FOOTREST RH Price: Call Us |
| 35 | 72110606 | BOLT Price: Call Us |
| 36 | 106-2240 | KNOB Price: $12.99 |
| 36 | 108067X | PAL NUT LT Price: Call Us |
| 37 | 110-3510 | NUT-RETAINER Price: $5.77 |
| 38 | 139886 | BRACKET ASM LH Price: Call Us |
| 39 | 139887 | BRACKET ASM RH Price: Call Us |
| 39 | 93-6697 | DECAL-LUBE Price: $11.38 |
| 45 | 132257 | SUB= 918132257 Price: Call Us |
| 46 | 127316X | RETAINER Price: Call Us |
