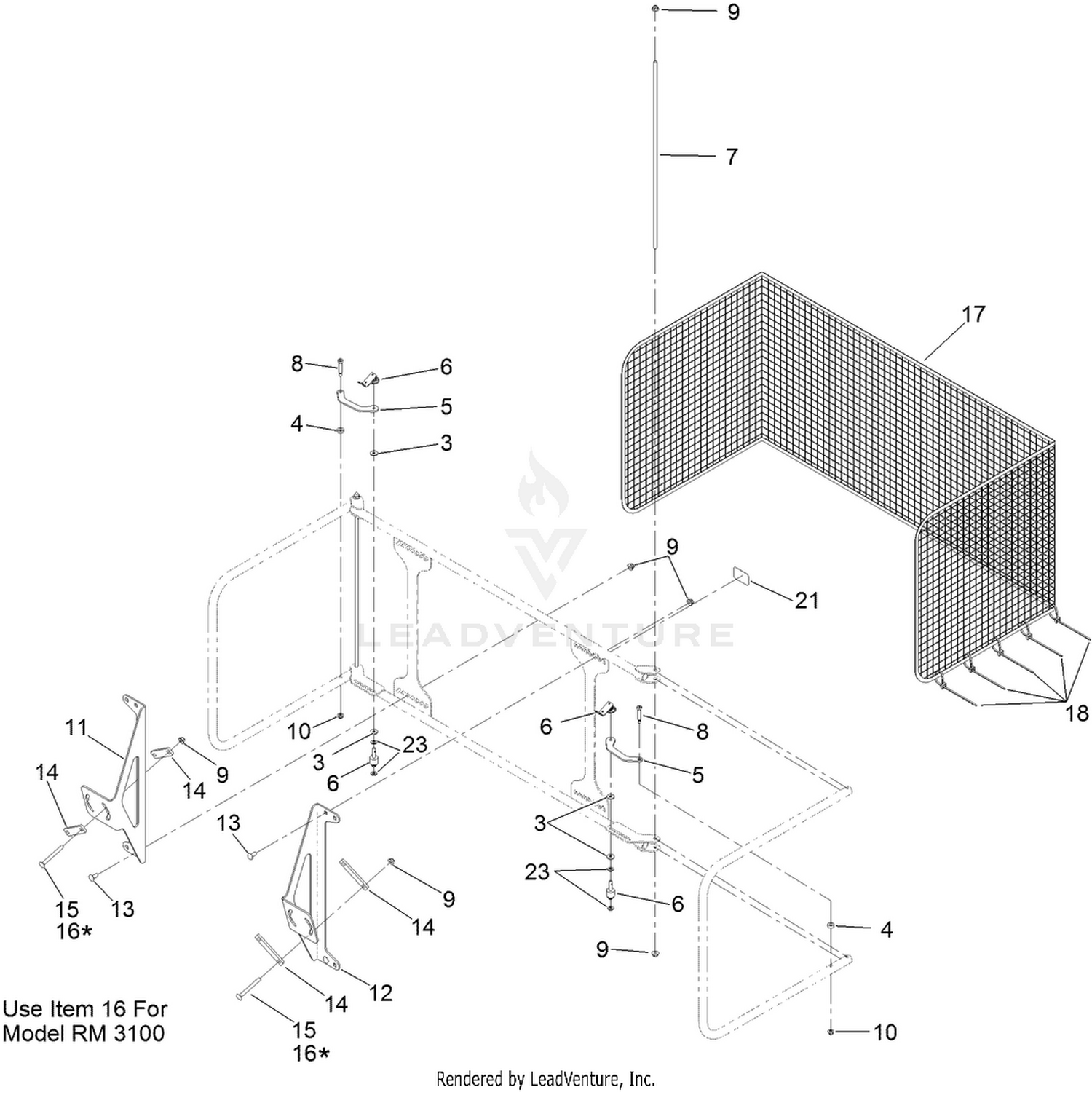

Operator Golf Ball Shield Assembly
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 136-2132 | WASHER-RUBBER Price: $2.92 |
| 4 | 136-1788 | SPACER Price: $6.79 |
| 5 | 136-1787 | ARM-LINK Price: $180.08 |
| 6 | 136-1778 | ANCHOR-EXPANSION Price: $28.01 |
| 7 | 136-1777 | SHAFT-PIVOT Price: $325.79 |
| 8 | 136-1789 | BOLT-SHOULDER Price: $23.07 |
| 9 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 10 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 11 | 136-2128 | BRACKET-MOUNTING, TWO Price: $530.32 |
| 12 | 136-2127 | BRACKET-MOUNTING, ONE Price: $491.75 |
| 13 | 3231-27 | SCREW-CARR Price: $0.54 |
| 14 | 136-1792 | STRAP-MOUNT Price: $89.82 |
| 15 | 9000779 | BOLT-CARR Price: $1.79 |
| 16 | 3231-11 | SCREW-CARR Price: $4.09 |
| 17 | 136-1793 | NETTING Price: $379.60 |
| 18 | 3290-378 | TIE-CABLE Price: $0.79 |
| 21 | 98-3206 | DECAL Price: $1.99 |
